Kingpin™ F-Series 40" Light Kit
- One F-Series 40" light, white and red
- Search Mounts, so it turns 360°
- Rotary Dimmer and 30 ft of wire included
- Power it from your own 12V, or add ours
Search Mounts
in one light
IP54
warranty

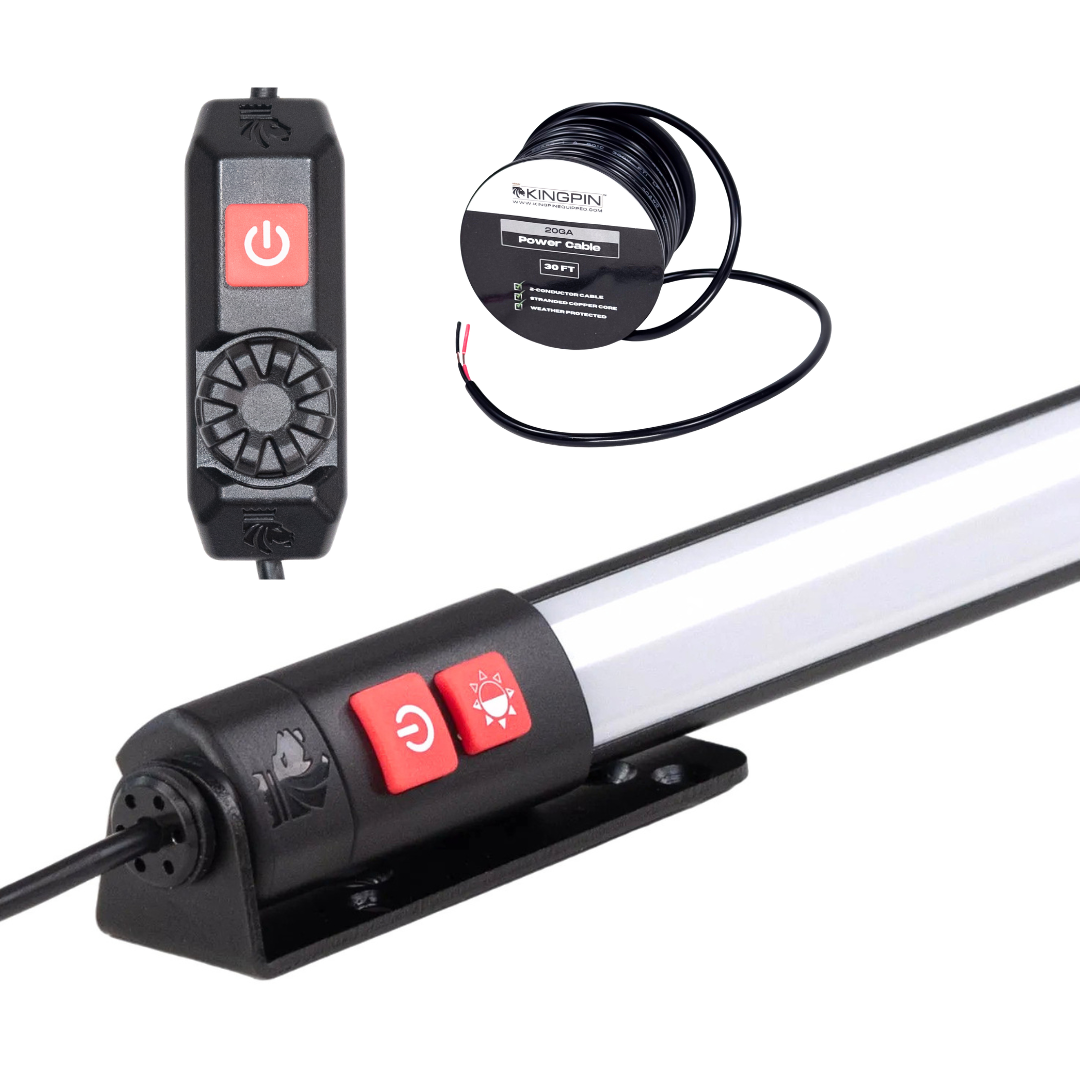

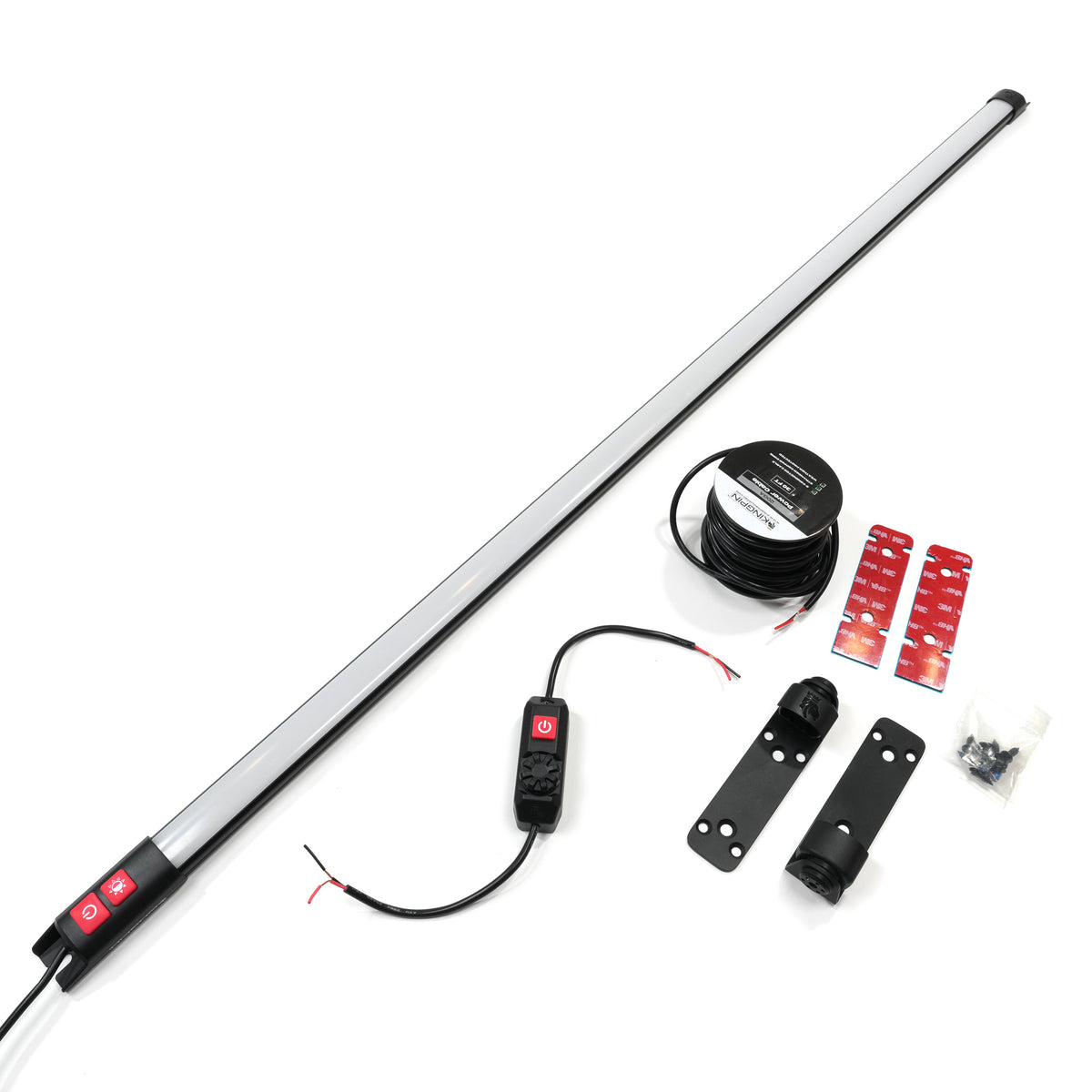

What's in the kit, and what you'll need
Ready to wire

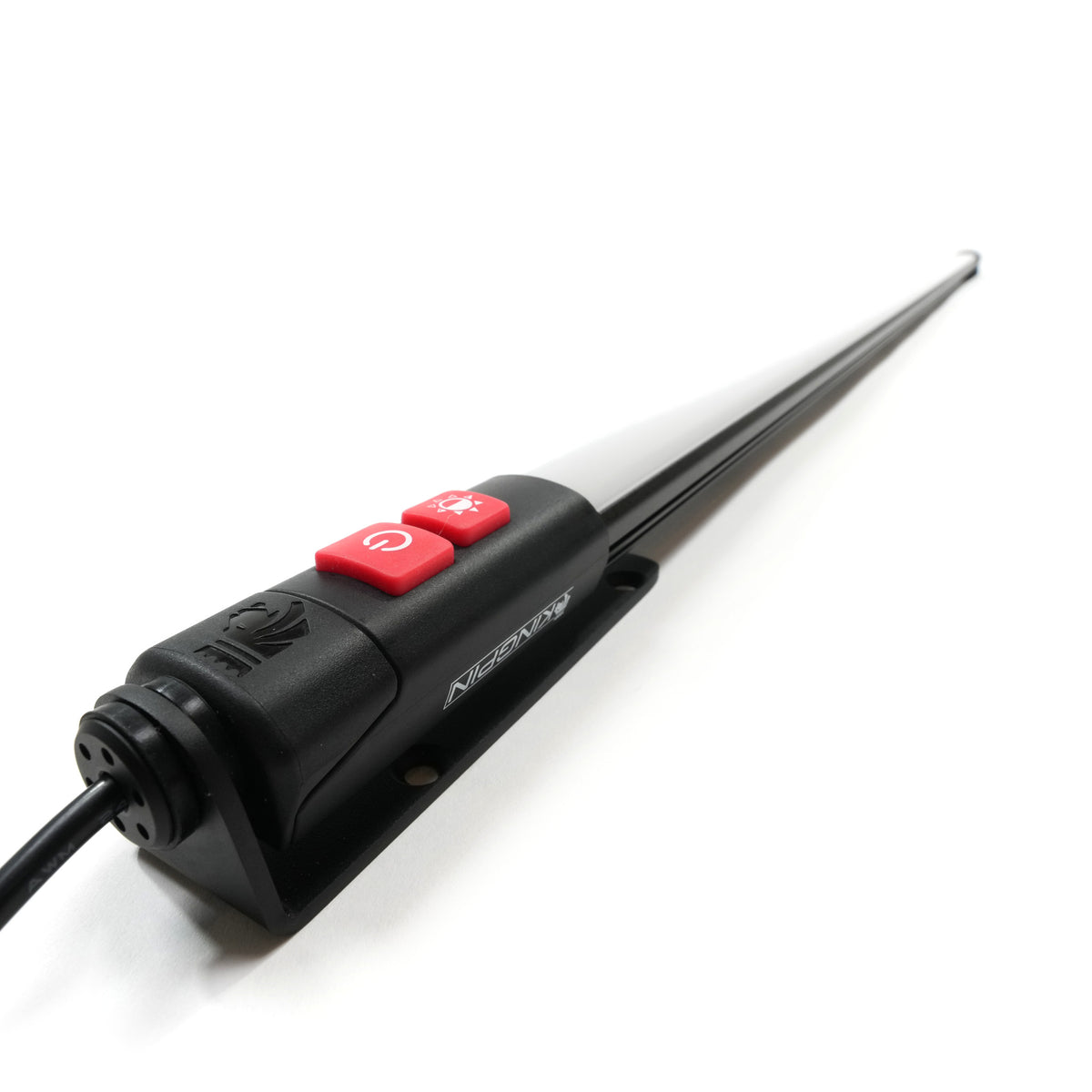

- 1× F-Series 40" Light
- 1 set of Search Mounts
- 1× Rotary Dimmer Switch

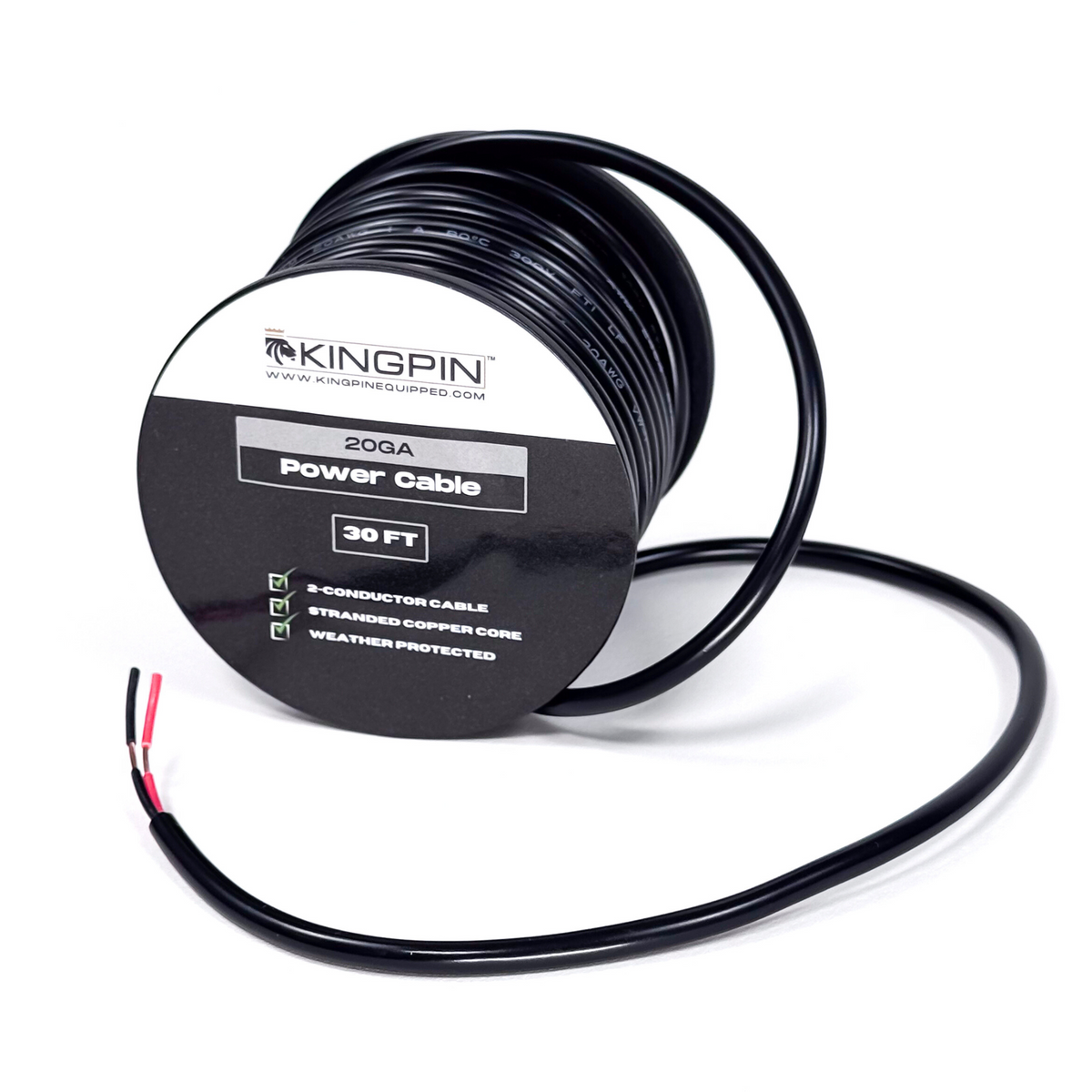

- 30 ft Power Cable, 20 AWG
One light, one dimmer
- The dimmer has room for 1 more 40" light (3 amps max)
- Needs 12V power: your own fused feed, the Power Supply Kit, or the AC Power Supply
A few basics
- Wire strippers and connectors for 20 AWG wire
- Wire routing supplies
- A 12V power source
White
4000K neutral white. See your gear, load up, work late.

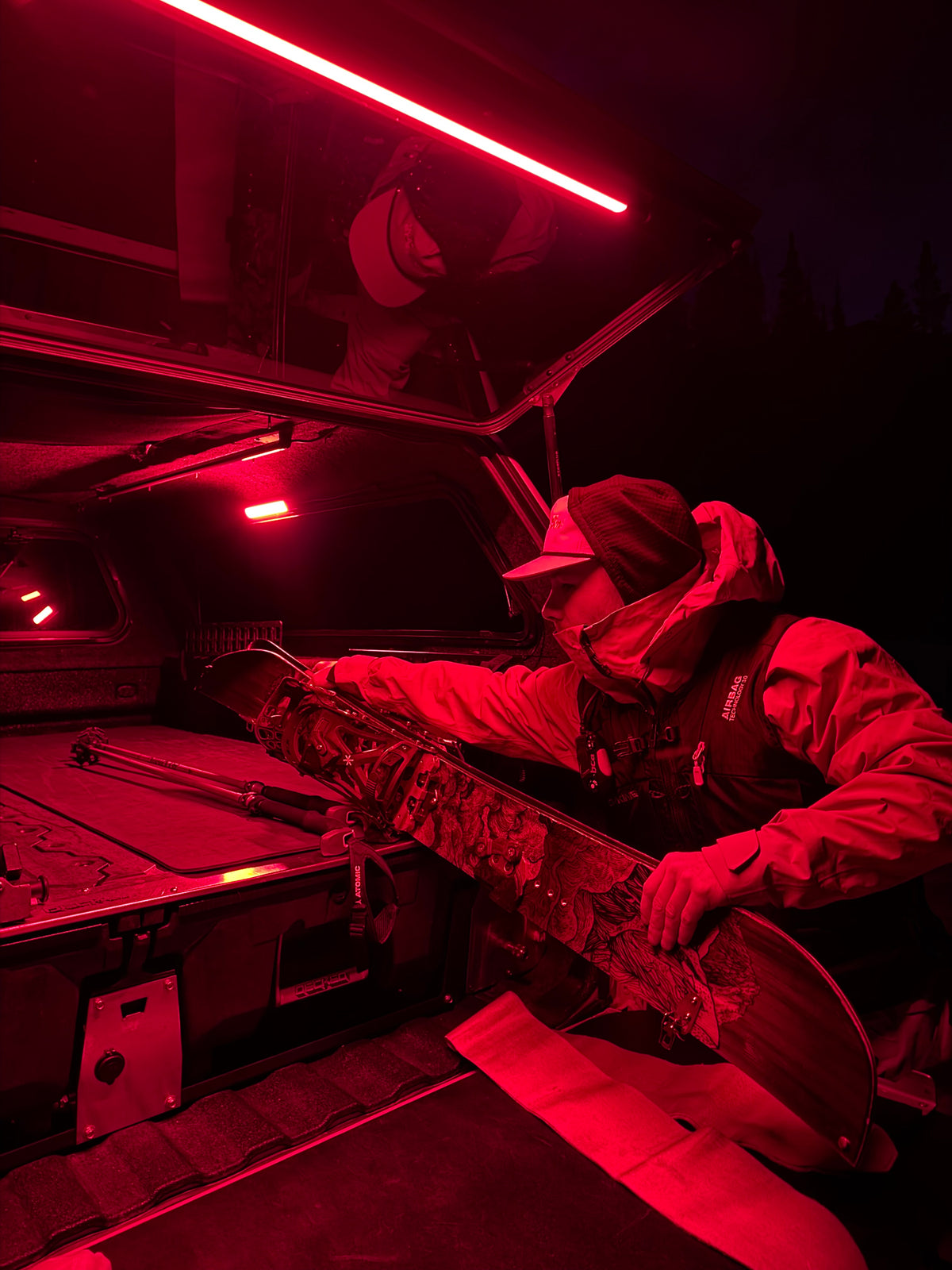

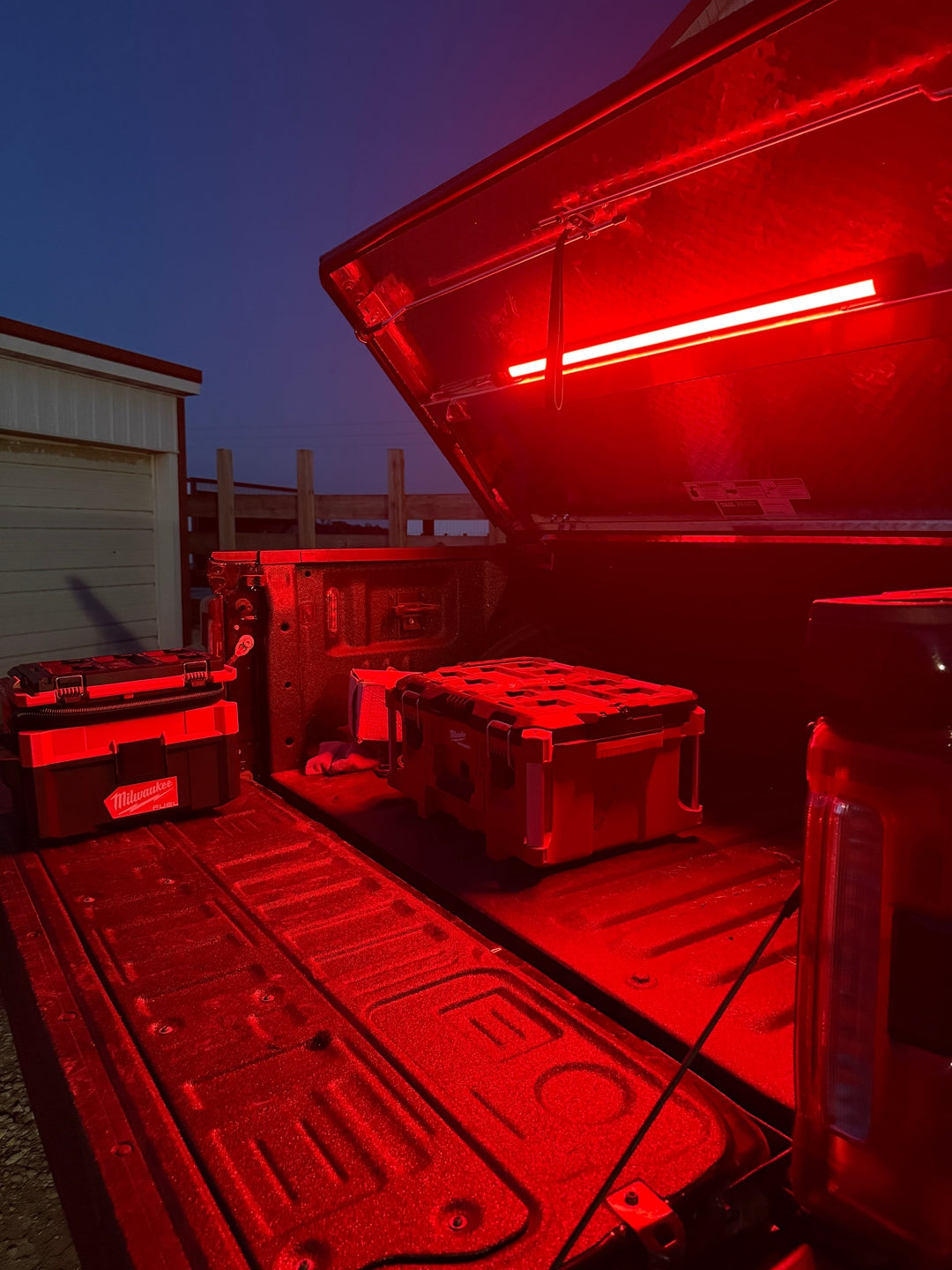

Red
Easy on your night vision. Camp, hunt, and late nights.
Your pick:Set white or red as the start-up color. Press power and it comes on in that color every time.
Bright, not blinding
Every Kingpin light has a thick, diffused lens. It spreads the light out into one smooth, even glow, and protects the light from hard knocks.
- No bright hot spots. The whole bar glows evenly.
- No harsh glare, so it's comfortable to look at, even up close.
- Soft, even light on your gear, with fewer hard shadows.
“I hunt at night a lot and the red light is bright enough to get everything I need without blowing my night vision.”
“Love the lights. Went with 3 F-series 40” lights, rear hatch light on F-series search mounts, all on dimmer switches. Lights up the shell, & beyond when needed. Very happy.”
“Good quality, good light, dimmable-worth the money. Easy to install.”

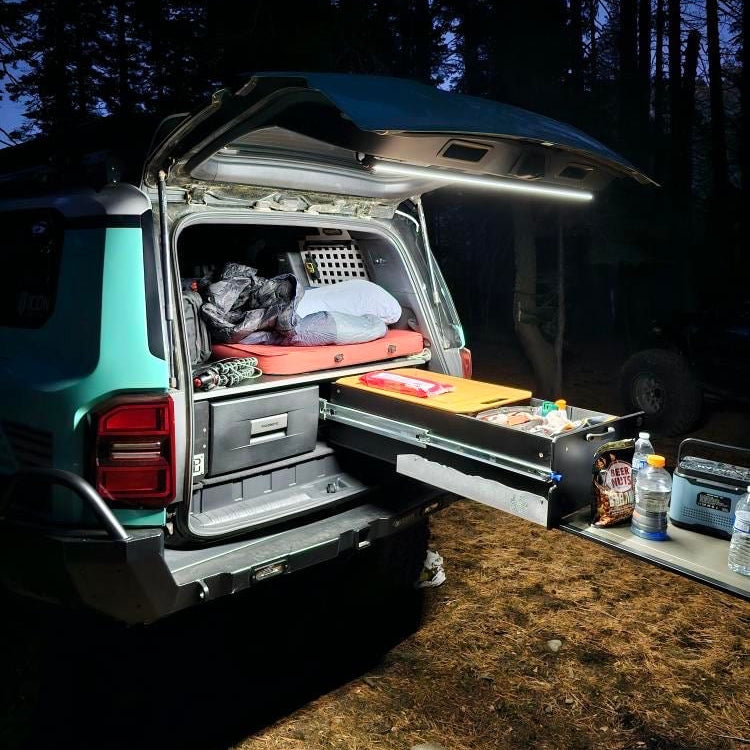

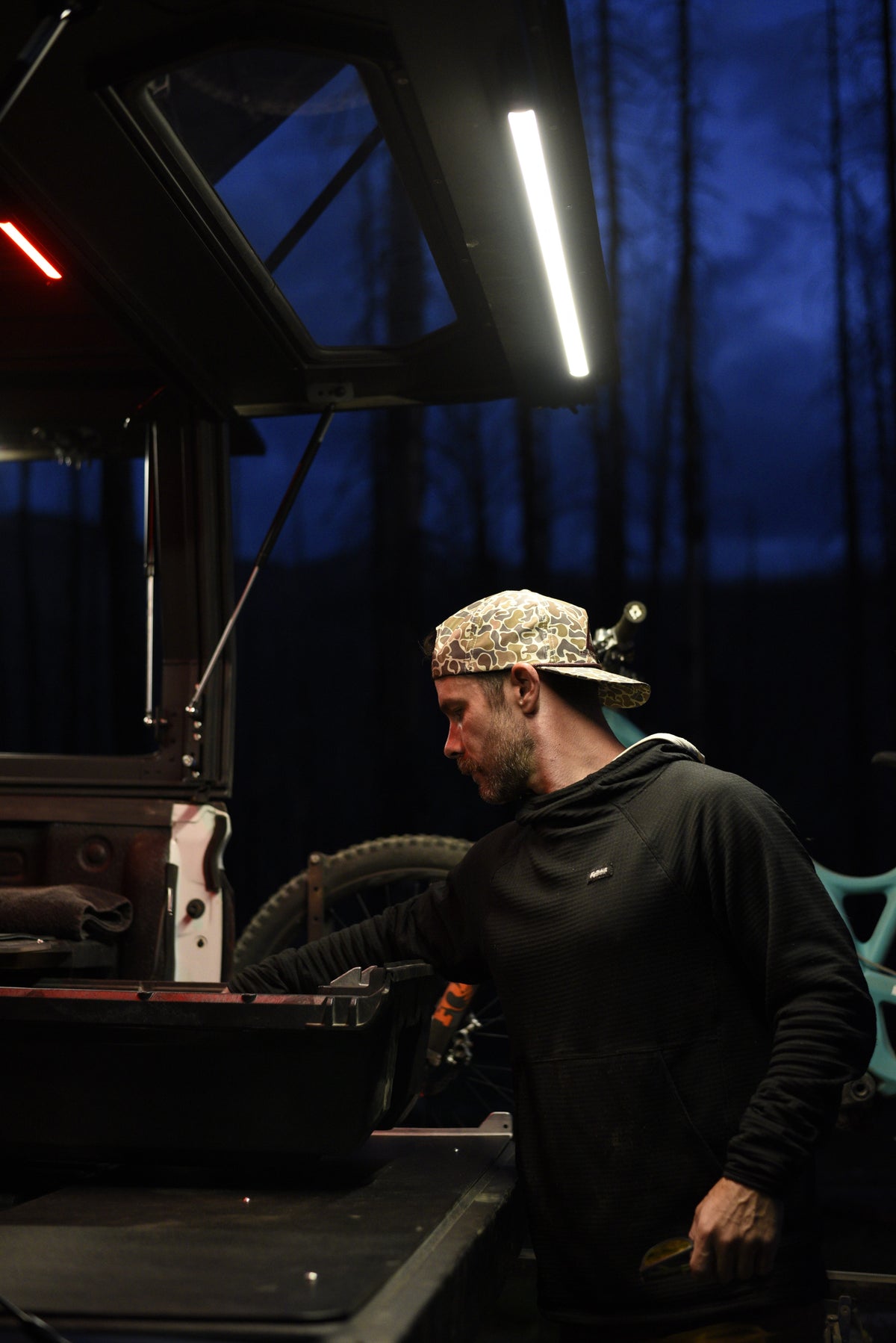

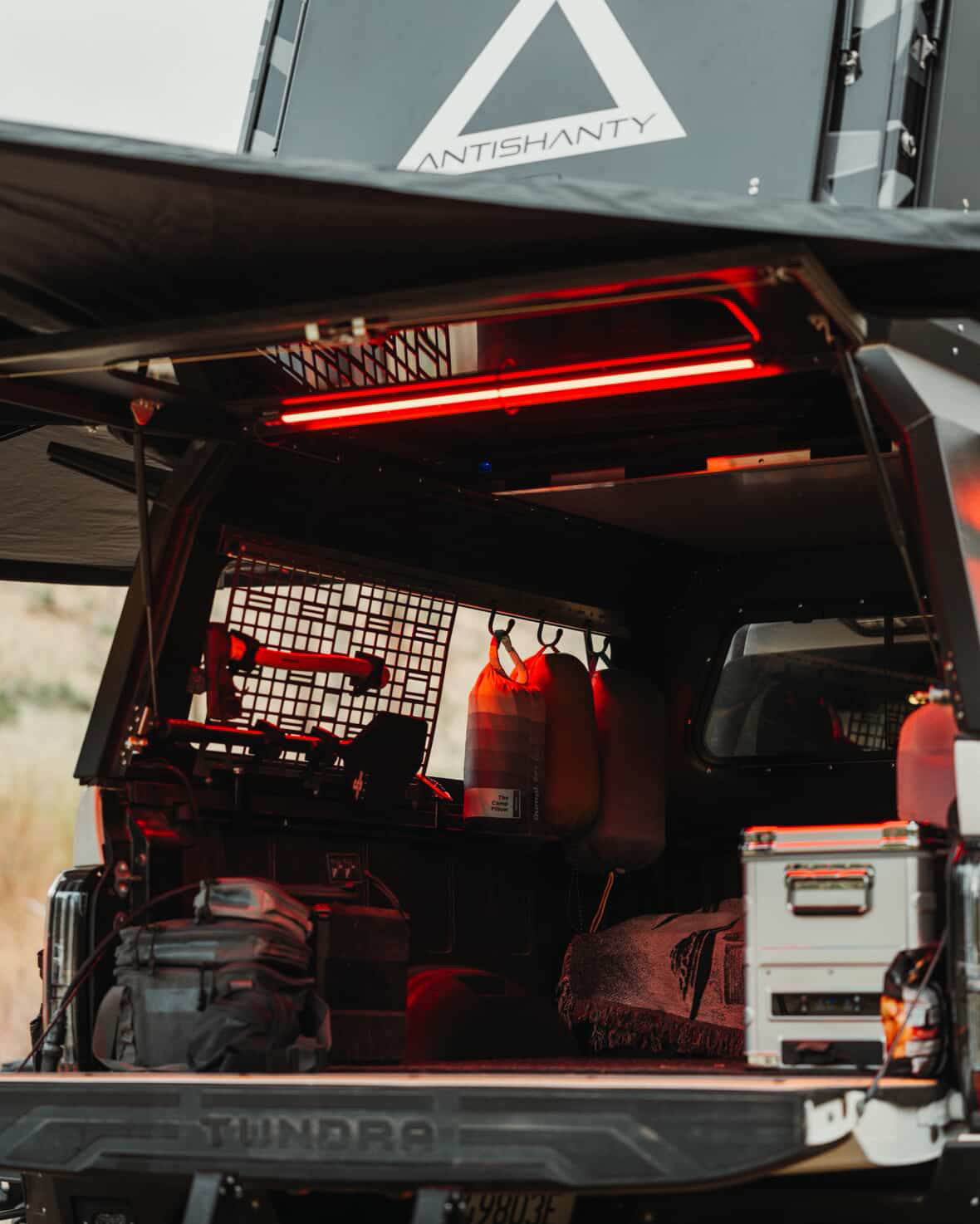

Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.
Trailers & toy haulers
Mount it where you load and unload.
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| Light | 1× F-Series 40", white + red 1.1 amps at full brightness |

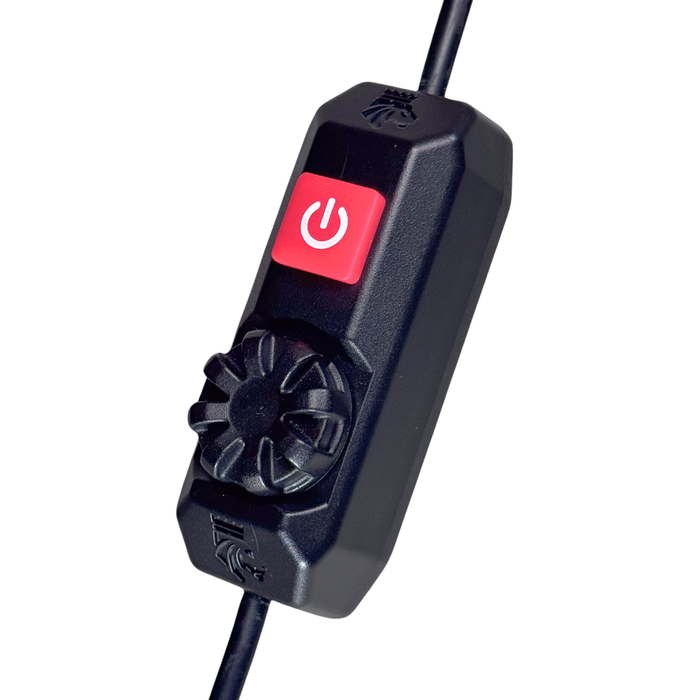

| Switch | Rotary Dimmer · weatherproof · 3 amps max |

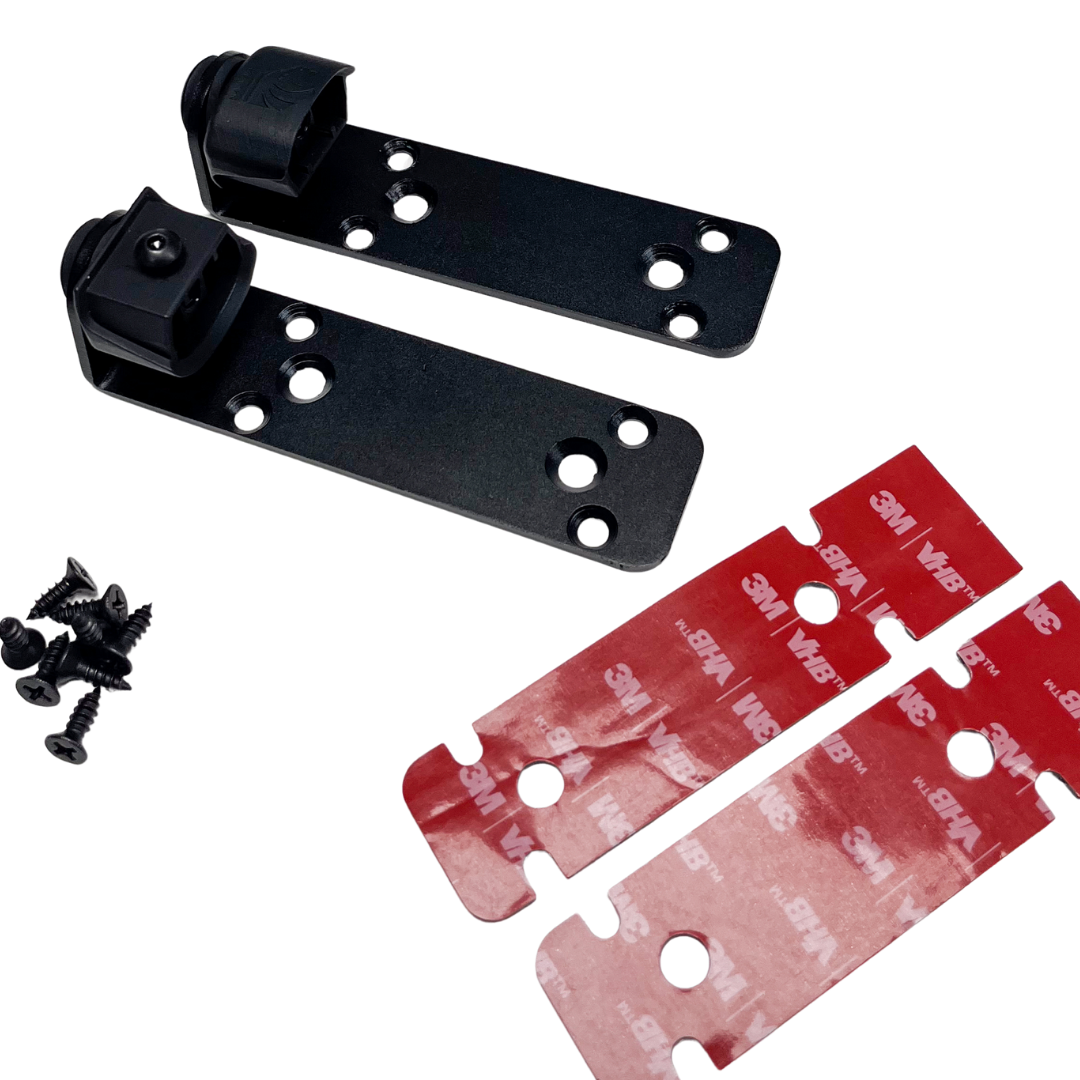

| Mounts | Search Mounts · turns 360° |
| Wire | 30 ft Power Cable · 20 AWG |
| Power | Not included Add the Power Supply Kit or the AC Power Supply |
| Rating | Weatherproof (IP54) |
| Warranty | 2 years from ship date |
How to install
- Your kit comes with 1 light. The faded one shows how a 2nd light would wire in.
- Red to red, black to black. Add a 2nd light and the 3 reds join, and the 3 blacks join.
- The yellow block is the 5A fuse on the red wire.
- 1
Clamp the light in the Search Mounts, then stick or screw them down.
- 2
Run the cable from the light to the dimmer's crown end: red to red, black to black.
- 3
Connect the dimmer's power end to 12V: your own fused feed, the Power Supply Kit or the AC Power Supply.
You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.
Full product description
Need a single dual-color rotating 40" light and dimmer switch to control it? Already have 12-volt power available? This is the package for you.
This low profile 40 inch light kit rotates 360-degrees and can swap between bright white and red night vision with a click. Set the vibe as needed with the included Rotary Dimmer Switch. Connect everything with matching Power Cable.

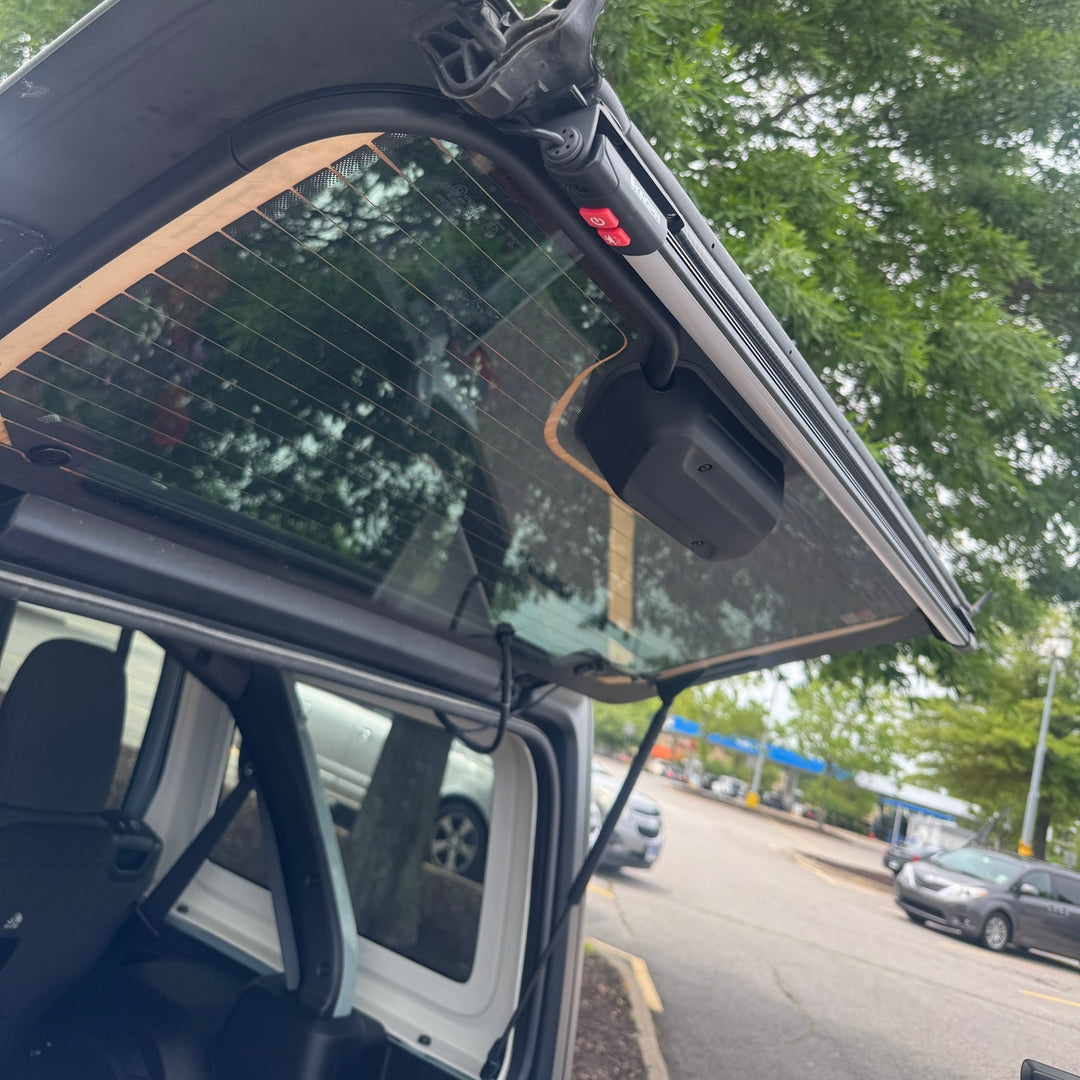

This the perfect light kit for truck tailgates, SUV hatches and Jeep rear windows, and so much more.
The Kit Includes:
(1x) F-Series 40" Dual-color red or white light
(1x) Set of Search Mounts to provide 360-degree rotation
(1x) Rotary Dimmer Switch
(1x) Wire spool to connect everything
Need to connect power to a 12-volt battery?
Just add our Power Supply Kit. Connect it to your battery, route the wires along your chassis, mount your lights and switches, connect everything up and you are ready to rip!
Note: You'll need to cut, strip, and connect a few wires to complete the installation.
Good questions, short answers
No. Use your own fused 12V feed, or add the Power Supply Kit (from the battery) or the AC Power Supply (from an outlet or power station).
Wire strippers, connectors for 20 AWG wire, and wire routing supplies. They aren't in the kit.
Yes. Each dimmer runs up to 3 amps: 2× 40", 4× 28", 8× F-12 or 6× V-12. Add up the amps in each zone.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
The whole kit draws 1.1 amps at full brightness.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| 40" or 12" kit? | 12" | 40" |
| Light | F-Series 12" | F-Series 40" |
| Best for | Cabs, doors, small boxes | Full beds, hatches, trailers |
| Power | 0.3 amps | 1.1 amps |
| Price | $149.99 | $199.99 |
