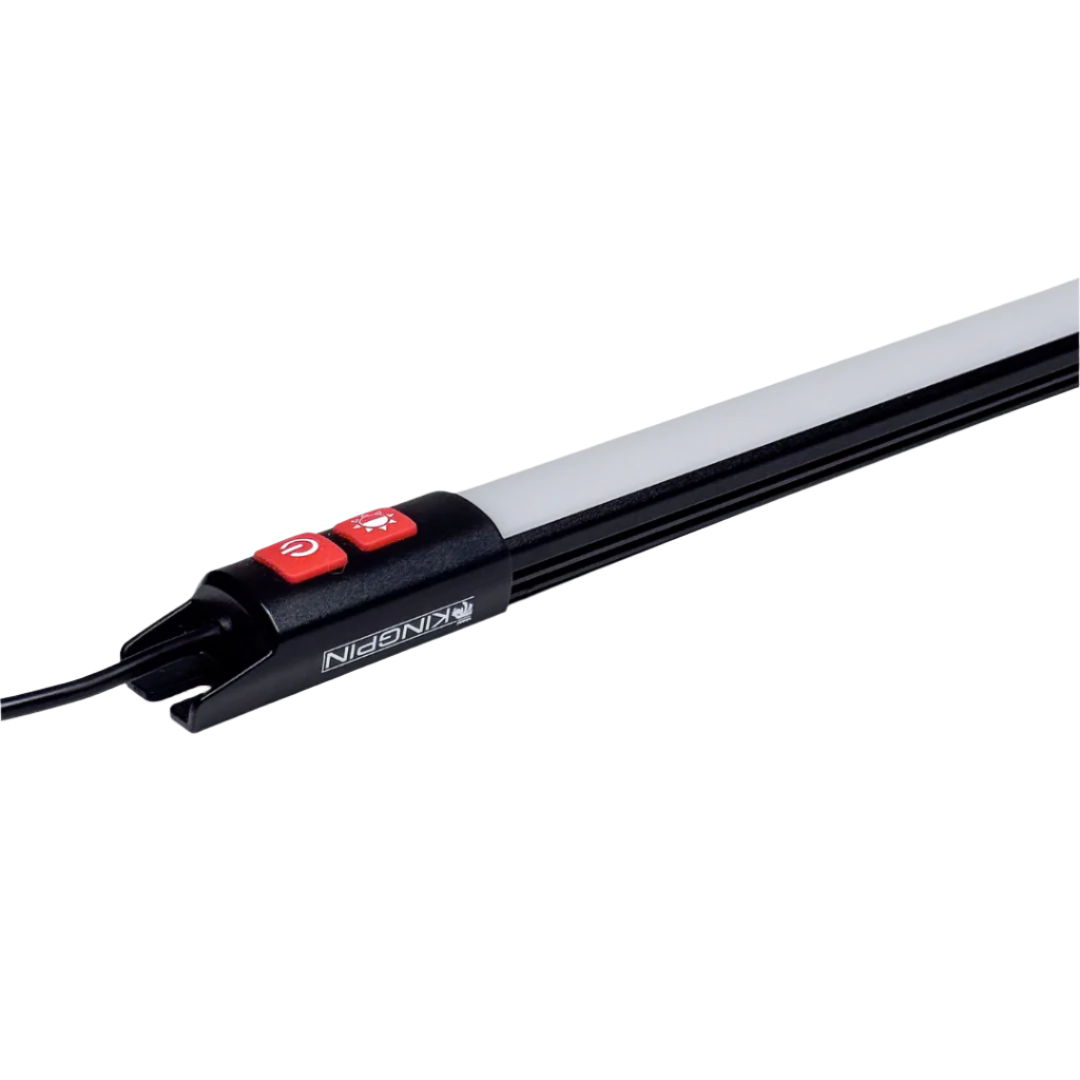

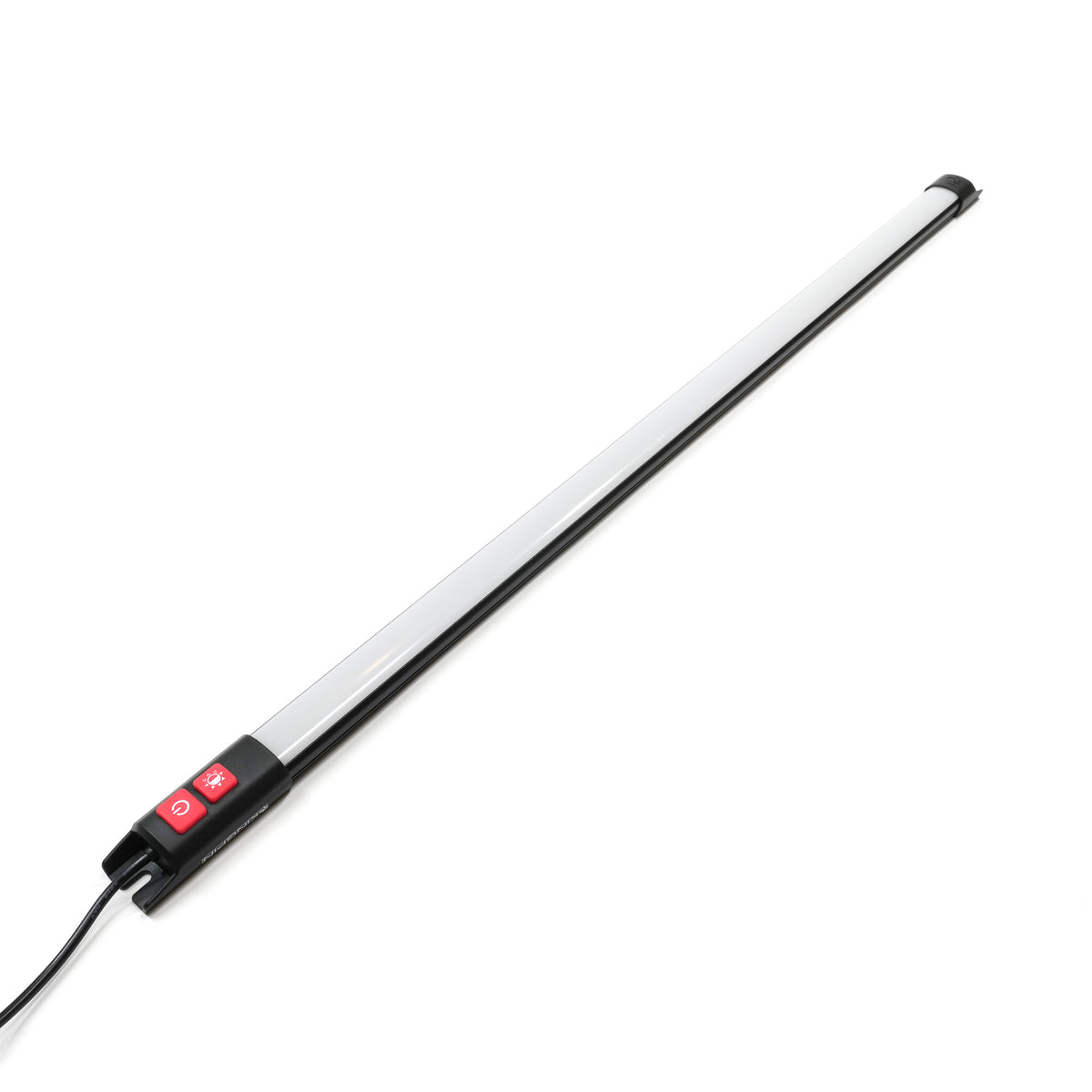

Kingpin™ F-Series 28" Light Kit
- One F-Series 28" light, white and red
- Search Mounts, so it turns 360°
- Rotary Dimmer and 30 ft of wire included
- Power it from your own 12V, or add ours
Search Mounts
in one light
IP54
warranty

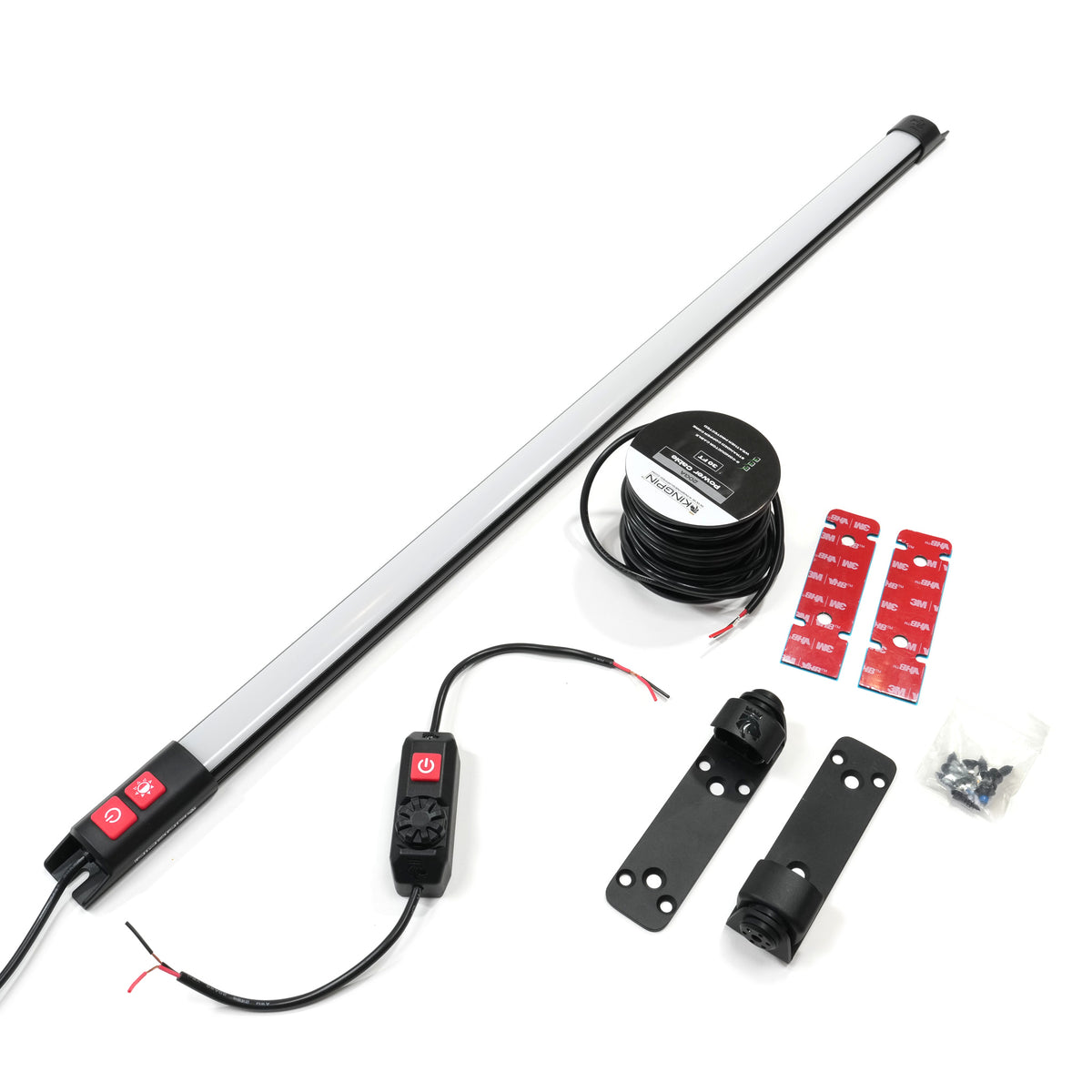

What's in the kit, and what you'll need
Ready to wire
- 1× F-Series 28" Light

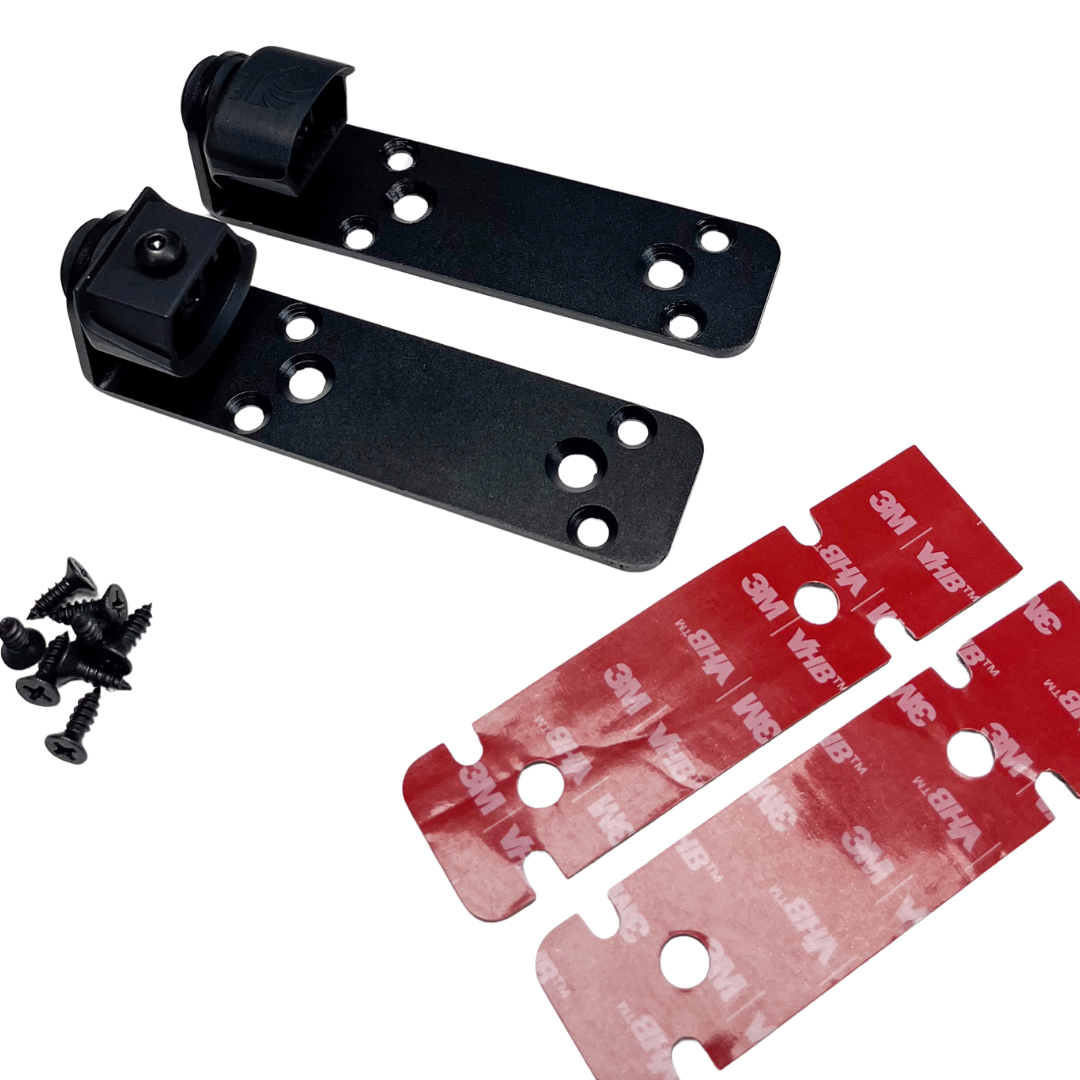

- 1 set of Search Mounts

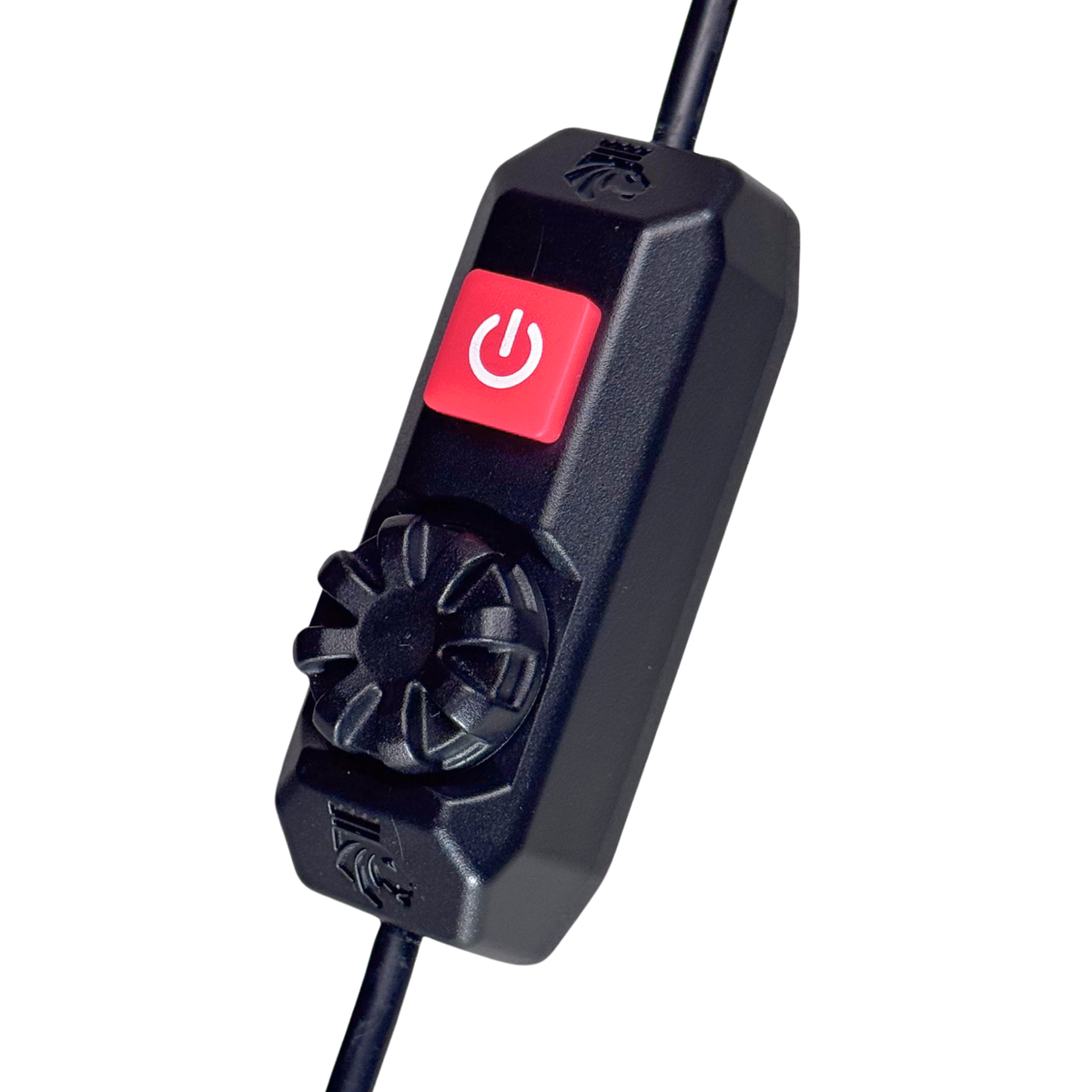

- 1× Rotary Dimmer Switch

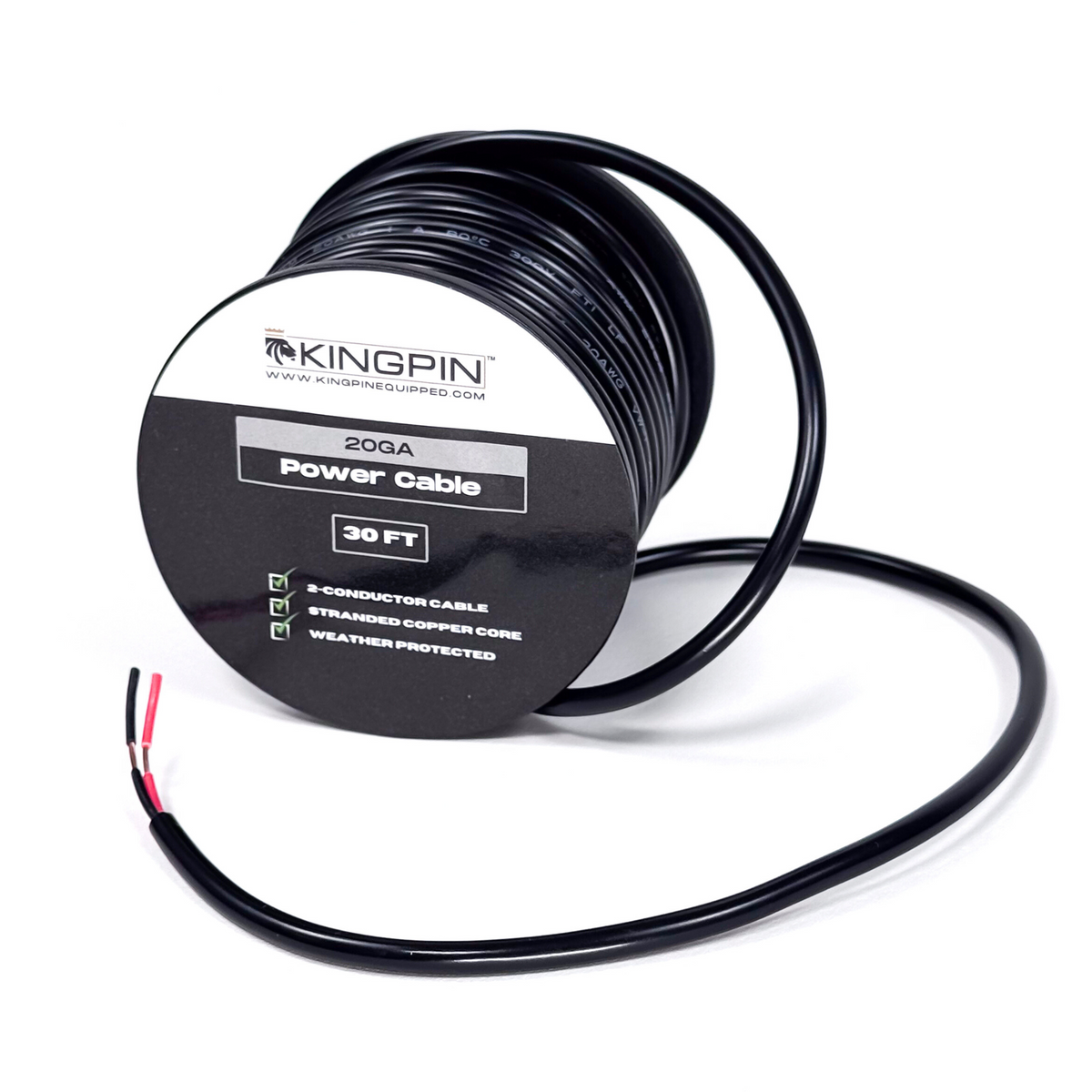

- 30 ft Power Cable, 20 AWG
One light, one dimmer
- The dimmer has room for up to 4 F-28 lights (3 amps max)

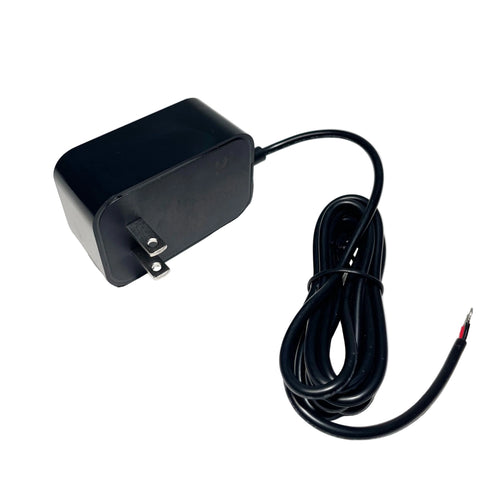

- Needs 12V power: your own fused feed, the Power Supply Kit, or the AC Power Supply
A few basics
- Wire strippers and connectors for 20 AWG wire
- Wire routing supplies
- A 12V power source

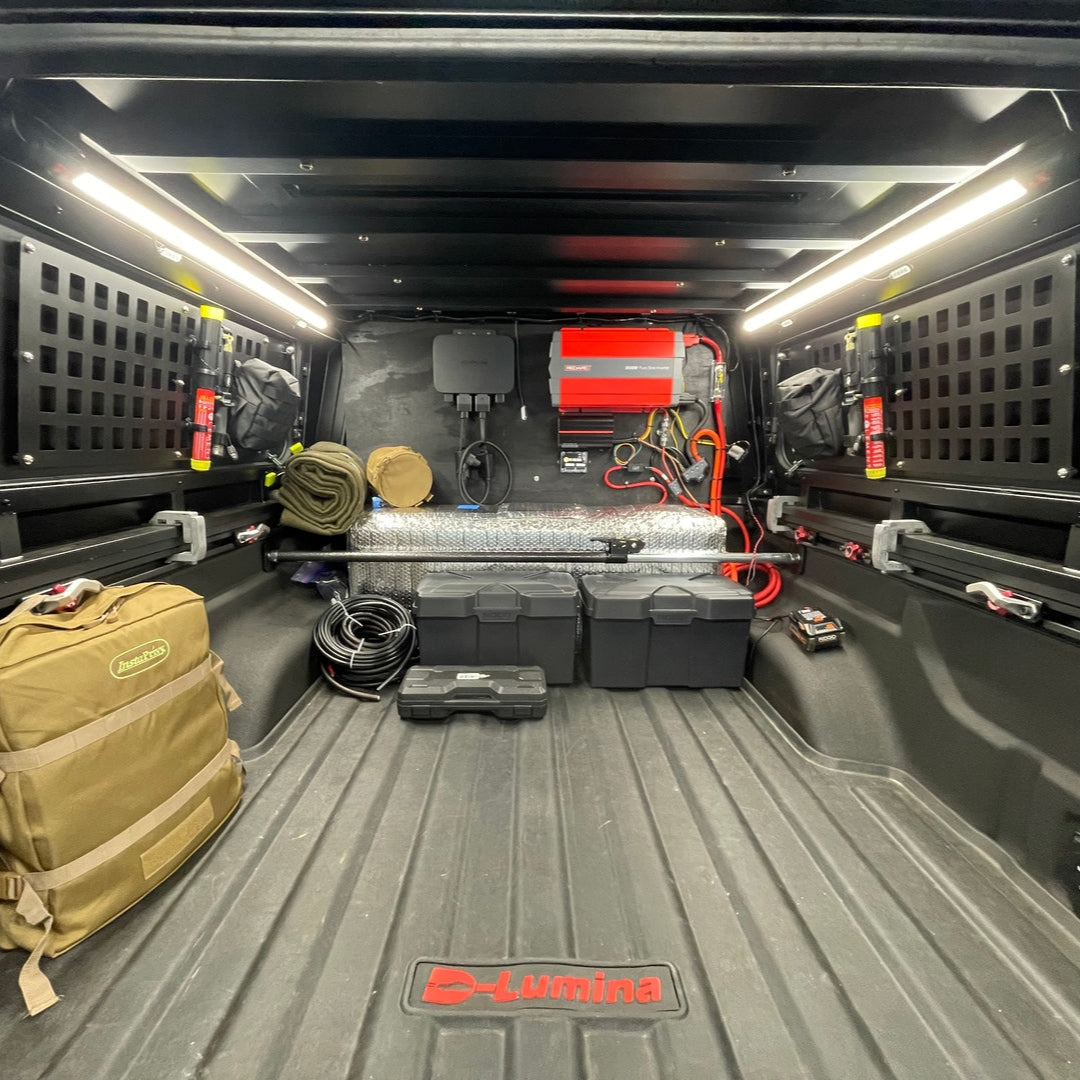

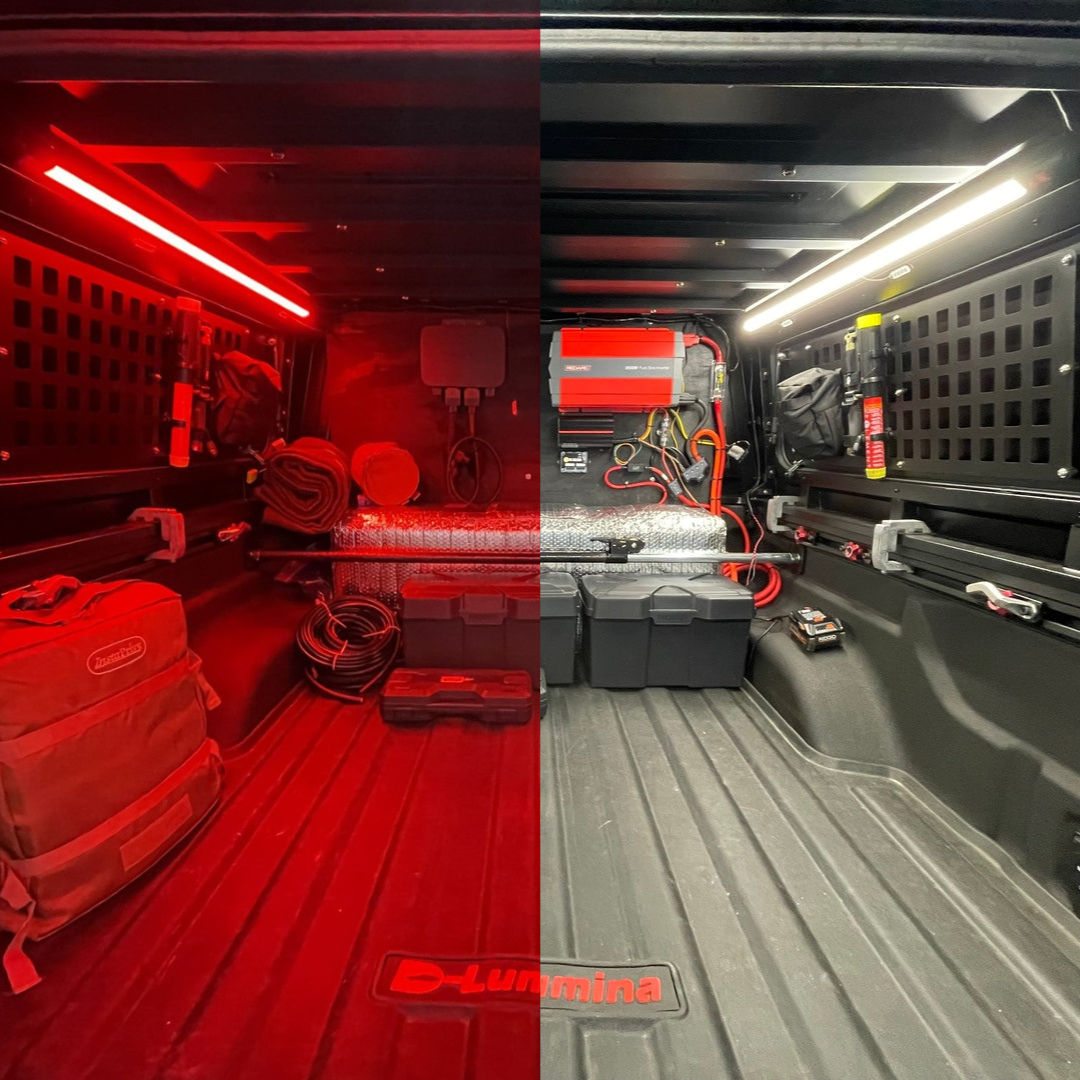

White
4000K neutral white. See your gear, load up, work late.

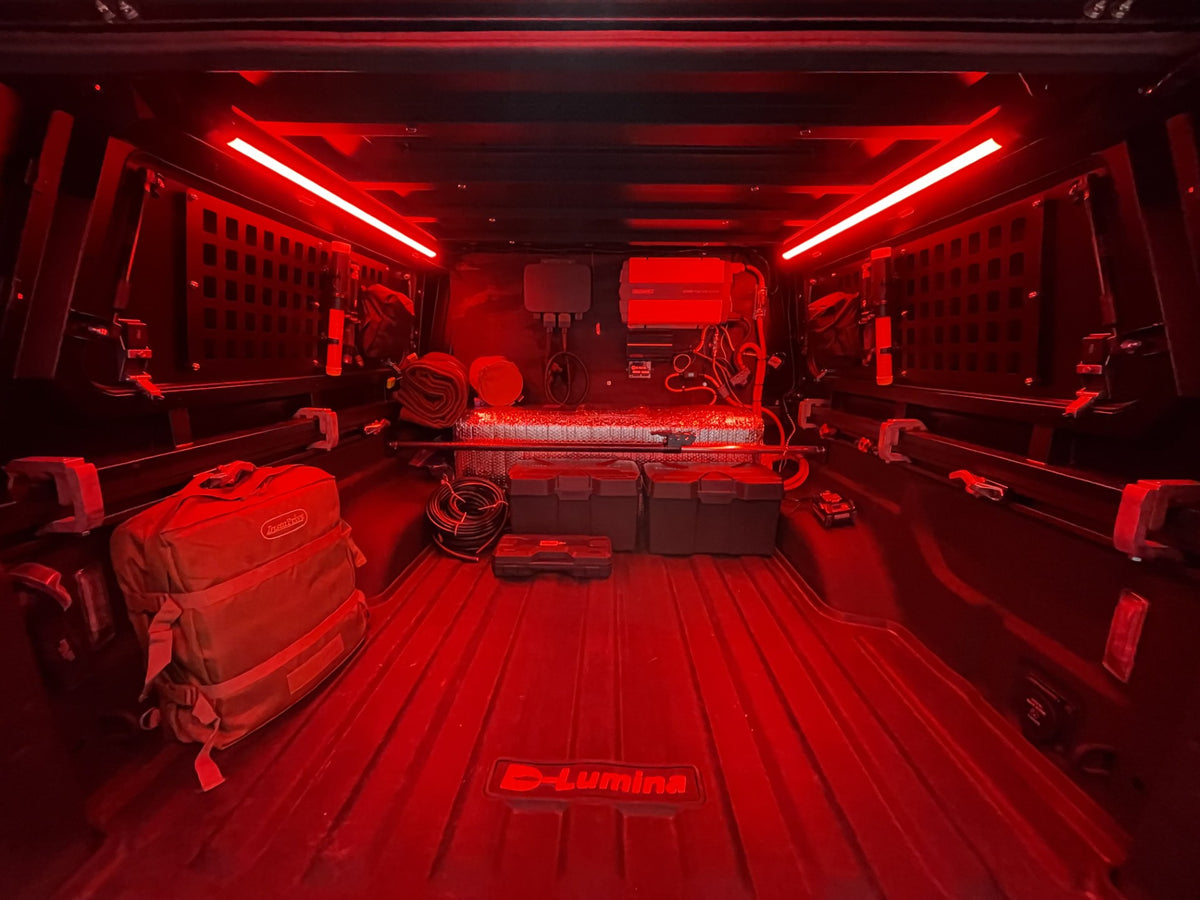

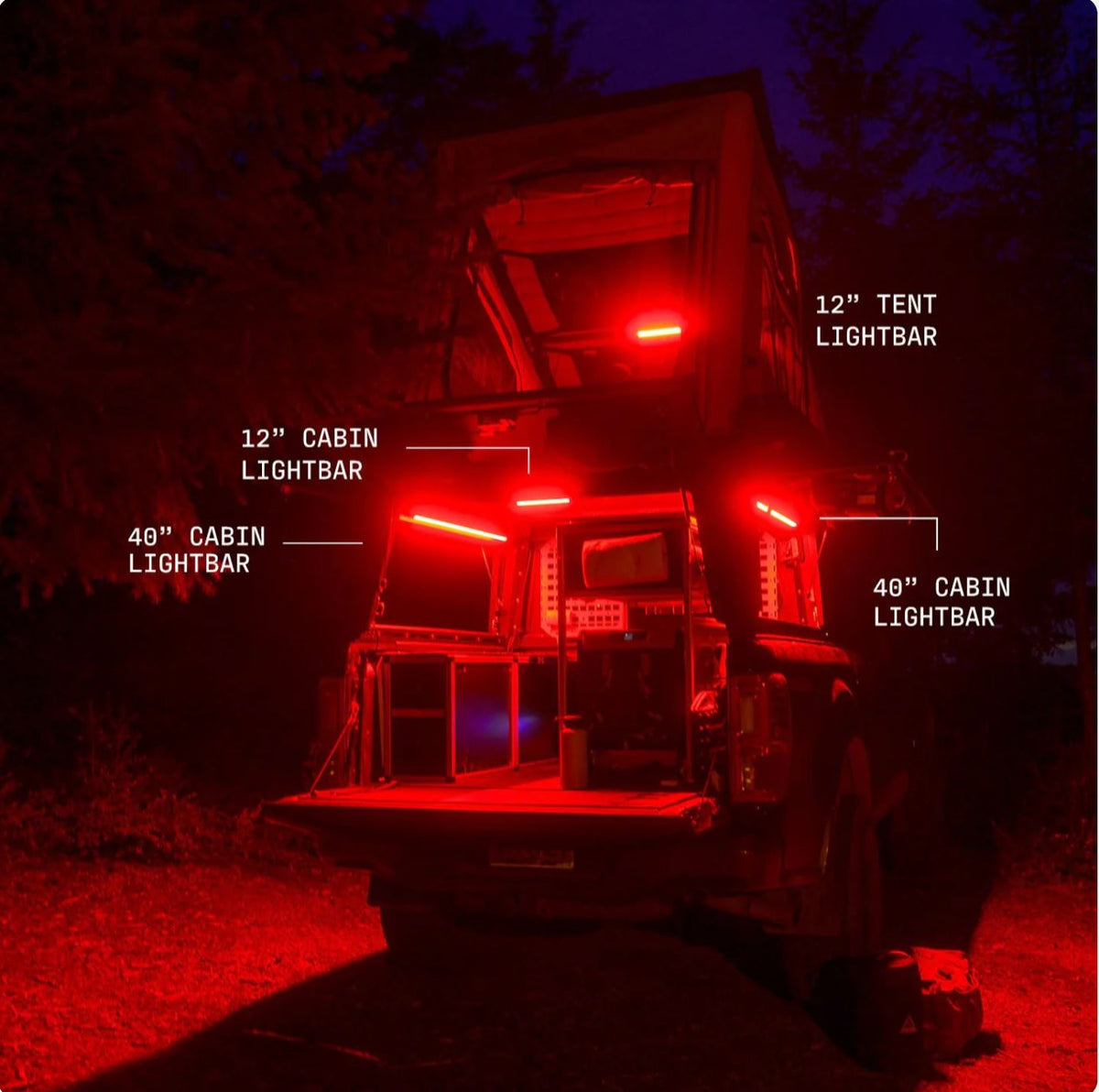

Red
Easy on your night vision. Camp, hunt, and late nights.
Your pick:Set white or red as the start-up color. Press power and it comes on in that color every time.
Bright, not blinding
Every Kingpin light has a thick, diffused lens. It spreads the light out into one smooth, even glow, and protects the light from hard knocks.
- No bright hot spots. The whole bar glows evenly.
- No harsh glare, so it's comfortable to look at, even up close.
- Soft, even light on your gear, with fewer hard shadows.
“Love the lights. Red keeps the bugs at bay while switching to white with a click of the button to really see in detail.”
“Paired with the rotary dimmer switch and swivel brackets this thing is amazing. White light if needed i mostly keep it on red light so i dont blind the deer at night with the white light. Wish i knew how to attach photos thing is great.”
“Absolutely love this light!!! We do a lot of off-roading and camping and this light was one of the best additions to our gear! Everything from dim to super bright!!! Can rotate the light in or out of the Jeep.... and the red light helps keep the bugs at bay!”

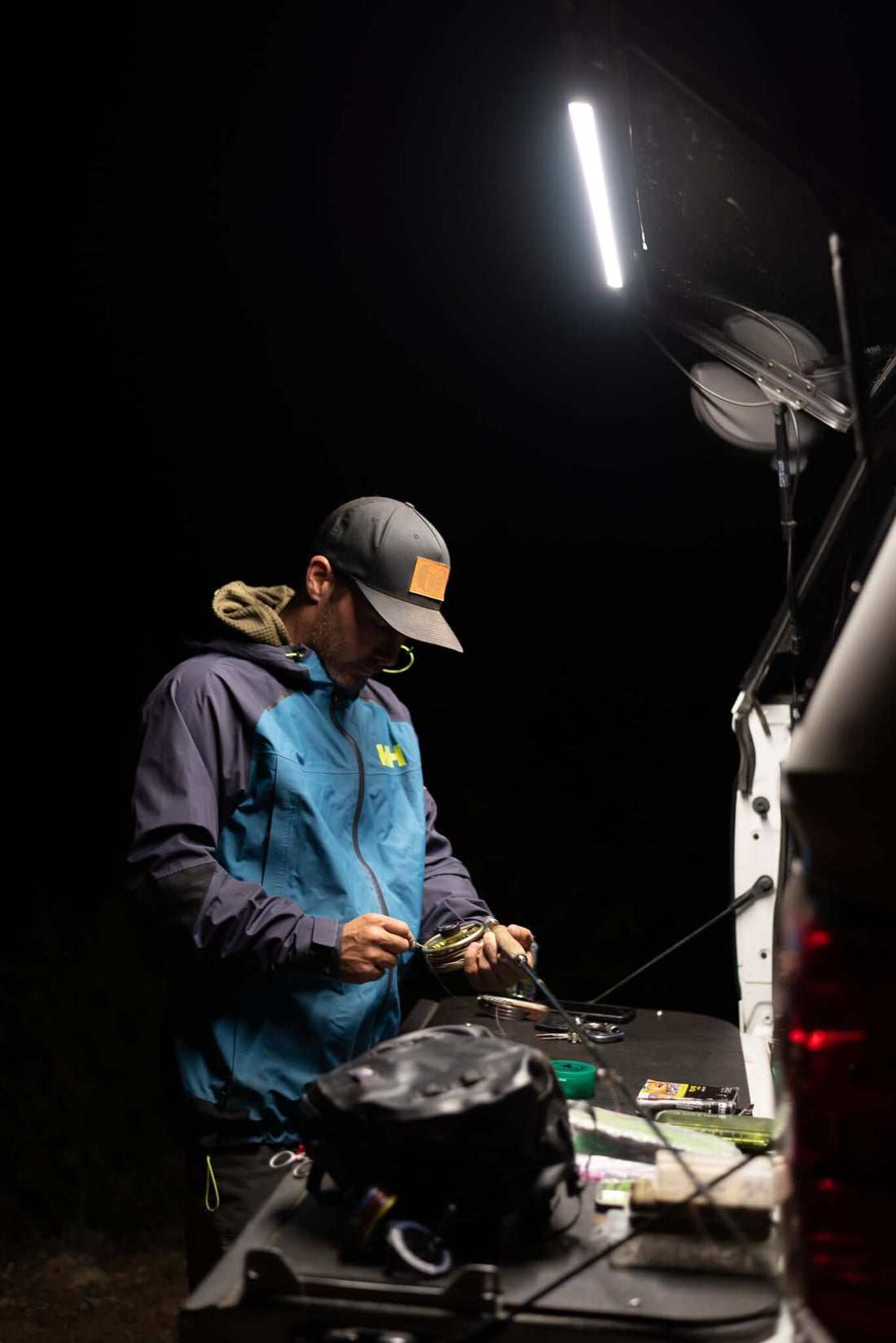

Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.

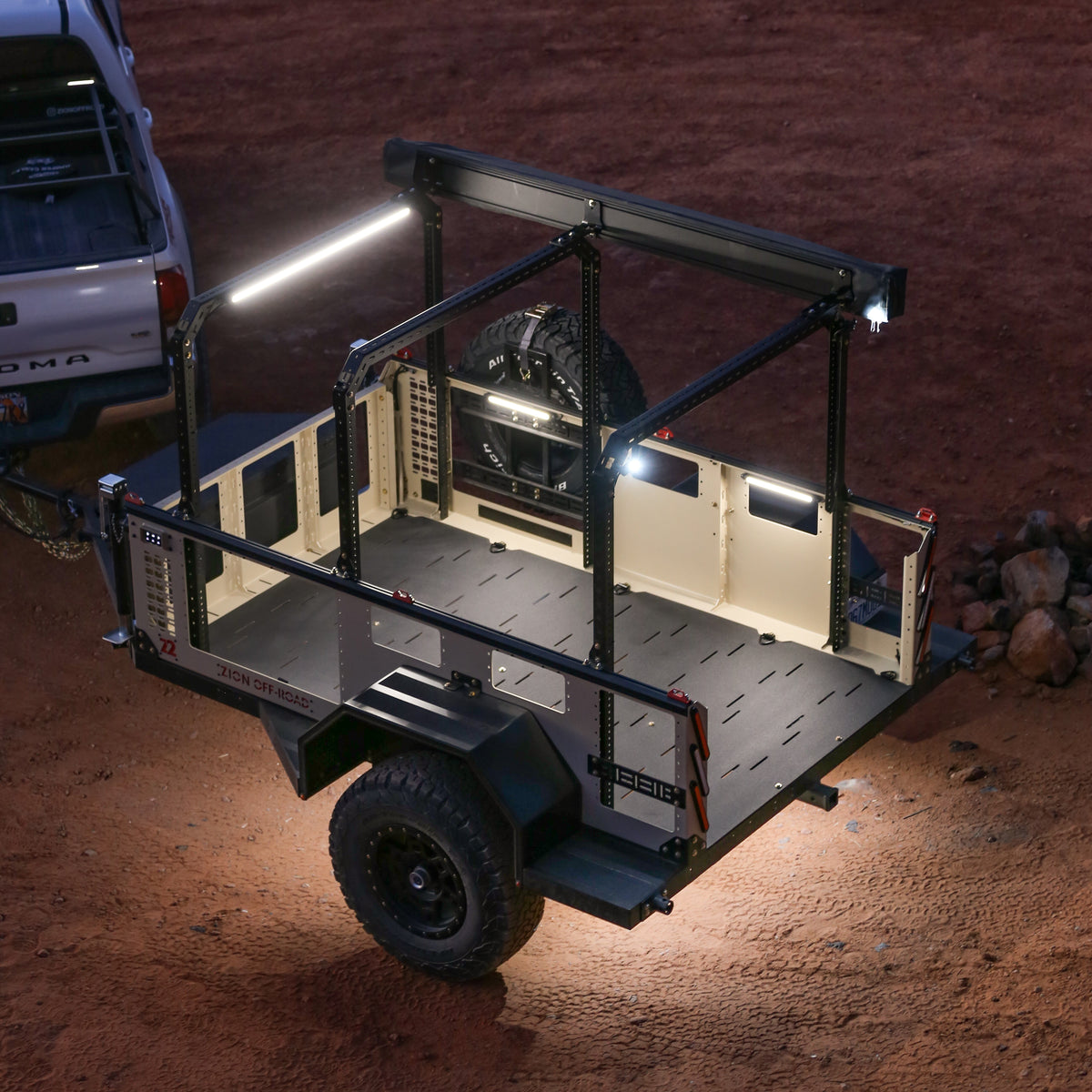

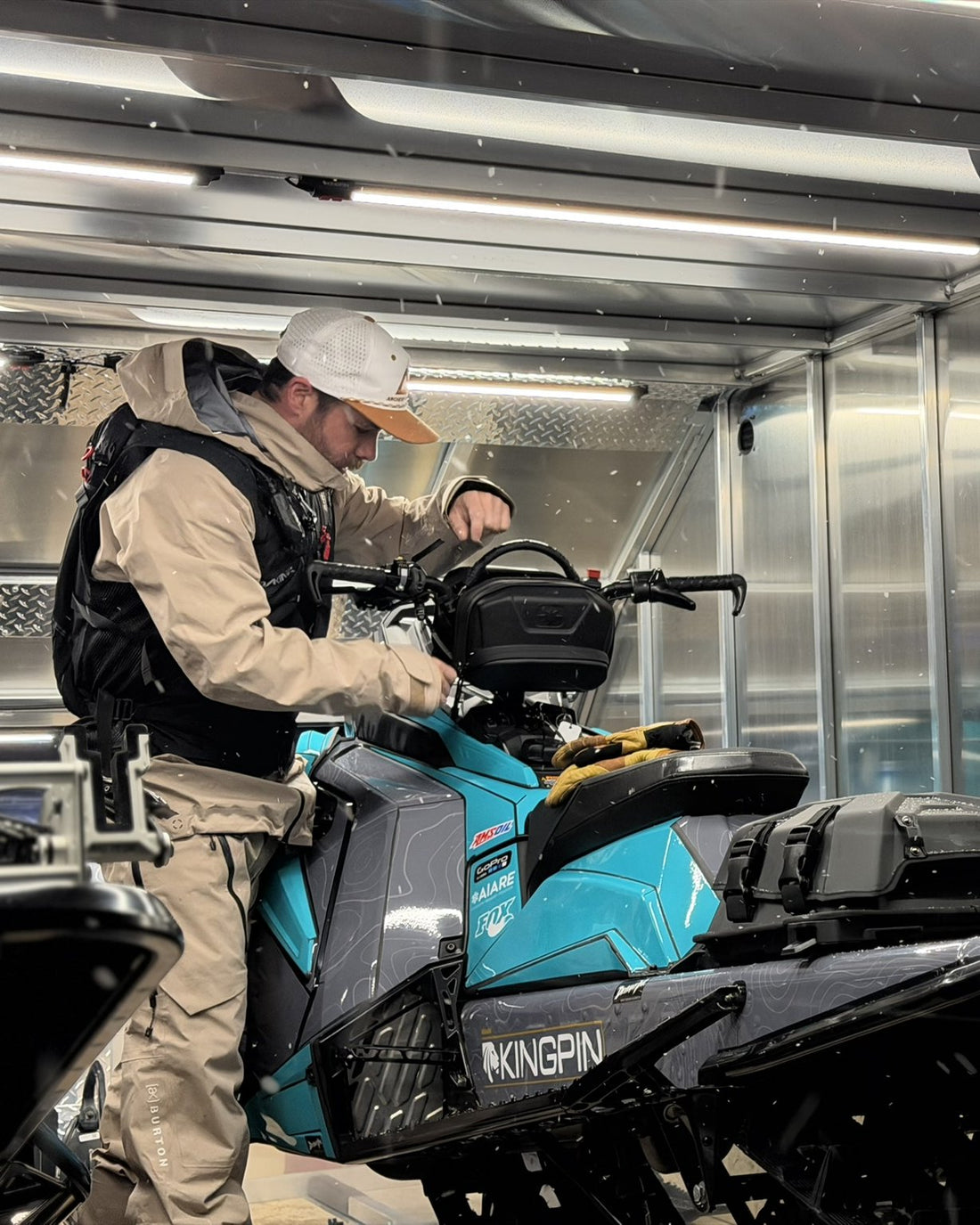

Trailers & toy haulers
Mount it where you load and unload.

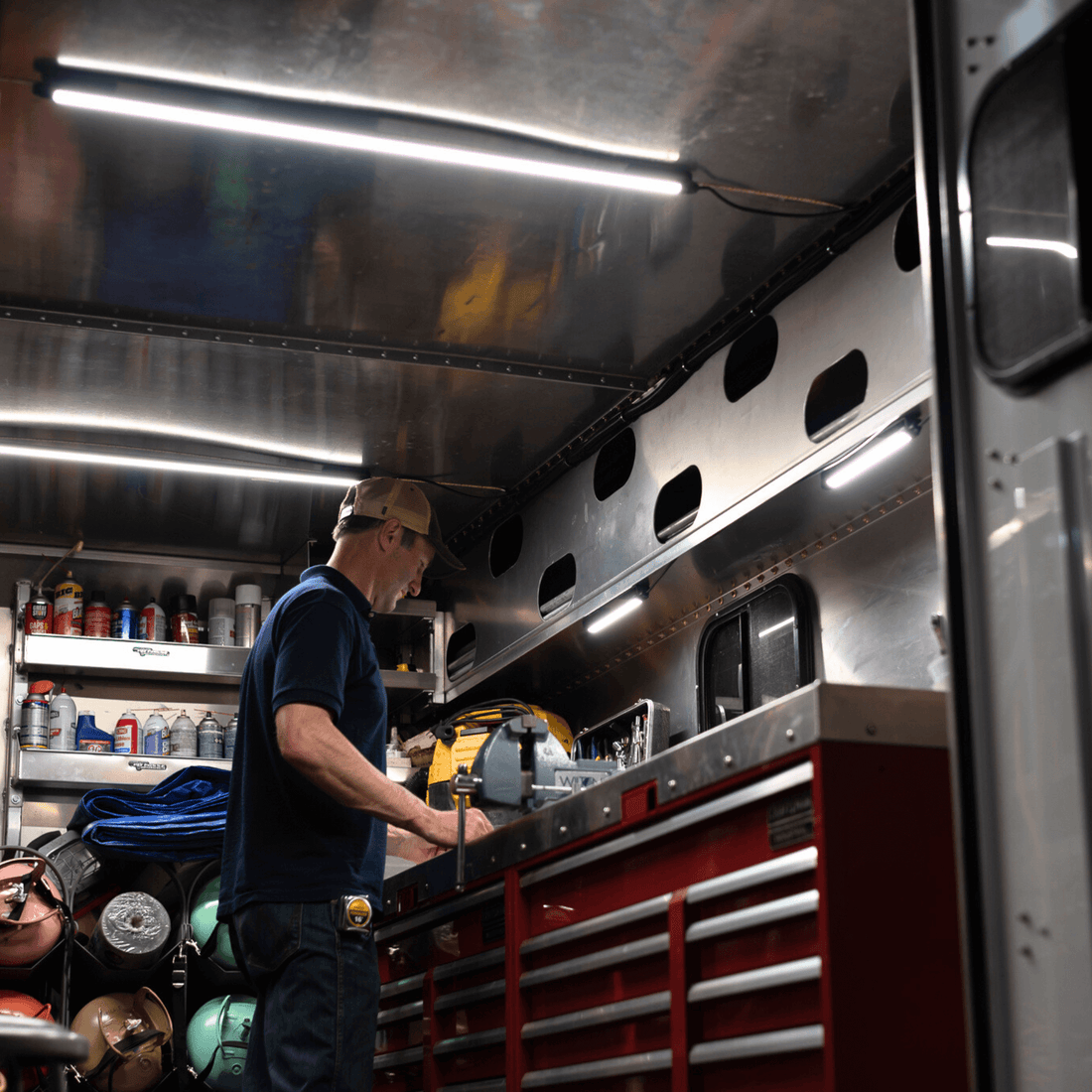

Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| Light | 1× F-Series 28", white + red 0.7 amps at full brightness |
| Switch | Rotary Dimmer · weatherproof · 3 amps max Runs up to 4× F-28 |
| Mounts | Search Mounts · turns 360° |
| Wire | 30 ft Power Cable · 20 AWG |
| Power | Not included Add the Power Supply Kit or the AC Power Supply |
| Rating | Weatherproof (IP54) |
| Warranty | 2 years from ship date |
How to install
- Your kit comes with 1 light. The faded one shows how a 2nd light would wire in.
- Red to red, black to black. Add a 2nd light and the 3 reds join, and the 3 blacks join.
- The yellow block is the 5A fuse on the red wire.
- 1

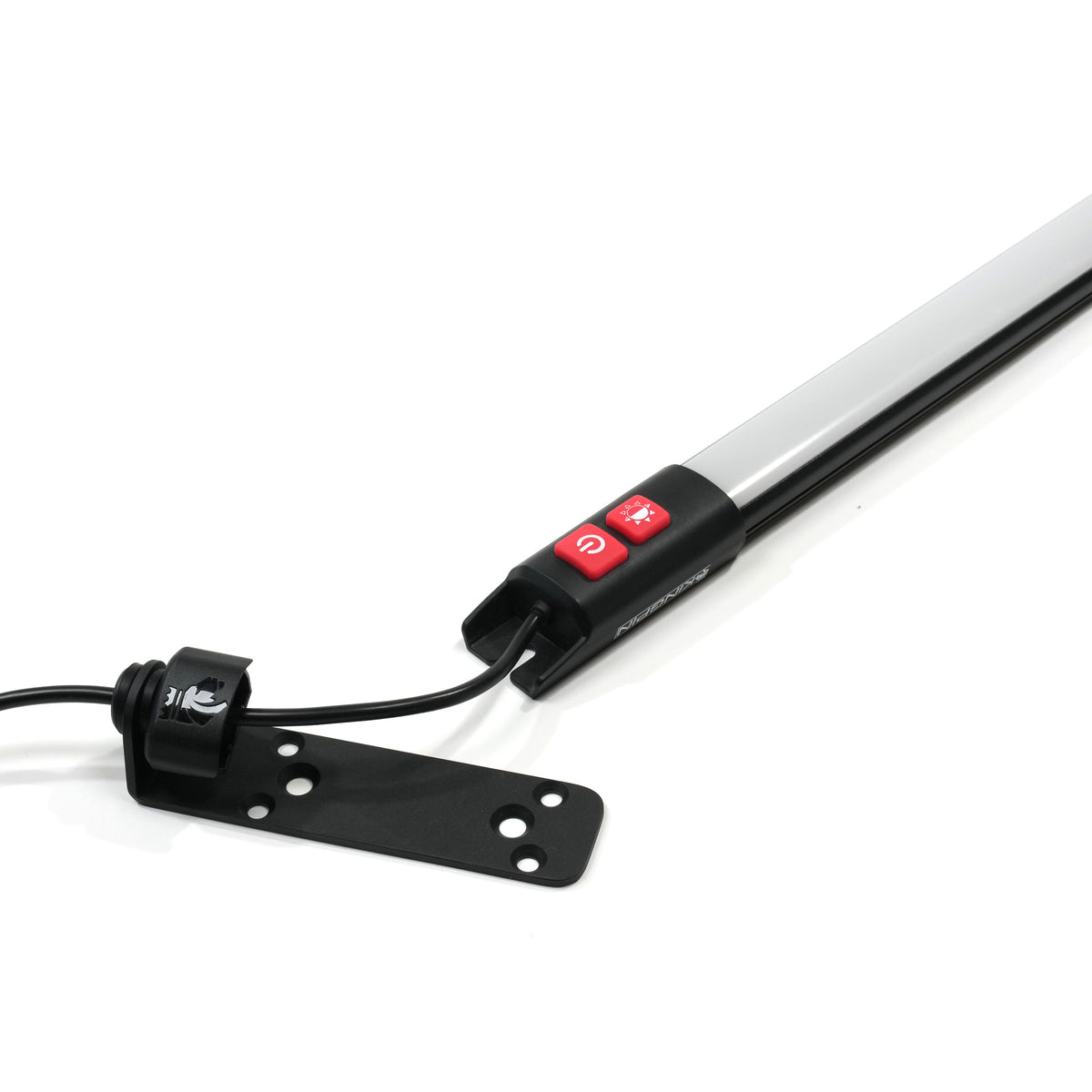

Clamp the light in the Search Mounts, then stick or screw them down.
- 2
Run the cable from the light to the dimmer's crown end: red to red, black to black.
- 3
Connect the dimmer's power end to 12V: your own fused feed, the Power Supply Kit or the AC Power Supply.
You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.
Full product description

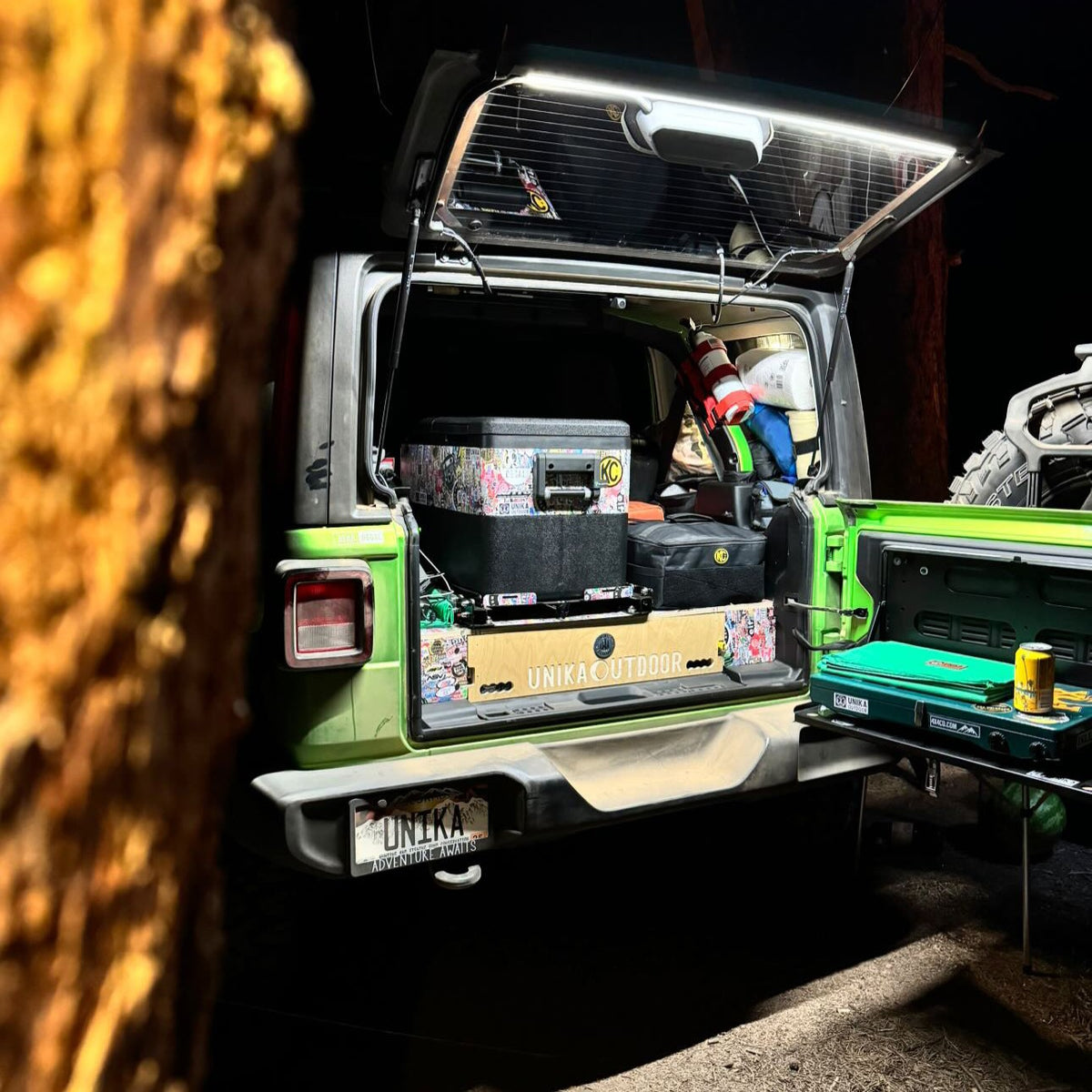

One dual-color light, a dimmer and wire in one box. The 28" is the middle length, a good fit for mid-size truck beds, shells, cargo areas and trailer doors.
The F-Series 28" light switches between bright white and red with a click, and turns 360° on the included Search Mounts. Set the brightness with the Rotary Dimmer. It draws 0.7 amps at full brightness.
In the kit: (1x) F-Series 28" dual-color light, (1x) set of Search Mounts, (1x) Rotary Dimmer Switch, (1x) wire spool.

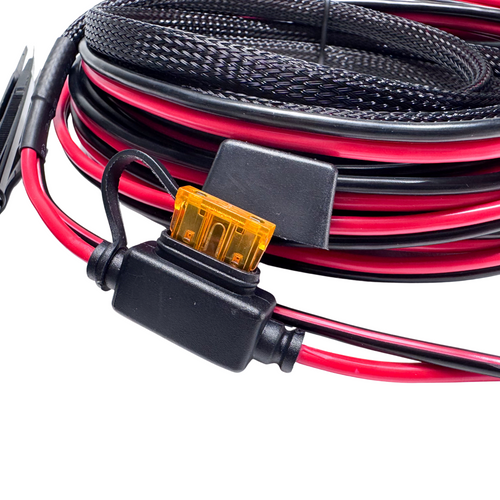

Already have 12V power? You're set. Need power from a battery? Add the 12-Volt Power Supply Kit.
The light comes with 3M VHB tape and screws; the dimmer mounts with 3M VHB tape.
Good questions, short answers
No. Use your own fused 12V feed, or add the Power Supply Kit (from the battery) or the AC Power Supply (from an outlet or power station).
Wire strippers, connectors for 20 AWG wire, and wire routing supplies. They aren't in the kit.
Yes. Each dimmer runs up to 3 amps: 2× 40", 4× 28", 8× F-12 or 6× V-12. Add up the amps in each zone.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
The whole kit draws 0.7 amps at full brightness.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| 40" or 12" kit? | 12" | 40" |
| Light | F-Series 12" | F-Series 40" |
| Best for | Cabs, doors, small boxes | Full beds, hatches, trailers |
| Power | 0.3 amps | 1.1 amps |
| Price | $149.99 | $199.99 |
