AC Power Supply
- Run Kingpin lights from a wall outlet or a power station
- 12V DC out, up to 3 amps
- Bare wires on the 12V end, ready to connect
- For inside spots: garage, shop, shelves, safe
any outlet
bare wires
max
warranty
What's in the box, and what you'll need
Ready to plug in

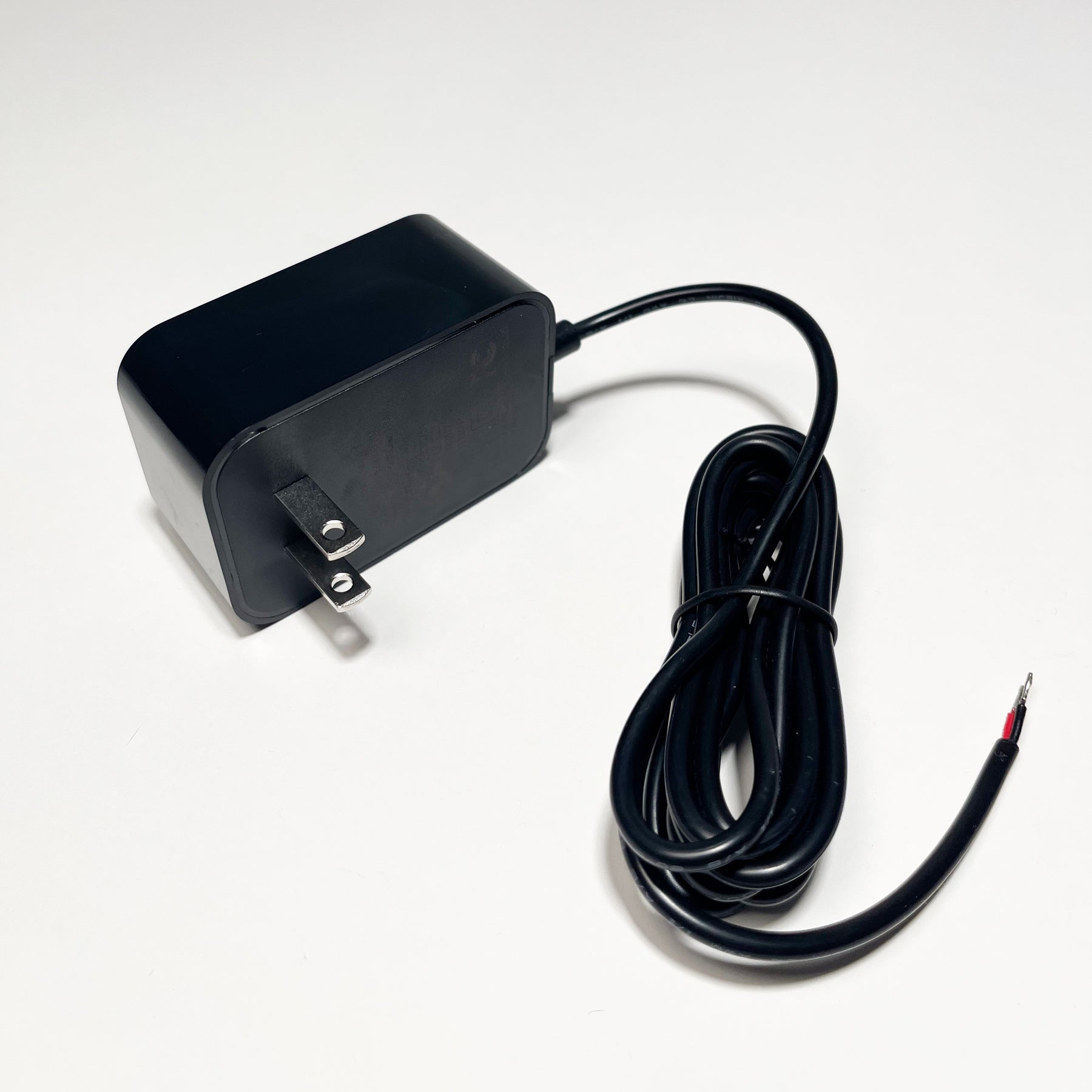

- AC Power Supply: 110/120V in, 12V DC out

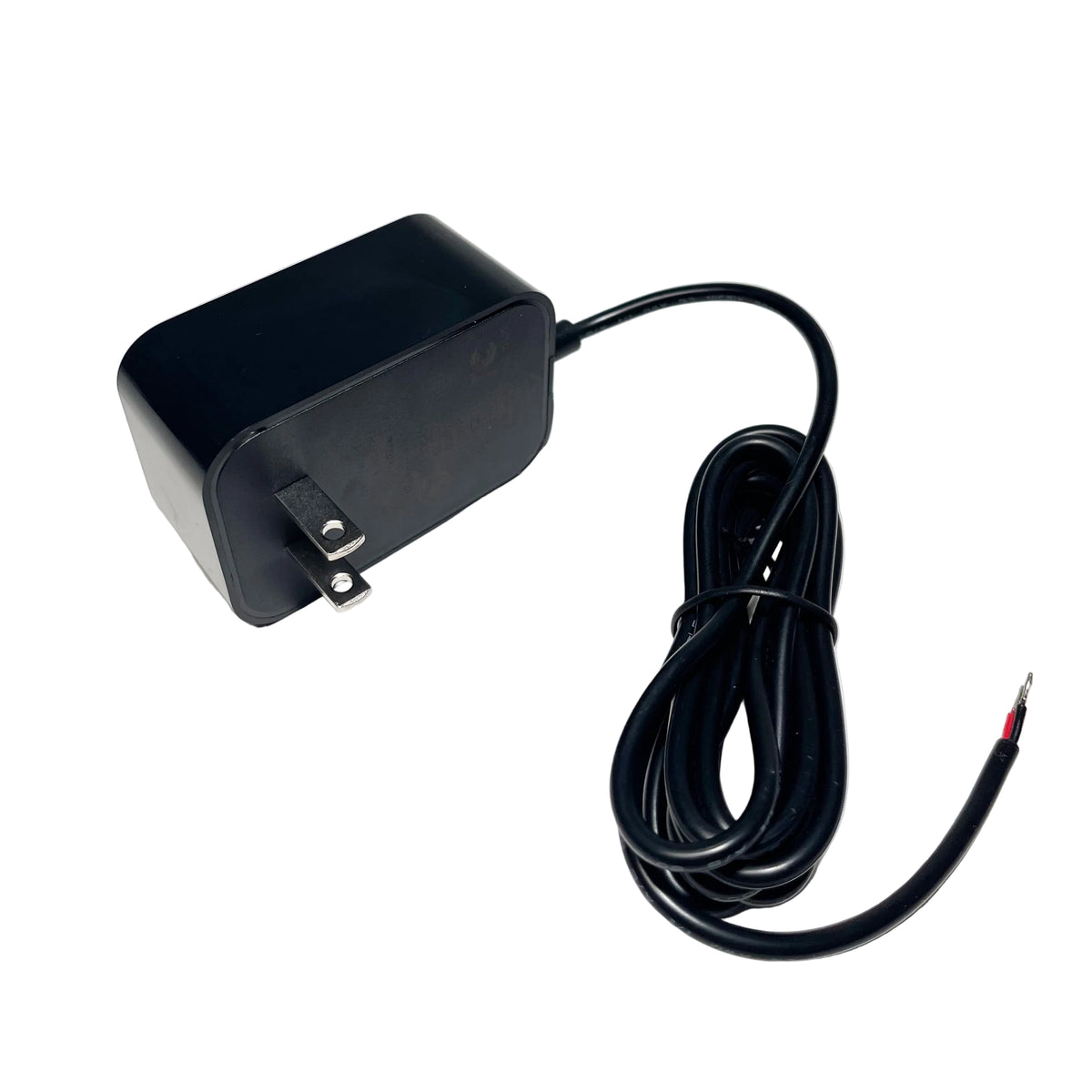

- 60" cord, bare red and black wires on the 12V end
Every Kingpin light
- Any Kingpin light or switch
- Up to 3 amps: 2× 40", 4× 28", 8× F-12, 6× V-12
- A wall outlet or a portable power station's AC outlet
A few basics
- Wire strippers and connectors

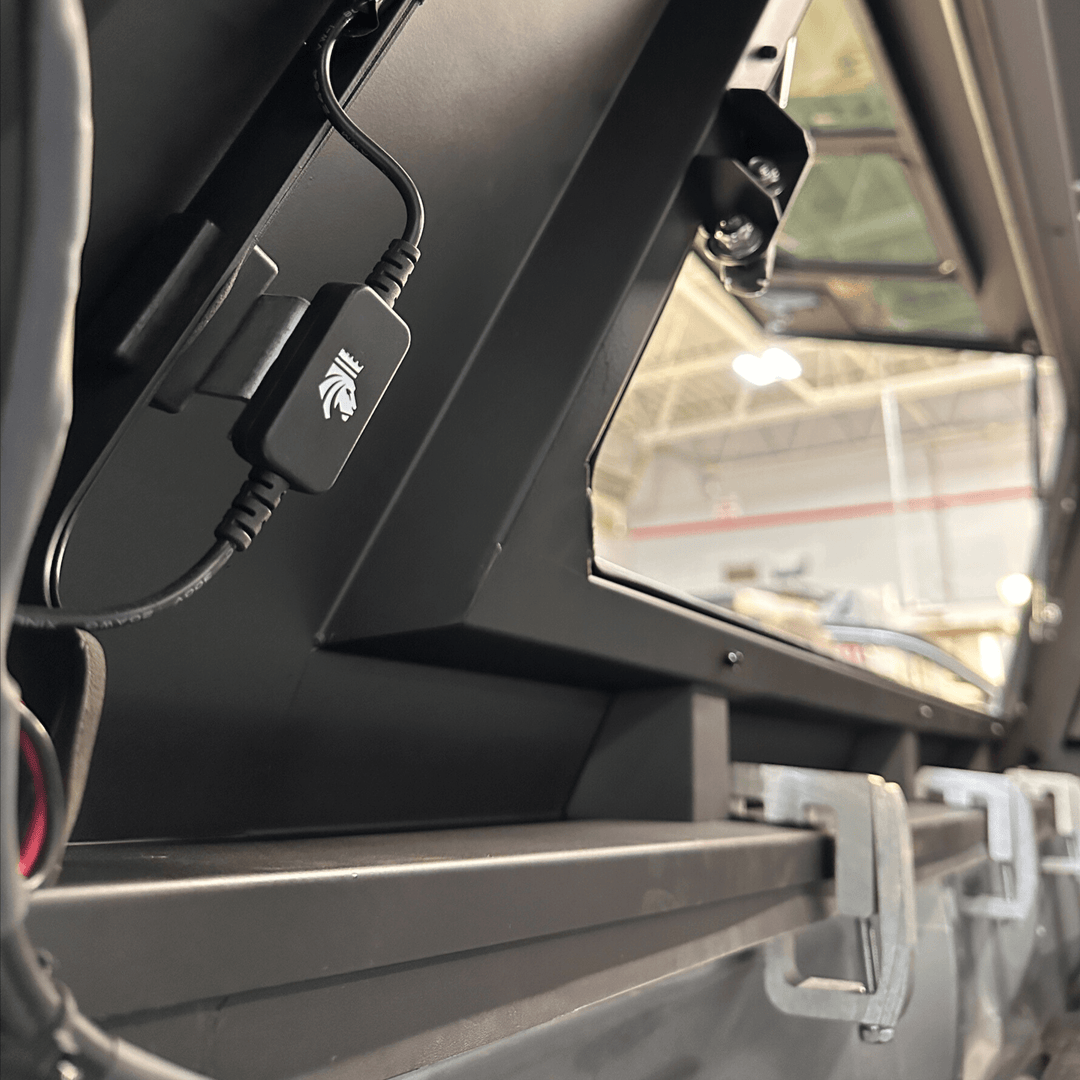

- A switch if you want to dim, like the Rotary Dimmer
- The Power Cable if the lights are far away
Connect the wires
Bare red and black wires join the switch or light: red to red, black to black.

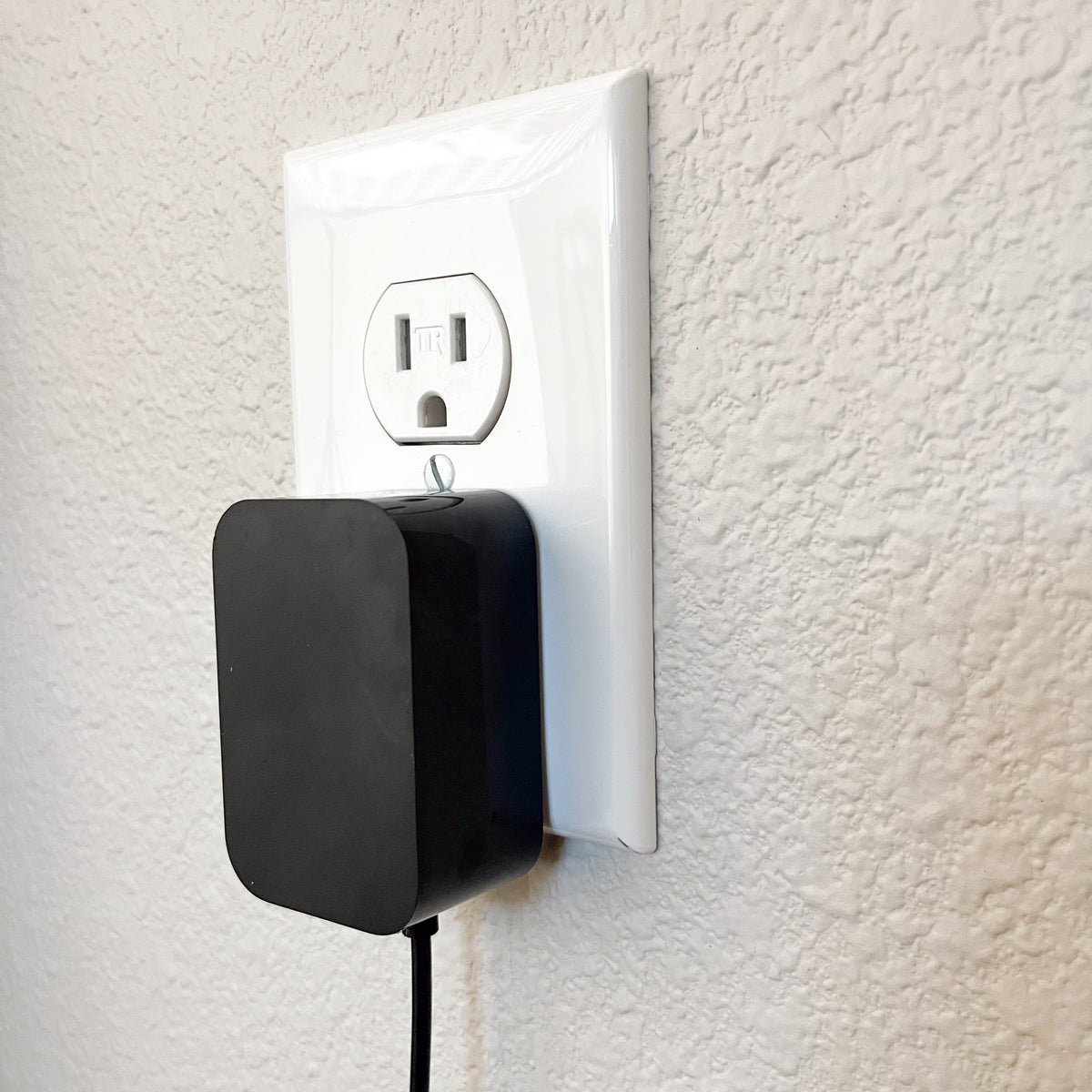

Plug it in
Any 110/120V outlet in the garage, the shop, or on a portable power station.
Add up the amps:It runs up to 3 amps of lights.
Power without a battery
Light a garage, shop, shelf or safe right off the wall, or off a portable power station at camp.
- Pro tip: make a 3A shore-power branch in your truck or trailer.
- Add a 12V quick-connect plug to swap between AC and battery power.
- Tested to hold a steady 12V up to 3 amps.
“Very easy to set up and the perfect amount of light!”
“Great products and service!”
“great product”
Turn on your tailgate
Rig gear, cook, or pack up in the dark.
Trailers & toy haulers
Mount it where you load and unload.
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| Input | 110/120V AC |
| Output | 12V DC · 3 amps max Add up the amps: F-40 1.1 · F-28 0.7 · F-12 0.3 · V-40 1.4 · V-12 0.5 |
| 12V end | Bare red and black wires |
| Cord | 60" |
| Plugs into | A wall outlet or a portable power station's AC outlet |
| Use | Inside only (not weatherproof) |
| Works with | Every Kingpin light and switch |
| Warranty | 2 years from ship date |
How to install
- 1
Join the 12V wires to your switch's power end (or the light): red to red, black to black.
- 2
Wire the lights to the switch.
- 3
Plug it into a wall outlet or a power station's AC outlet.
Inside only. 3 amps max. Add up the amps: F-40 1.1 · F-28 0.7 · F-12 0.3 · V-40 1.4 · V-12 0.5
Full product description
Use your lights anywhere you have a standard home power outlet.
Just connect the wires and go. Power two 40" or four 12" lights or one 40" and three 12" lights together.
Tested and verified to reliably output the proper voltage required to safely power any 12-volt accessory up to 3 Amps.
Input: 110/120V AC Output: 12V DC, 3A Max
Kingpin Pro Tip
Use this to create a 3A shore power branch in your truck or trailer! Add a 12-volt DC quick-connect plug to the end for quick and easy changeovers between AC and DC power supply.
Good questions, short answers
Up to 3 amps of lights: 2× 40", 4× 28", 8× F-12 or 6× V-12. Mix them if you like, just add up the amps.
Yes. Plug it into the station's AC outlet and your lights run off the station. If your station has a 12V DC outlet, you can also run the lights from that directly.
No. It's made for inside spots like a garage, shop or trailer interior. Outside, run the lights off a battery with the Power Supply Kit.
Yes, as a shore-power branch. Plug it in at camp, and add a 12V quick-connect plug to swap back to battery power.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| Which power do I need? | AC Power Supply | Power Supply Kit |
| Power from | Wall outlet or power station | Vehicle battery |
| Output | 12V DC, 3A max | 12V DC, 5A fused |
| Length | 60" cord | 25 ft |
| Where | Inside | Truck, trailer, boat |
| Price | $24.99 | $58.99 |
