One light over the tailgate, on its own dimmer. Cook, rig gear or pack up.

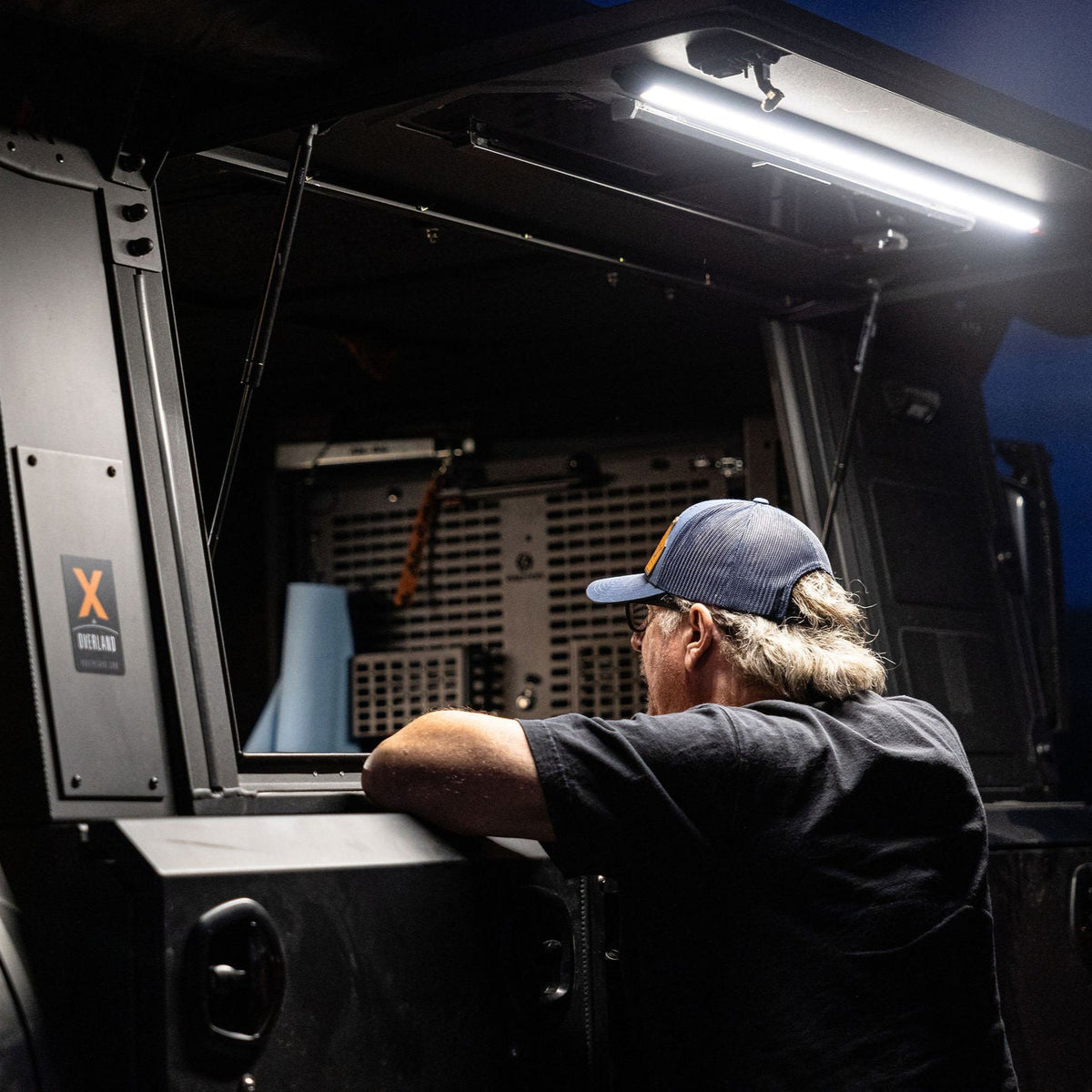

Two lights on the ceiling or sides, on the other dimmer. See everything in the bed.
Each zone, its own dimmer:Light the tailgate without lighting up the whole bed.
Every Kingpin light has a thick, diffused lens. It spreads the light out into one smooth, even glow, and protects the light from hard knocks.
“I hunt at night a lot and the red light is bright enough to get everything I need without blowing my night vision.”
“Love the lights. Went with 3 F-series 40” lights, rear hatch light on F-series search mounts, all on dimmer switches. Lights up the shell, & beyond when needed. Very happy.”
“Good quality, good light, dimmable-worth the money. Easy to install.”

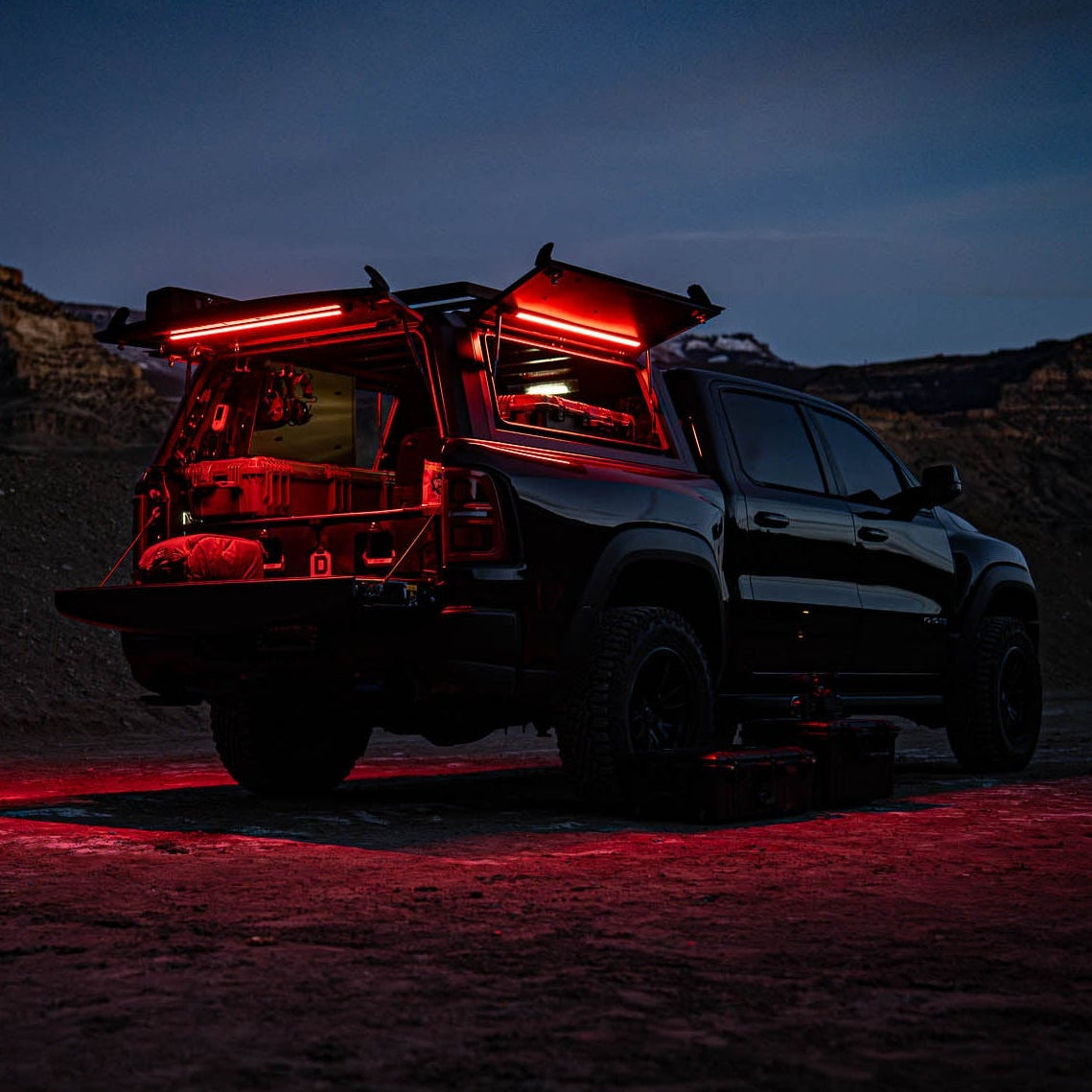

Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.
Mount it where you load and unload.
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.

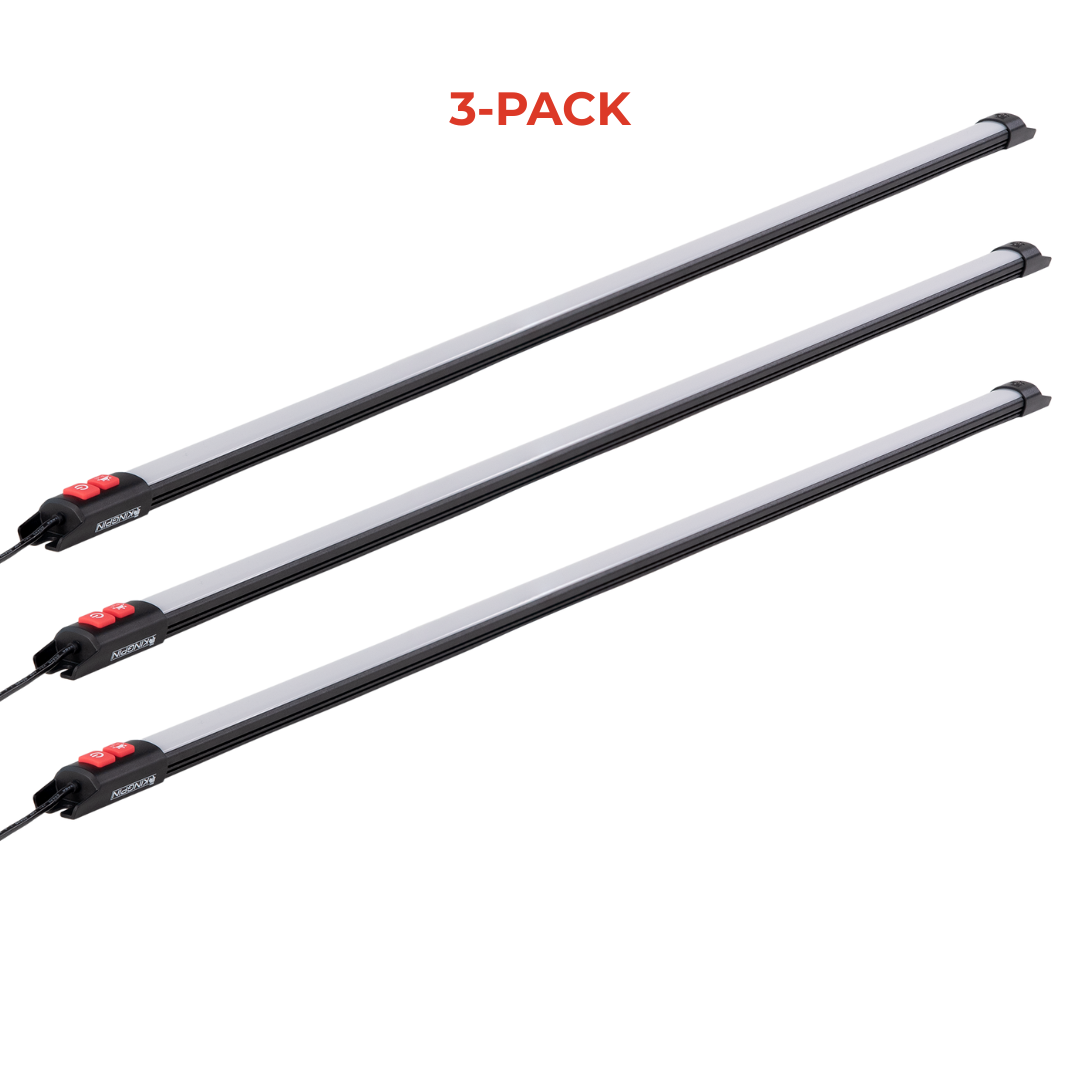

| Lights | 3× F-Series 40", white + red 1.1 amps each at full brightness |
| Zones | 2, each with its own dimmer |
| Switches | 2× Rotary Dimmer · weatherproof · 3 amps max each |
| Mounts | 1 set of Search Mounts (tailgate light) The other 2 lights mount flat with the included tape or screws |
| Power | 12-Volt Power Supply Kit · 25 ft · 5A fuse |
| Wire | 30 ft Power Cable · 20 AWG |
| Draw | 3.3 amps total at full brightness |
| Rating | Weatherproof (IP54) |
| Warranty | 2 years from ship date |
Mount the lights: the tailgate light on the Search Mounts, the other 2 on the ceiling or sides.
Wire each zone to its own dimmer. The lights go on the crown end.
Join the dimmers' power ends to the Power Supply Kit. Last, bolt it to the battery.
You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.

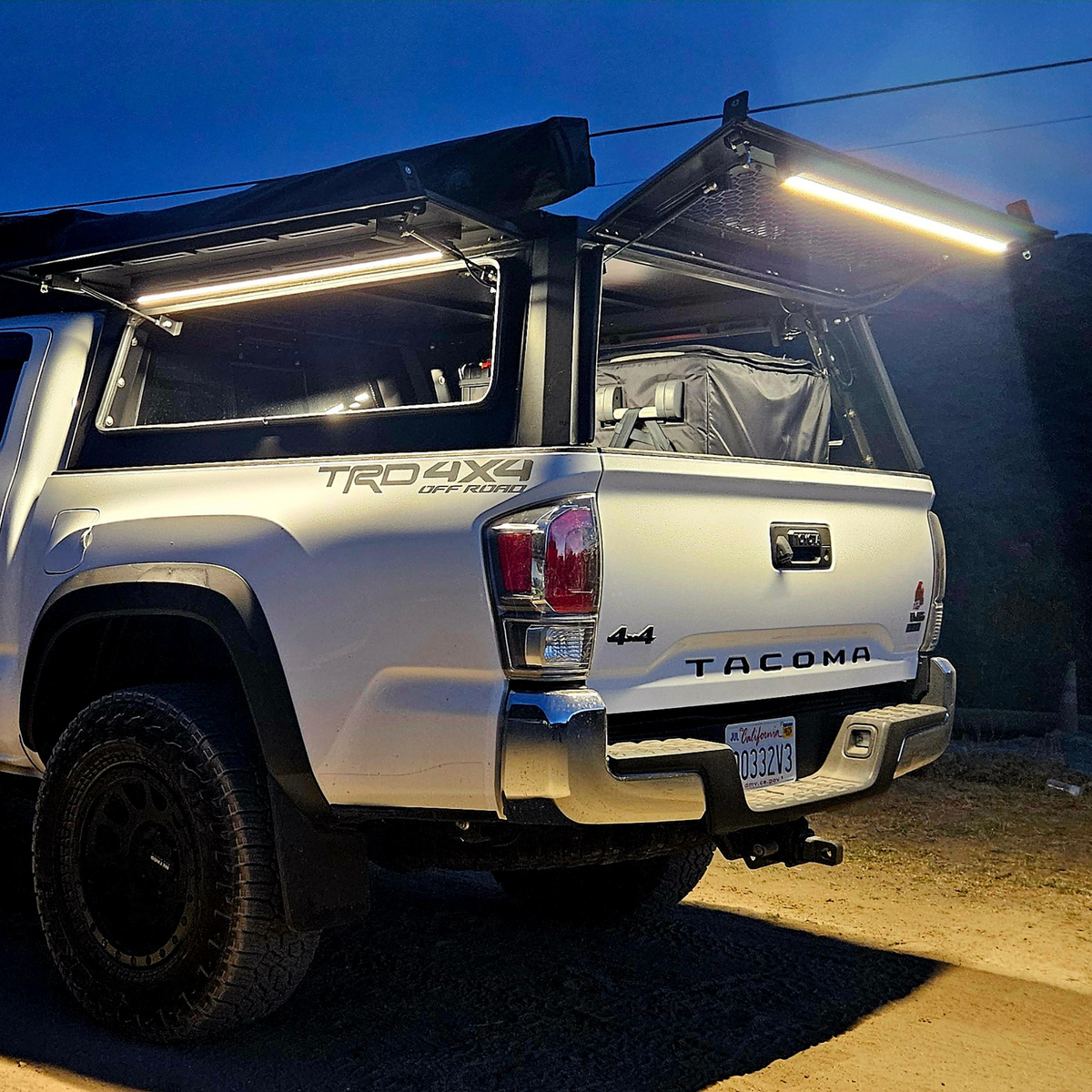

Two zones of dual-color light for your truck cap, topper, camper shell or bed rack.

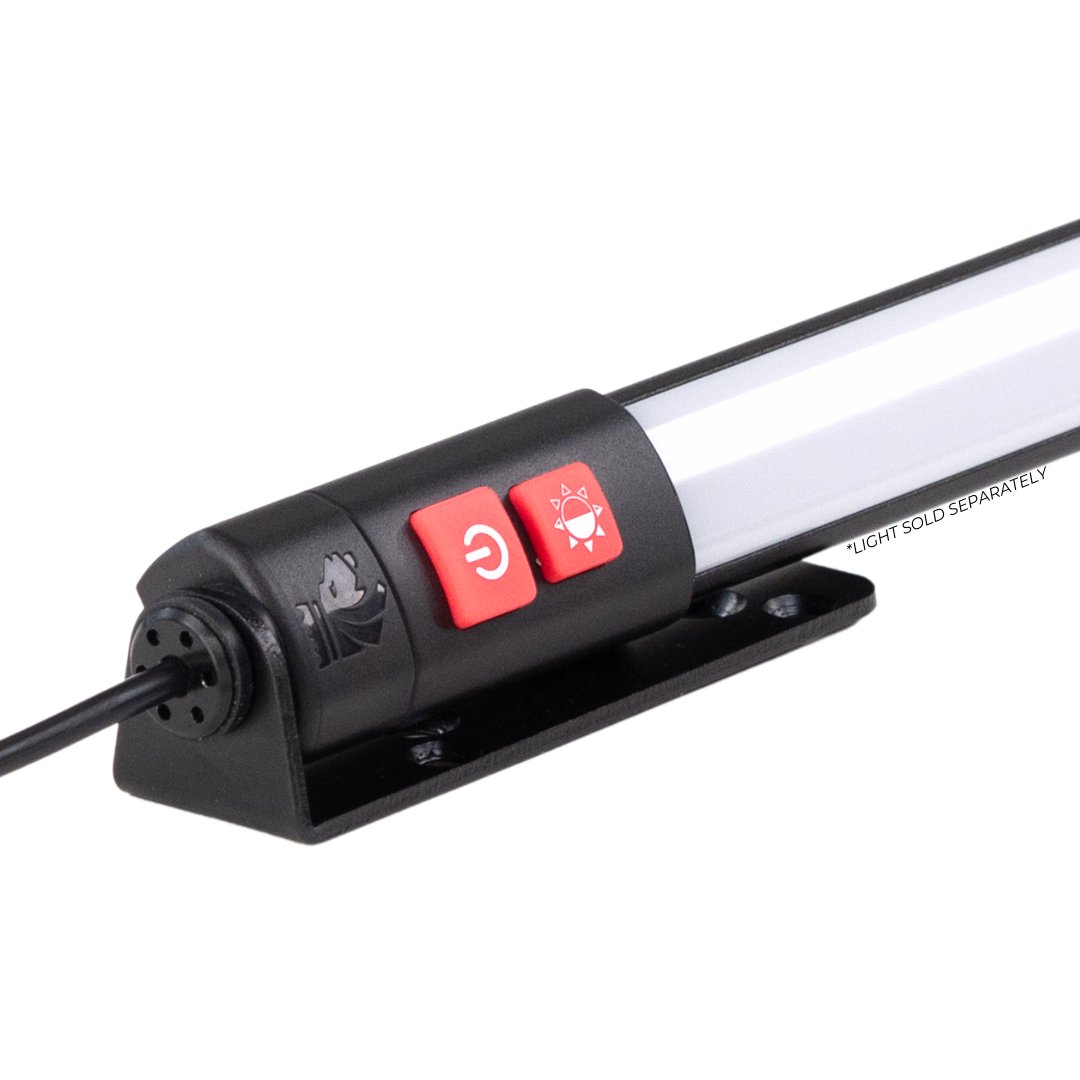

Three F-Series 40" lights switch between bright white and red. Put one on the tailgate on the Search Mounts, with its own dimmer. Put the other two on the ceiling or sides, on a second dimmer.
Power it from your starting or house battery with the included Power Supply Kit.
Mount the lights and switches, run the wire, connect it. That's it.

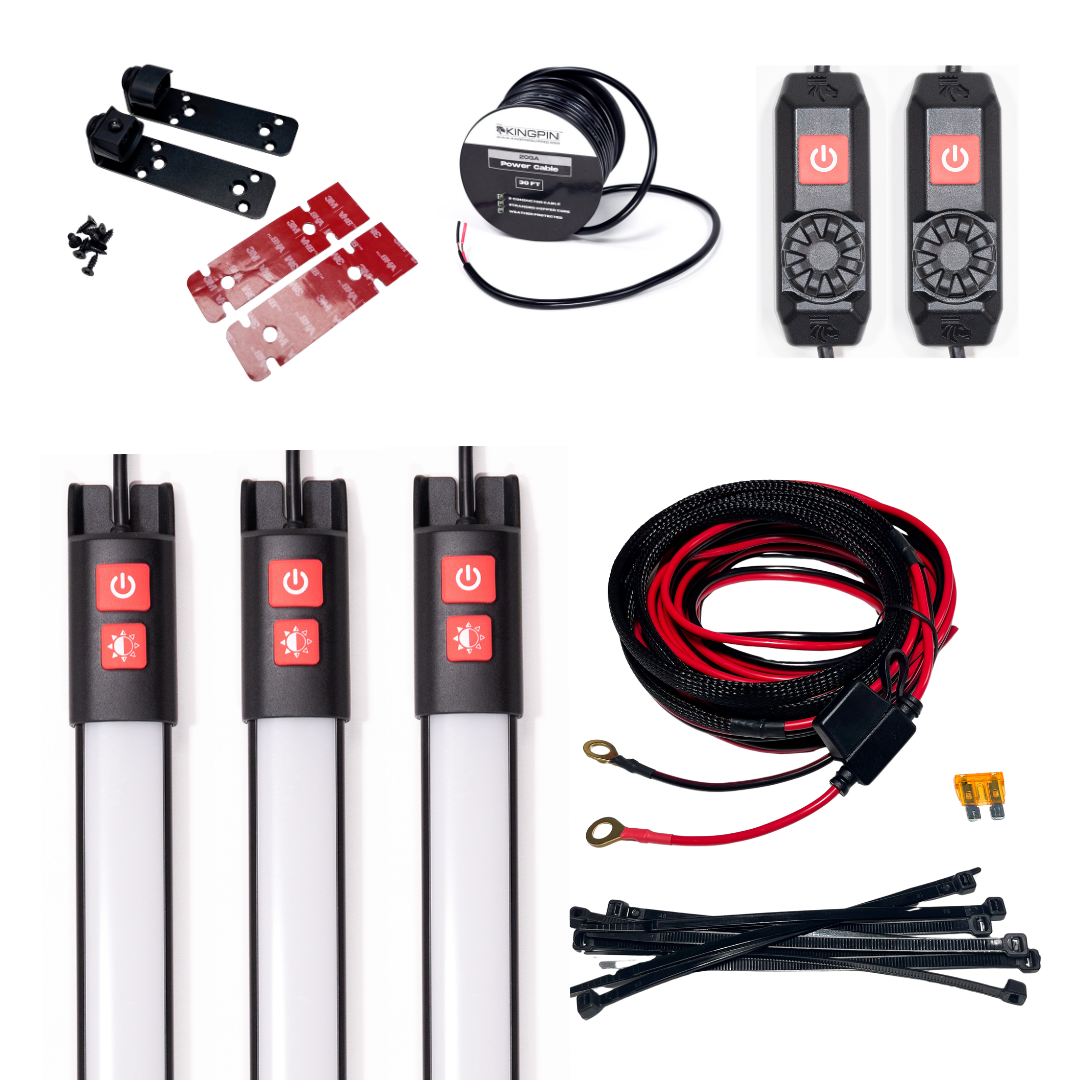

In the kit: (3x) F-Series 40" Lights, (1x) set of Search Mounts, (2x) Rotary Dimmer Switches, (1x) Power Supply Kit, (1x) Power Cable Spool.
You'll need wire strippers, connectors for 20 AWG wire and wire routing supplies.
Each zone has its own dimmer. Light just the tailgate, just the inside, or both, each at its own brightness.
Yes. Each dimmer runs up to 3 amps: 2× 40", 4× 28", 8× F-12 or 6× V-12. Add up the amps in each zone.
Wire strippers, connectors for 20 AWG wire, and wire routing supplies. They aren't in the kit.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
The whole kit draws 3.3 amps at full brightness.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
| Which truck bed kit? | Dual-color | Original |
| Lights | 3× F-40, white + red | 3× V-40, white |
| Zones | 2 | 2 |
| Switches | 2 Rotary, weatherproof | 2 Touch, inside |
| Rotation | Search Mounts on 1 light | Built into all 3 |
| Power + wire | Included | Included |
| Price | $539.99 | $439.99 |
