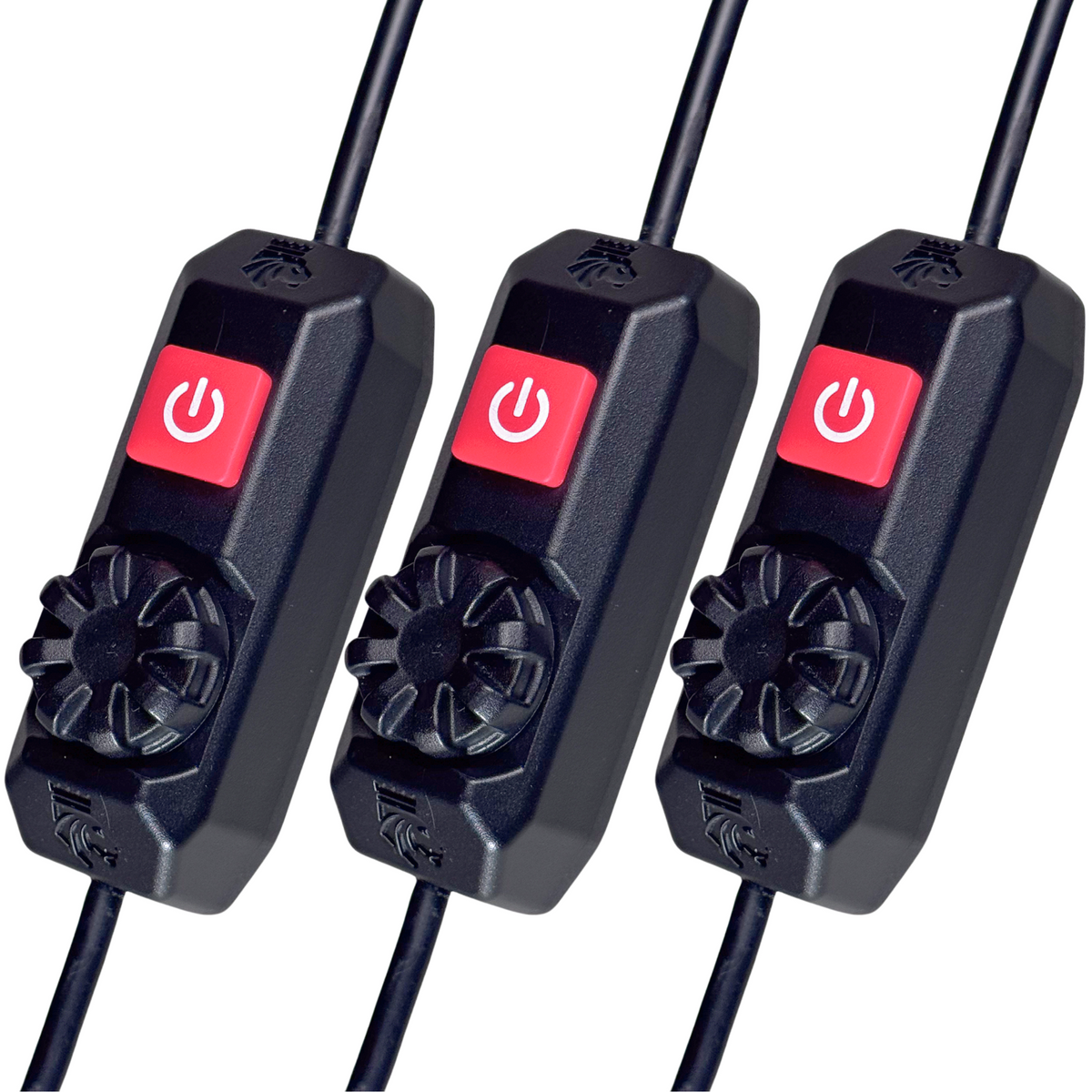

Rotary Dimmer Switch, 3-Pack
- Three switches, one for each zone
- Mount them side by side for a clean switch bank
- Weatherproof (IP54), inside or out
- Each one runs up to 3 amps of Kingpin lights
on & off
to dim
IP54
warranty
What's in the box, and what you'll need
Ready for 3 zones
- 3 Rotary Dimmer Switches
- About 6" leads on each end, 20 AWG
- 3 die-cut 3M VHB tapes, one per switch
Every Kingpin light
- F-Series and V-Series lights, mixed is fine
- Up to 3 amps per switch: 2× 40", 4× 28", 8× F-12, 6× V-12
- The F-Series red/white button still works
A few basics
- Power in at the knob end. The crowns point toward the lights.
- Wire strippers and connectors for 20 AWG wire
- Power: the 12-Volt Power Supply Kit or your own fused 12V feed
- The Power Cable if the lights are far away
On and off
A firm button with a real click. Bumps won't easily turn it on or off.
Set the brightness
Full bright to work, way down for camp. It stays where you left it.
Wire it right:Power comes in at the knob end. The crowns point toward the lights.
Built for outside
Weatherproof (IP54), so it can live on a tailgate, a trailer or a rack, not just inside.
- The button takes a firm press, so bumps won't easily flip it.
- Switches sit side by side for a clean switch bank.
- Mount it where you can reach it, even if the light is up high.
“I chose the analog rotory dial dimmer switch over the touch version mostly just for the tactile-ness of it. It functions amazing and a must have for the kingpin lighting set up, unless you like being blinded all the time lol. Also makes ease of acess to turn on the lights on and off much easier if your light is mounted high. Highly reccomend to buy, because it compliments the kingpin lights so well.”
“Mounted my light high and away so needed a remote switch. Being able to dim is a plus.”
“works great, really nice to have the dimmer. The full on is super bright, nice to have control as needed.”
Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.
Trailers & toy haulers
Mount it where you load and unload.
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| In the box | 3 switches, 3 tapes |
| Size | 2.7" L × 15/16" W × 1" H (each) |
| Power | 12V DC · 3 amps max per switch Add up the amps: F-40 1.1 · F-28 0.7 · F-12 0.3 · V-40 1.4 · V-12 0.5 |
| Controls | Click button on/off + dial dimmer |
| Button | Takes a firm press, so bumps won't easily turn the lights on or off · solid mechanical click |
| Memory | Stays at your last brightness |
| Leads | About 6" each end · 20 AWG |
| Wiring | Power IN at the knob end · crowns point toward the lights |
| Rating | Weatherproof (IP54) |
| Mounting | Die-cut 3M VHB tape (included) |
| Warranty | 2 years from ship date |
How to wire it
- Power IN at the knob end. The crowns point toward the lights.
- Every cable has 2 wires. Connect red to red and black to black.
- The yellow block is the 5A fuse on the red wire.
Full product description
Weatherproof, universal in-line LED dimmer and ON/OFF control.
The Rotary Dimmer Switch is designed for those who need direct, immediate light control in any situation, rain or shine.
The power button is designed to withstand impacts in high traffic areas without turning on or off accidentally. It produces an audible "click" sound when pressed. Rotate the dial to adjust brightness.
Switch comes with die-cut 3M VHB tape for easy mounting on any flat surface.
Kingpin crowns point toward the lights. Power comes in from the dimmer knob end. Lights connect to the power button end.
Control Capacity
12V, 3Amp Max (each)
Dimensions
2.7" L x 15/16" W x 1"T
Kingpin Pro Tip
The switch body is designed to allow for multiple switches to be mounted in a tight, side-by-side configuration. Limit controlling 2-3qty 40's or 4-6qty 12's on a single switch!
Good questions, short answers
Give each area its own switch, like the bed, the cab and the tailgate. Each switch runs up to 3 amps of lights. Mount them side by side for a clean switch bank.
The knob end. Power from the battery goes in at the knob end, and the lights connect at the button end, where the crowns point. Wired backwards, it only turns on and off and won't dim. Just swap the ends.
Up to 3 amps of lights: 2× 40", 4× F-28, 8× F-12 or 6× V-12. You can mix F- and V-Series, just add up the amps: F-40 1.1, F-28 0.7, F-12 0.3, V-40 1.4, V-12 0.5.
Yes. The dial stays where you left it, so the lights come back on at the same brightness.
No. On F-Series lights, color is set on the light. Turn the light on and pick white or red with its buttons. The dimmer then turns it on, off and dims it in that color. To switch colors, press the button on the light.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
About 6" on each end, 20 AWG, with bare wire ends, ready to connect. Add the Power Cable to reach farther.
Rotary: weatherproof (IP54), a firm click button, and a dial you can feel. Touch: small and flat, tap to turn on, hold to dim, for inside spots only (not weatherproof).
Any 12V DC source works, like a power station's 12V outlet. Most USB ports are 5V, so they won't run the light. Some higher-power USB ports may work, but we don't recommend it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| Rotary vs. Touch | Rotary | Touch |
| Control | Click button + dial | Tap on, hold to dim |
| Weather | IP54, inside or out | Inside only |
| Max load | 3 amps | 3 amps |
| Size | 2.7" × 15/16" × 1" | 1.2" × 0.75" × 0.3" |
| Price | $29.98 | $19.98 |
