Love the lights. Red keeps the bugs at bay while switching to white with a click of the button to really see in detail.
F-Series · Dual-color
F-Series 28" Light
★★★★★ 5.0 · 10 reviews
$99.99$9.95 shipping · free over $300
Length Which size do I need?
- Bright white + red in one light
- Built-in buttons, no switch needed
- Weatherproof (IP54)
- Sips power: 0.7 amps at full brightness
Add what most people add
$9.95 shipping · free over $300
2-year warranty
10% off military & first responders
“These lights are great paired with a dimmer switch. These fit perfectly on my teardrop galley door.”Mel T. · Verified buyer
F-Series 28" Light$99.99
White + red
in one light
in one light
Built-in on/off
+ color buttons
+ color buttons
Weatherproof
all conditions
all conditions
2-year
warranty
warranty
What you get
What's in the box, and what you'll need
In the box
Ready to mount
- F-Series 28" light (28" × 1.13" × 0.85")
- 28" power lead, 20 AWG
- 3M VHB tape and screws, so you can mount it either way
- On/off + color buttons built in, so no switch needed
Most people add
Aim it & dim it
- Search Mounts, sold separately. Turn the light 360°.
- Rotary Dimmer, weatherproof. Up to 4× 28" per switch.
Power & wiring
12V DC
- Truck battery, camper battery, or a power station's 12V outlet
- 0.7 amps at full brightness. Run it for hours and still start up and leave.
- No wiring kit? Add the 12-Volt Power Supply Kit (25 ft, fused).
- You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.

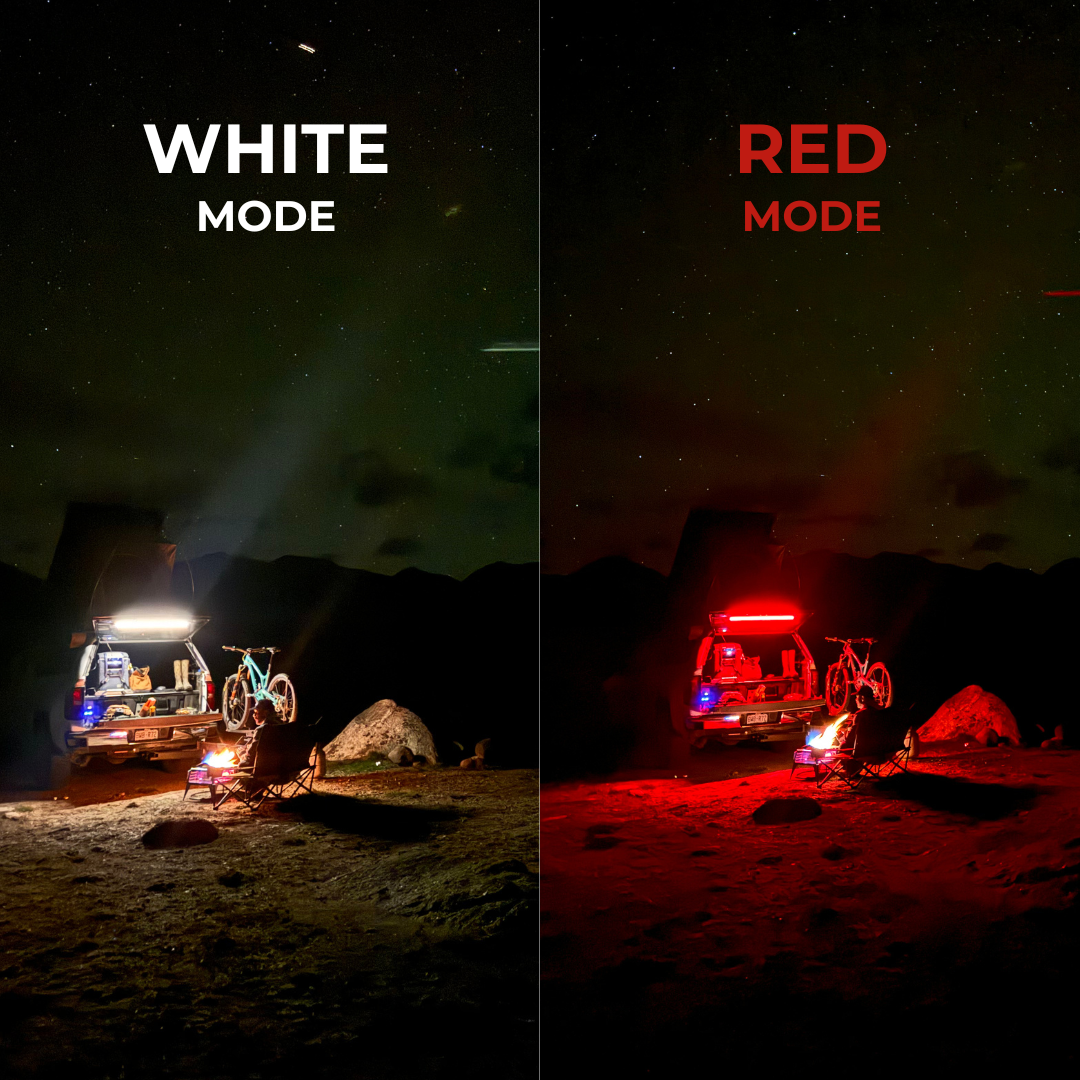

Work mode
White
4000K neutral white. See your gear, load up, work late.
Night mode
Red
Easy on your night vision. Camp, hunt, and late nights.
Your pick:Set white or red as the start-up color. Press power and it comes on in that color every time.
The light
Bright, not blinding
Every Kingpin light has a thick, diffused lens. It spreads the light out into one smooth, even glow, and protects the light from hard knocks.
- No bright hot spots. The whole bar glows evenly.
- No harsh glare, so it's comfortable to look at, even up close.
- Soft, even light on your gear, with fewer hard shadows.
5.0
★★★★★
10 reviews for the F-Series 28" Light
★★★★★
“Love the lights. Red keeps the bugs at bay while switching to white with a click of the button to really see in detail.”
Ryan S.Verified buyer
★★★★★
“Paired with the rotary dimmer switch and swivel brackets this thing is amazing. White light if needed i mostly keep it on red light so i dont blind the deer at night with the white light. Wish i knew how to attach photos thing is great.”
Nathan C.Verified buyer
★★★★★
“Absolutely love this light!!! We do a lot of off-roading and camping and this light was one of the best additions to our gear! Everything from dim to super bright!!! Can rotate the light in or out of the Jeep.... and the red light helps keep the bugs at bay!”
Christopher G.Verified buyer
Tailgate
Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.
Towables
Trailers & toy haulers
Mount it where you load and unload.
Work
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
Specs
The details
| Size | 28" L × 1.13" W × 0.85" H On Search Mounts: about 1" longer and 1.375" tall |
| Power | 12V DC · 0.7 amps / 8 W at full brightness |
| Color | 4000K neutral white + red |
| Controls | Built-in on/off + color buttons · dims with any Kingpin dimmer |
| Lead | 28" · 20 AWG |
| Rating | Weatherproof (IP54) |
| Build | Extruded aluminum body · polycarbonate lens · UV-stable end caps |
| Mounting | 3M VHB tape and screws included (use either) · Search Mounts sold separately |
| Warranty | 2 years from ship date |
Wiring & install
How to wire it
Red = + positive Black = − ground
- Every cable has 2 wires. Connect red to red and black to black.
- Where the lights meet, the 3 reds join and the 3 blacks join.
- The yellow block is the 5A fuse on the red wire.
4 × 28" lights = 2.8 amps
✓ Under the 3 amp switch limitUp to 2× 40" or 8× 12" per switch
Full wiring guideHow many lights go on one switch, which end gets power, and real installs from customers.
Full product description
The F-Series 28" Light is a dual-color 12V LED light with bright 4000K white and red in one slim fixture. Use white to find gear or work late. Switch to red to keep your night vision or draw fewer bugs.
Built-in buttons turn it on and change the color, so you don't need a separate switch. It's weatherproof (IP54) and built for trucks, campers, trailers and vans, inside or out.
It comes with 3M VHB tape and screws, so you can mount it either way. Search Mounts (sold separately) let you turn it 360°.
It runs on 12V DC and draws 0.7 amps at full brightness. Add a Kingpin dimmer to set the brightness. One switch runs up to four 28" lights.
Size: 28" × 1.13" × 0.85". Designed & Engineered in Colorado.
Questions
Good questions, short answers
Up to 2× 40", 4× 28" or 8× 12" lights per switch. Each switch handles 3 amps, so add up the amps: F-40 is 1.1, F-28 is 0.7, F-12 is 0.3.
Yes. Kingpin lights are a universal fit, and they mount inside or outside (weatherproof, IP54). Each one comes with 3M VHB tape and screws. Measure the spot first. F-Series lights are true to length: the 28" light is 28" from end to end. The screw holes sit about ¼" to ⅜" in from each end. On Search Mounts, each bracket is 4" long, and the light is about 1" longer and 1.375" tall.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
It's very efficient: 0.7 amps at full brightness. Run it for hours off your starting battery and still start up and leave.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
The light comes with 3M VHB tape and screws, so you can use either one. Search Mounts (360° rotation) are sold separately. Add them above.
No. Tape and screws come in the box. The 3M VHB tape holds on glass, topper doors and smooth panels if you prep the spot: clean it, scuff it lightly, wipe it with rubbing alcohol, then wipe on 3M Primer 94. Most toppers also have a reinforced ceiling for mounting lights. Carpet-lined caps have plywood under the carpet, so use the screws there.
No. On F-Series lights, color is set on the light. Turn the light on and pick white or red with its buttons. The dimmer then turns it on, off and dims it in that color. To switch colors, press the button on the light.
Any 12V DC source works, like a power station's 12V outlet. Most USB ports are 5V, so they won't run the light. Some higher-power USB ports may work, but we don't recommend it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Pairs with
Finish the setup
F-Series
F-Series Search Mounts360° turn. Tape + screws included.$29.99+ Add
Controls
Rotary Dimmer SwitchWeatherproof. 3 amp max.$29.98+ Add
Power
12-Volt Power Supply Kit25 ft, 14 AWG, 5A fuse.$58.99+ Add
Power
Power Cable, 20GA30 ft spool. 20 AWG, 2-wire, tinned copper.$26.99+ Add
| Compare lengths | 12" | 28" | 40" |
| Size (L × W × H) | 12" × 1.13" × 0.85" | 28" × 1.13" × 0.85" | 40" × 1.13" × 0.85" |
| Best for | Cabs, doors, small boxes | Mid beds, shells | Full beds, hatches, trailers |
| Power | 0.3 amps | 0.7 amps | 1.1 amps |
| Per switch | up to 8 | up to 4 | up to 2 |
| Price | $74.99 | $99.99 | $129.99 |
