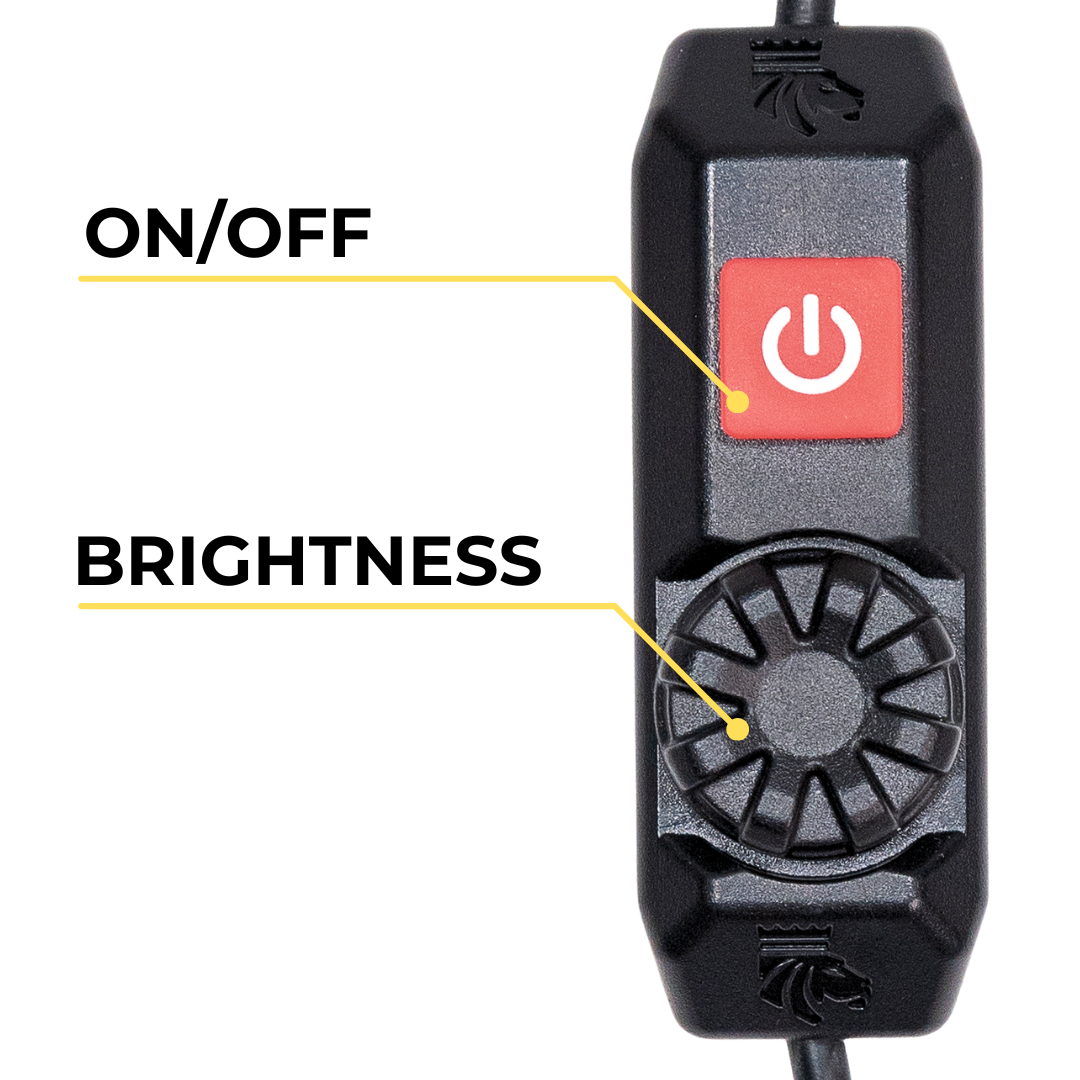

Kingpin Rotary Dimmer Switch: on/off button and brightness dial labeled

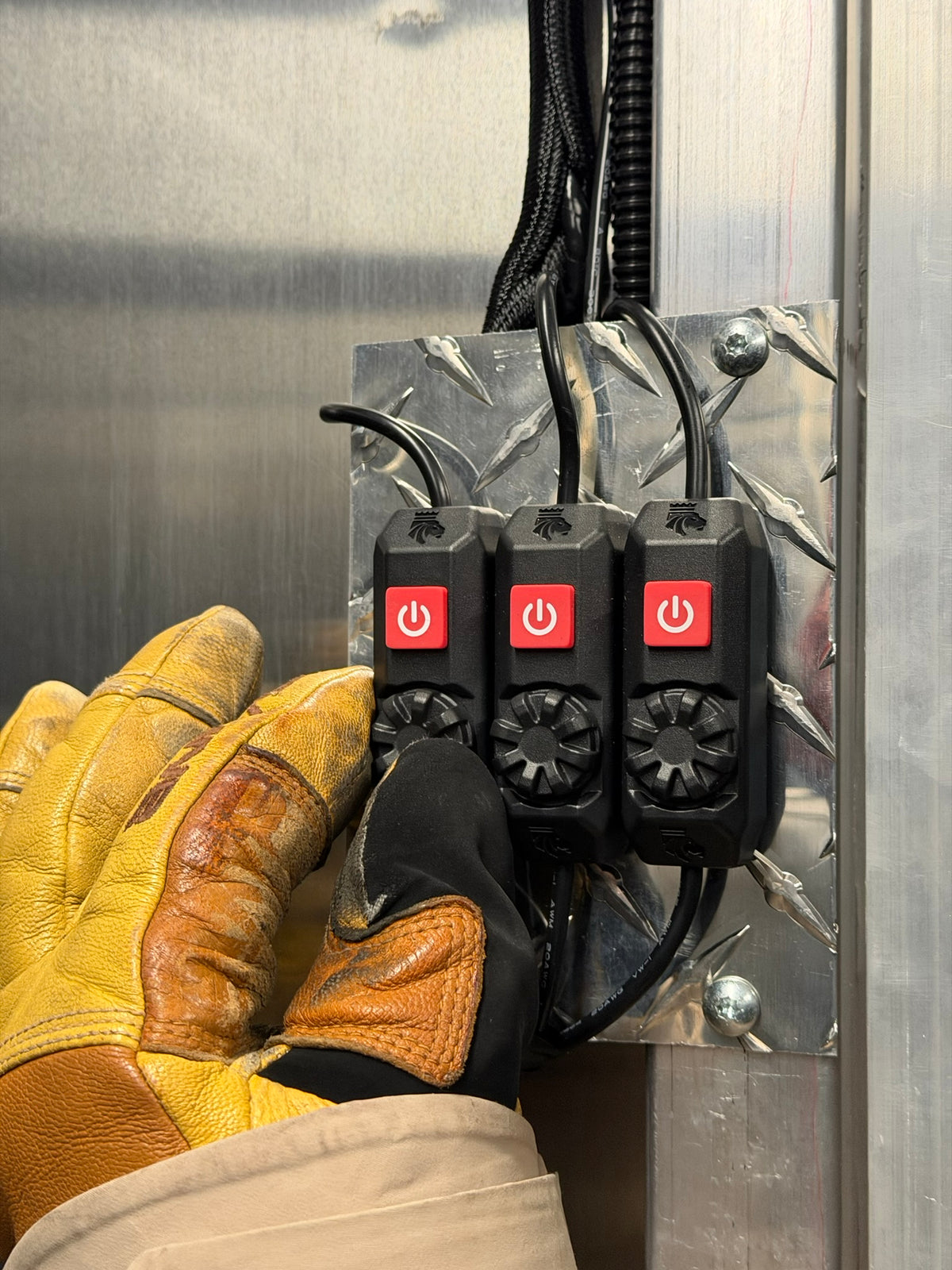

Gloved hand on three Kingpin Rotary Dimmer Switches mounted side by side

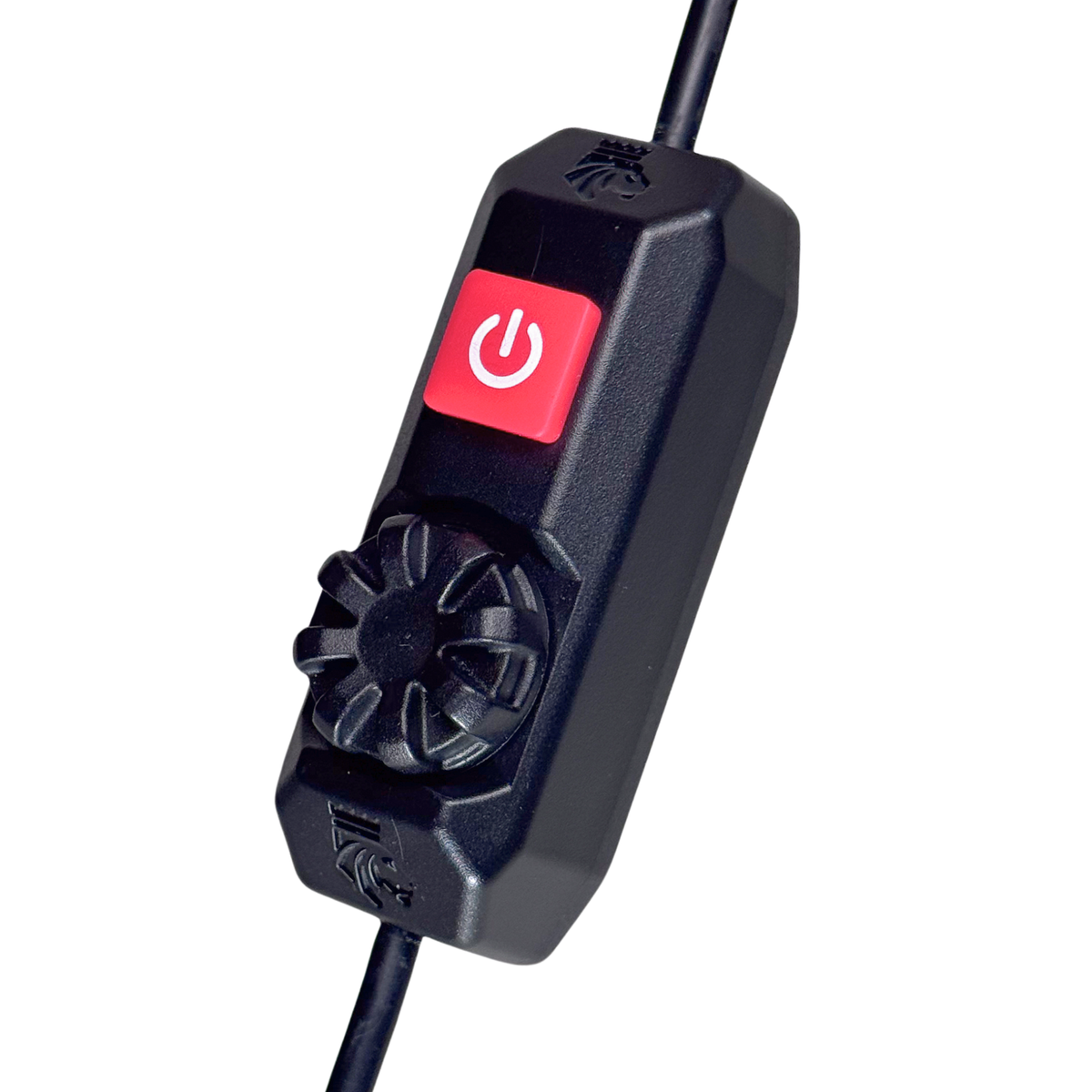

Kingpin Rotary Dimmer Switch with its leads, angled view

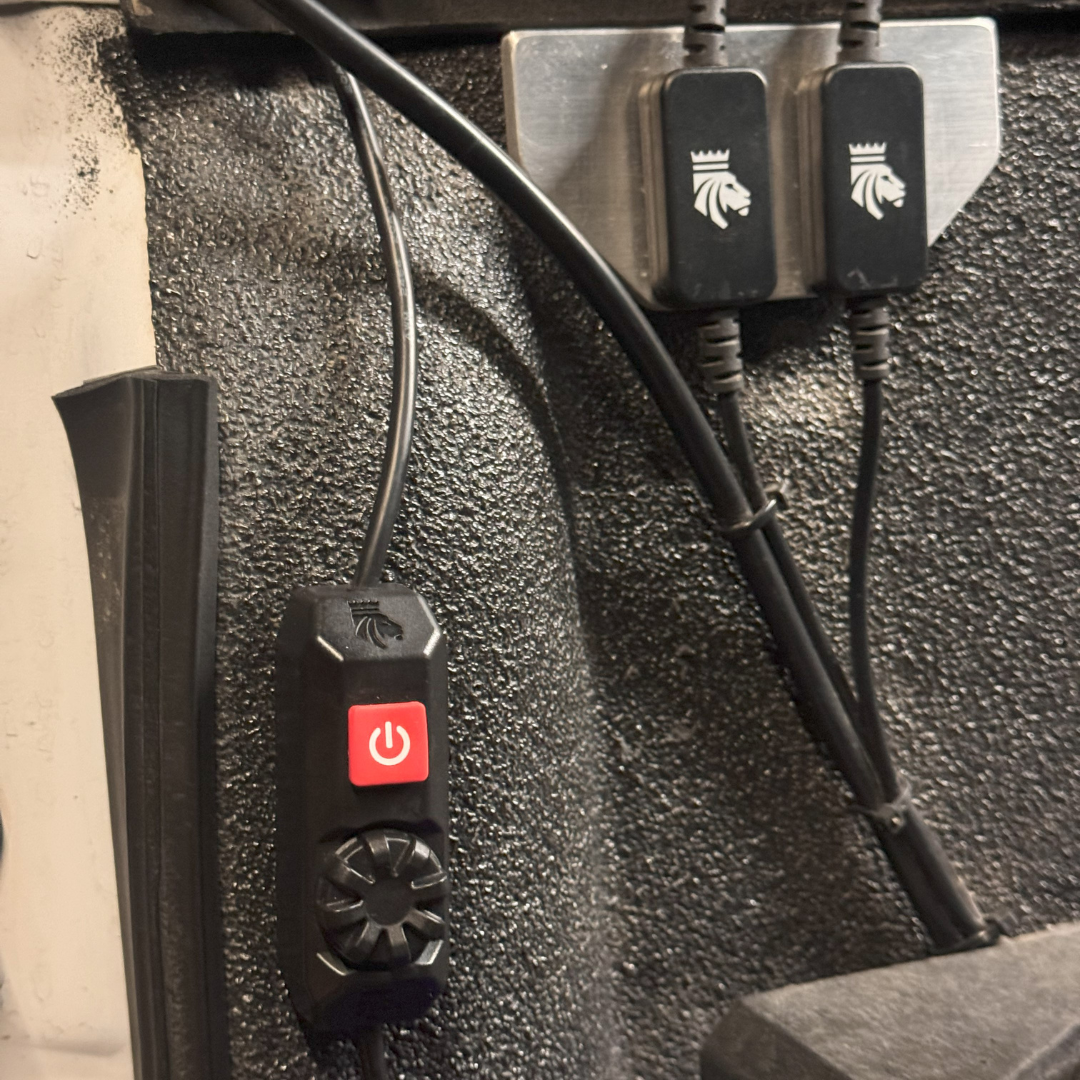

Kingpin Rotary Dimmer Switch and two Touch Dimmers mounted in a truck cap

Controls · Rotary dimmer

Rotary Dimmer Switch

Name: Rotary Dimmer Switch
Brand: Kingpin
SKU: LSRDSW
Price: 29.98 USD
Availability: InStock
Rating: 4.8 (55 reviews)

★★★★★ 4.8 · 55 reviews

$29.98$9.95 shipping · free over $300

How many

1 switch$29.98 3-Pack$79.98 · Save $9.96

Click on and off, turn to dim
Weatherproof (IP54), inside or out
Runs up to 3 amps of Kingpin lights
Remembers your brightness

Wire it up

How to wire it: see the wiring guide →

$9.95 shipping · free over $300

2-year warranty

10% off military & first responders

Want it all in one click?F-Series 40" Light Kit: light, mounts, dimmer and wire.

$199.99 →

“I do like the dimmer it is nice and the button is big enough its easy to find and easy to turn on. Dimmer knob is great. Dont stick way out and does what it should. Good product there.”Justin S. · Verified buyer

Rotary Dimmer Switch$29.98

Click
on & off

Turn
to dim

Weatherproof
IP54

2-year
warranty

What you get

What's in the box, and what you'll need

In the box

Ready to stick on

Rotary Dimmer Switch
About 6" leads on each end, 20 AWG
Die-cut 3M VHB tape

Works with

Every Kingpin light

F-Series and V-Series lights, mixed is fine
Up to 3 amps per switch: 2× 40", 4× 28", 8× F-12, 6× V-12
The F-Series red/white button still works

You'll need

A few basics

Power in at the knob end. The crowns point toward the lights.
Wire strippers and connectors for 20 AWG wire
Power: the 12-Volt Power Supply Kit or your own fused 12V feed
The Power Cable if the lights are far away

Click it
On and off
A firm button with a real click. Bumps won't easily turn it on or off.

Turn it
Set the brightness
Full bright to work, way down for camp. It stays where you left it.

Wire it right:Power comes in at the knob end. The crowns point toward the lights.

Weatherproof

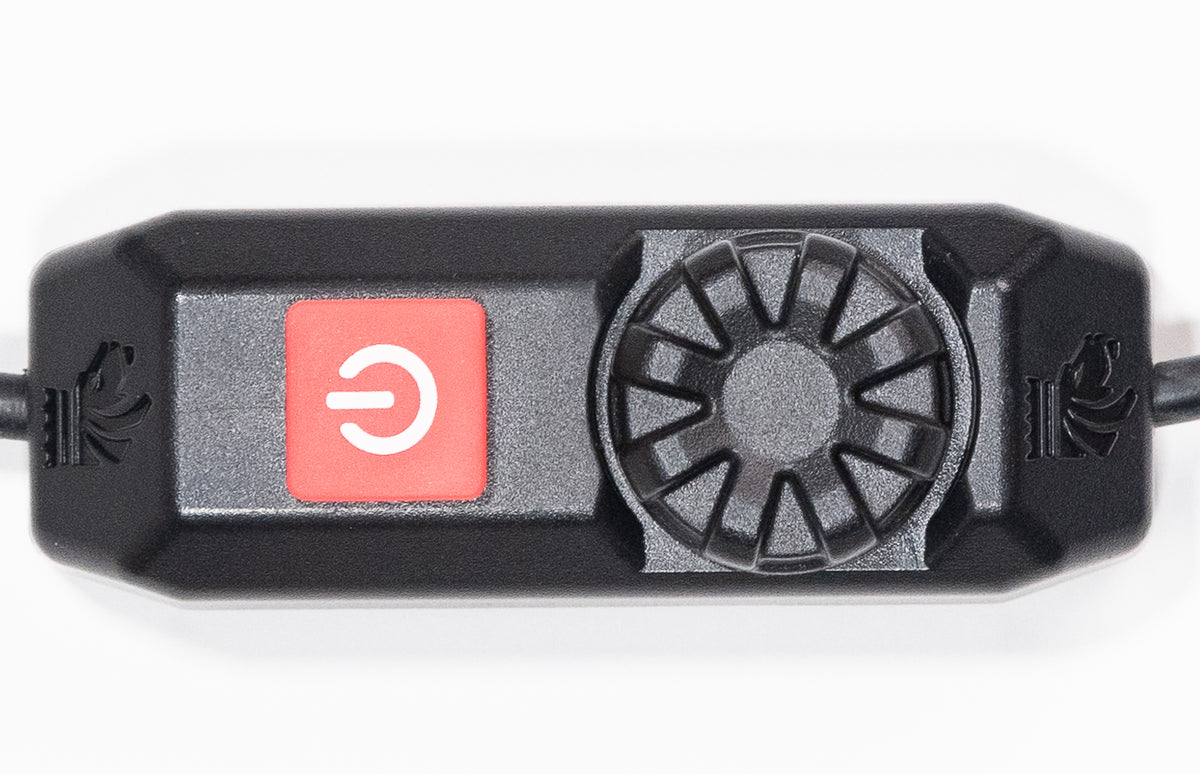

Built for outside

Weatherproof (IP54), so it can live on a tailgate, a trailer or a rack, not just inside.

The button takes a firm press, so bumps won't easily flip it.
Switches sit side by side for a clean switch bank.
Mount it where you can reach it, even if the light is up high.

4.8

★★★★★

55 reviews for the Rotary Dimmer Switch

★★★★★

“I chose the analog rotory dial dimmer switch over the touch version mostly just for the tactile-ness of it. It functions amazing and a must have for the kingpin lighting set up, unless you like being blinded all the time lol. Also makes ease of acess to turn on the lights on and off much easier if your light is mounted high. Highly reccomend to buy, because it compliments the kingpin lights so well.”

Tony U.Verified buyer

★★★★★

“Mounted my light high and away so needed a remote switch. Being able to dim is a plus.”

Nathan C.Verified buyer

★★★★★

“works great, really nice to have the dimmer. The full on is super bright, nice to have control as needed.”

Edward M.Verified buyer

Read all reviews

Tailgate
Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.

Towables
Trailers & toy haulers
Mount it where you load and unload.

Work
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.

Specs

The details

Size	2.7" L × 15/16" W × 1" H
Power	12V DC · 3 amps max Add up the amps: F-40 1.1 · F-28 0.7 · F-12 0.3 · V-40 1.4 · V-12 0.5
Controls	Click button on/off + dial dimmer
Button	Takes a firm press, so bumps won't easily turn the lights on or off · solid mechanical click
Memory	Stays at your last brightness
Leads	About 6" each end · 20 AWG
Wiring	Power IN at the knob end · crowns point toward the lights
Rating	Weatherproof (IP54)
Mounting	Die-cut 3M VHB tape (included)
Warranty	2 years from ship date

Wiring

How to wire it

Red = + positive Black = − ground

Power IN at the knob end. The crowns point toward the lights.
Every cable has 2 wires. Connect red to red and black to black.
The yellow block is the 5A fuse on the red wire.

3 amps max per switch

✓ Add up the ampsF-40 1.1 · F-28 0.7 · F-12 0.3 · V-40 1.4 · V-12 0.5

Full wiring guideHow many lights go on one switch, which end gets power, and real installs from customers.

Small off-road trailer at night lit by Kingpin F-Series lights

On the road

Set it up once. Use it every trip.

Mount it inside or outside. The 3M tape comes in the box.

Full product description

A weatherproof (IP54) dimmer for inside or outside. Click the button to turn your lights on or off, and turn the dial to set the brightness. It stays at your last brightness.

The button takes a firm press with a solid click, so bumps won't easily turn your lights on or off.

It works with every Kingpin light, F-Series and V-Series, mixed is fine. Each switch handles up to 3 amps: two 40" lights, four 28" lights, eight F-Series 12" lights, or six V-Series 12" lights. On F-Series lights, the red/white button still works.

It mounts on any flat surface with the included die-cut 3M VHB tape. Size: 2.7" × 15/16" × 1", with about 6" of 20 AWG lead on each end.

Install tip: power comes in at the knob end, and the crowns point toward the lights.

Questions

Good questions, short answers

The knob end. Power from the battery goes in at the knob end, and the lights connect at the button end, where the crowns point. Wired backwards, it only turns on and off and won't dim. Just swap the ends.

Up to 3 amps of lights: 2× 40", 4× F-28, 8× F-12 or 6× V-12. You can mix F- and V-Series, just add up the amps: F-40 1.1, F-28 0.7, F-12 0.3, V-40 1.4, V-12 0.5.

It's not likely. The button takes a good, firm press, so a bump won't easily turn the lights on or off. You'll hear a solid mechanical click when you press it.

Yes. The dial stays where you left it, so the lights come back on at the same brightness.

No. On F-Series lights, color is set on the light. Turn the light on and pick white or red with its buttons. The dimmer then turns it on, off and dims it in that color. To switch colors, press the button on the light.

Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.

About 6" on each end, 20 AWG, with bare wire ends, ready to connect. Add the Power Cable to reach farther.

Rotary: weatherproof (IP54), a firm click button, and a dial you can feel. Touch: small and flat, tap to turn on, hold to dim, for inside spots only (not weatherproof).

Any 12V DC source works, like a power station's 12V outlet. Most USB ports are 5V, so they won't run the light. Some higher-power USB ports may work, but we don't recommend it.

2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.

More wiring questions? See the full wiring guide

Pairs with

Finish the setup

F-Series

F-Series 40" LightFull beds, hatches, trailers.

$129.99+ Add

F-Series

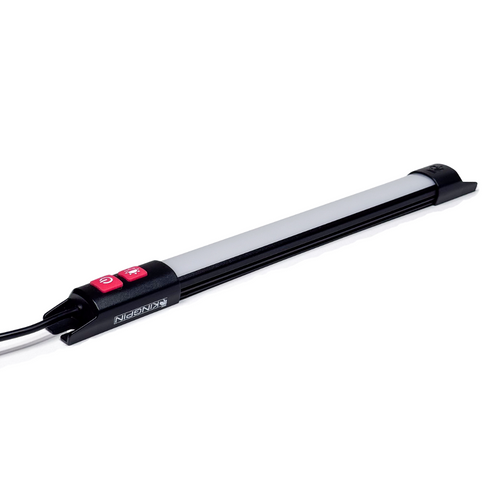

F-Series 12" LightCabs, doors, small boxes.

$74.99+ Add

Power

12-Volt Power Supply Kit25 ft, 14 AWG, 5A fuse.

$58.99+ Add

Power

Power Cable, 20GA30 ft spool. 20 AWG, 2-wire, tinned copper.

$26.99+ Add

Rotary vs. Touch	Rotary	Touch
Control	Click button + dial	Tap on, hold to dim
Weather	IP54, inside or out	Inside only
Max load	3 amps	3 amps
Size	2.7" × 15/16" × 1"	1.2" × 0.75" × 0.3"
Price	$29.98	$19.98
