F-Series · Dual-color
F-Series 12" Light
★★★★★ 4.9 · 56 reviews
$74.99$9.95 shipping · free over $300
Length Which size do I need?
- Bright white + red in one light
- Built-in buttons, no switch needed
- Weatherproof (IP54)
- Sips power: 0.3 amps at full brightness
Add what most people add
$9.95 shipping · free over $300
2-year warranty
10% off military & first responders
“The 12” F series light with the brackets and dimmer is the perfect solution to the poor lighting in the Bronco. This is what I have been searching for. The red light mode is a real bonus. Well worth it.”Timothy C. · Verified buyer
F-Series 12" Light$74.99
White + red
in one light
in one light
Built-in on/off
+ color buttons
+ color buttons
Weatherproof
all conditions
all conditions
2-year
warranty
warranty
What you get
What's in the box, and what you'll need
In the box
Ready to mount
- F-Series 12" light (12" × 1.13" × 0.85")
- 12" power lead, 20 AWG
- 3M VHB tape and screws, so you can mount it either way
- On/off + color buttons built in, so no switch needed
Most people add
Aim it & dim it
- Search Mounts, sold separately. Turn the light 360°.
- Rotary Dimmer, weatherproof. Up to 8× 12" per switch.
- Or get the F-12 Light Kit with it all.
Power & wiring
12V DC
- Truck battery, camper battery, or a power station's 12V outlet
- 0.3 amps at full brightness. Run it for hours and still start up and leave.
- No wiring kit? Add the 12-Volt Power Supply Kit (25 ft, fused).
- You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.
Work mode
White
4000K neutral white. See your gear, load up, work late.
Night mode
Red
Easy on your night vision. Camp, hunt, and late nights.
Your pick:Set white or red as the start-up color. Press power and it comes on in that color every time.
The light
Bright, not blinding
Every Kingpin light has a thick, diffused lens. It spreads the light out into one smooth, even glow, and protects the light from hard knocks.
- No bright hot spots. The whole bar glows evenly.
- No harsh glare, so it's comfortable to look at, even up close.
- Soft, even light on your gear, with fewer hard shadows.
4.9
★★★★★
56 reviews for the F-Series 12" Light
★★★★★
“I put 2 of the 12inch lights under my rtt to light up the truck bed area. Super bright lights. Love these things. Easy install, if you can run wire, you can install these.”
Christopher L.Verified buyer
★★★★★
“Mounted the 12in lights and mounting brackets on the rear doors of my van. Gives a lot of extra light inside and outside the van. Well made quality lights. Easy to mount, and work great.”
James L.Verified buyer
★★★★★
“The installation for this light was extremely easy. I have a WildTop soft topper which has an 80/20 frame, this allowed for the use of t-nuts, making the installation seamless in almost any location I wanted. I am also using a motorcycle battery that is mounted in a Decked system for power. I have run this light for hours with no issues or worries about draining the battery. I would recommend this product to anyone looking for a great lighting solution almost anywhere!”
Loren F.Verified buyer
Tailgate
Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.
Towables
Trailers & toy haulers
Mount it where you load and unload.
Work
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
Specs
The details
| Size | 12" L × 1.13" W × 0.85" H On Search Mounts: about 1" longer and 1.375" tall |
| Power | 12V DC · 0.3 amps / 4 W at full brightness |
| Color | 4000K neutral white + red |
| Controls | Built-in on/off + color buttons · dims with any Kingpin dimmer |
| Lead | 12" · 20 AWG |
| Rating | Weatherproof (IP54) |
| Build | Extruded aluminum body · polycarbonate lens · UV-stable end caps |
| Mounting | 3M VHB tape and screws included (use either) · Search Mounts sold separately |
| Warranty | 2 years from ship date |
Wiring & install
How to wire it
Red = + positive Black = − ground
- Every cable has 2 wires. Connect red to red and black to black.
- Where the lights meet, the 3 reds join and the 3 blacks join.
- The yellow block is the 5A fuse on the red wire.
8 × 12" lights = 2.4 amps
✓ Under the 3 amp switch limitUp to 2× 40" or 8× 12" per switch
Full wiring guideHow many lights go on one switch, which end gets power, and real installs from customers.
Full product description
The F-Series 12" Light is a dual-color 12V LED light with bright 4000K white and red in one slim fixture. Use white to find gear or work late. Switch to red to keep your night vision or draw fewer bugs.
Built-in buttons turn it on and change the color, so you don't need a separate switch. It's weatherproof (IP54) and built for trucks, campers, trailers and vans, inside or out.
It comes with 3M VHB tape and screws, so you can mount it either way. Search Mounts (sold separately) let you turn it 360°.
It runs on 12V DC and draws 0.3 amps at full brightness. Add a Kingpin dimmer to set the brightness. One switch runs up to eight 12" lights.
Size: 12" × 1.13" × 0.85". Designed & Engineered in Colorado.
Want it all in one box? See the F-Series 12" Light Kit.
Questions
Good questions, short answers
Up to 2× 40", 4× 28" or 8× 12" lights per switch. Each switch handles 3 amps, so add up the amps: F-40 is 1.1, F-28 is 0.7, F-12 is 0.3.
Yes. Kingpin lights are a universal fit, and they mount inside or outside (weatherproof, IP54). Each one comes with 3M VHB tape and screws. Measure the spot first. F-Series lights are true to length: the 12" light is 12" from end to end. The screw holes sit about ¼" to ⅜" in from each end. On Search Mounts, each bracket is 4" long, and the light is about 1" longer and 1.375" tall.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
It's very efficient: 0.3 amps at full brightness. Run it for hours off your starting battery and still start up and leave.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
The light comes with 3M VHB tape and screws, so you can use either one. Search Mounts (360° rotation) are sold separately. Add them above, or get the F-Series 12" Light Kit.
No. Tape and screws come in the box. The 3M VHB tape holds on glass, topper doors and smooth panels if you prep the spot: clean it, scuff it lightly, wipe it with rubbing alcohol, then wipe on 3M Primer 94. Most toppers also have a reinforced ceiling for mounting lights. Carpet-lined caps have plywood under the carpet, so use the screws there.
No. On F-Series lights, color is set on the light. Turn the light on and pick white or red with its buttons. The dimmer then turns it on, off and dims it in that color. To switch colors, press the button on the light.
Any 12V DC source works, like a power station's 12V outlet. Most USB ports are 5V, so they won't run the light. Some higher-power USB ports may work, but we don't recommend it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Pairs with
Finish the setup
F-Series
F-Series Search Mounts360° turn. Tape + screws included.$29.99+ Add
Controls
Rotary Dimmer SwitchWeatherproof. 3 amp max.$29.98+ Add
Power
12-Volt Power Supply Kit25 ft, 14 AWG, 5A fuse.$58.99+ Add
Kit
Kingpin™ F-Series 12" Light KitLight, mounts, dimmer, wire.$149.99View
| Compare lengths | 12" | 28" | 40" |
| Size (L × W × H) | 12" × 1.13" × 0.85" | 28" × 1.13" × 0.85" | 40" × 1.13" × 0.85" |
| Best for | Cabs, doors, small boxes | Mid beds, shells | Full beds, hatches, trailers |
| Power | 0.3 amps | 0.7 amps | 1.1 amps |
| Per switch | up to 8 | up to 4 | up to 2 |
| Price | $74.99 | $99.99 | $129.99 |
Trusted by
Builders and outfitters
Customer Reviews
Overall rating: 4.9 / 5 from 56 reviews.
These things are just what I’ve been looking for. I’m not much for reviews unless something is really that great and let me tell you, these lights are it! Super bright for how small they are and having the switch and light controls built in is super handy. Will definitely get more at some point, probably bigger, definitely a must have for a truck/outdoor enthusiast!
This is my 2nd light, one in my 94 4Runner and one in my 25 Ram 2500 work truck topper Best in the business, holds up to serious abuse
12” F-series is a serious light source! I love how it illuminates my enclosed cargo space!
These things are awesome! I have 4 in my Tacoma and 2 in my Wrangler. I really like the ability to switch between red and white light. Quality is absolutely unbeatable!
I've been a huge fan of Kingpin lighting! This time, I've installed them inside the gullwing doors on my truck cap. Thank you for the fairly priced quality products!!
Fun Project. I used full loom wire protector and installed a 6 way fused terminal block with an integrated ground. This made it easy to install a USB charger with a battery monitor at the same time, on a separate circuit. I'm also planning on using another circuit for custom lock actuators for my diamondback cover.
Great product, easy set up and shines bright.
Excellent light, will be ordering more and recommend them around the overland space!

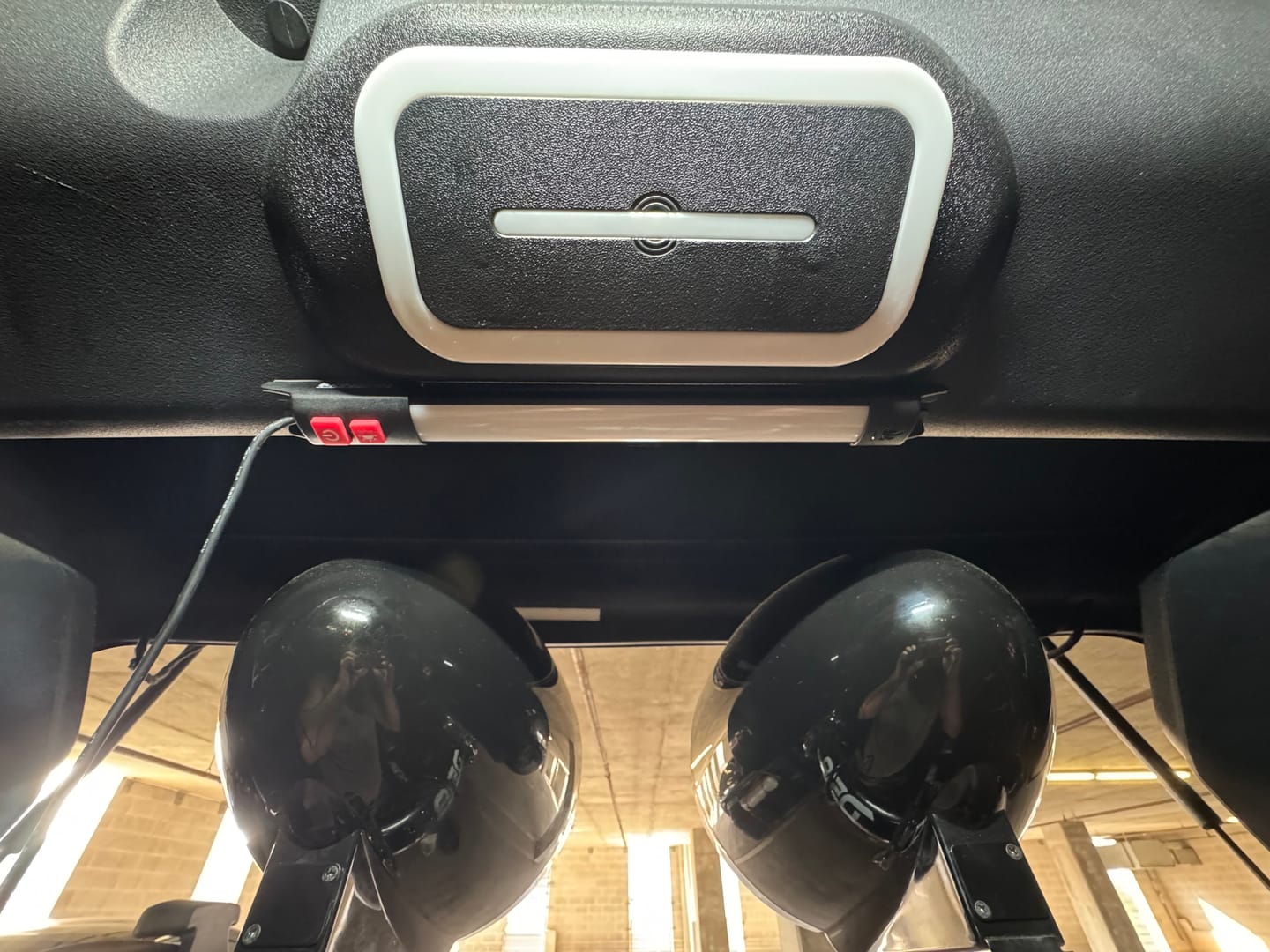

Awesome light I installed this one in my Side x side and its awesome in fact I bought another one to but in the back seat and they work very well. I also bought the mounts so that we can turn them or roll them for more light as we need it.
Good product high quality lights
The 12” F series light with the brackets and dimmer is the perfect solution to the poor lighting in the Bronco. This is what I have been searching for. The red light mode is a real bonus. Well worth it.
Frankly, I’m always a little shocked (no pun intended) when I wire up something with half a dozen connections and it works the first time. Anyhoo - wired up a little Kingpin strip to light up the interior and I’m digging it. I had previously bought an AIGMUX dome light thing and it was decent, but wanted a bit more oomph. Since the Kingpin is wired into the 12v cig lighter, it only works when the vehicle is on, but figured that’s fine - the AigMux gives enough light when it’s off. Cool thing about the Kingpin is that the V version has a red light option. Some install pics below.
I needed some light for my bed rack and the Kingpin F-Series 12" light was just the right size. I pop riveted some magnets to the mounts and just stuck it to the rack. Works great and provides a lot of light.

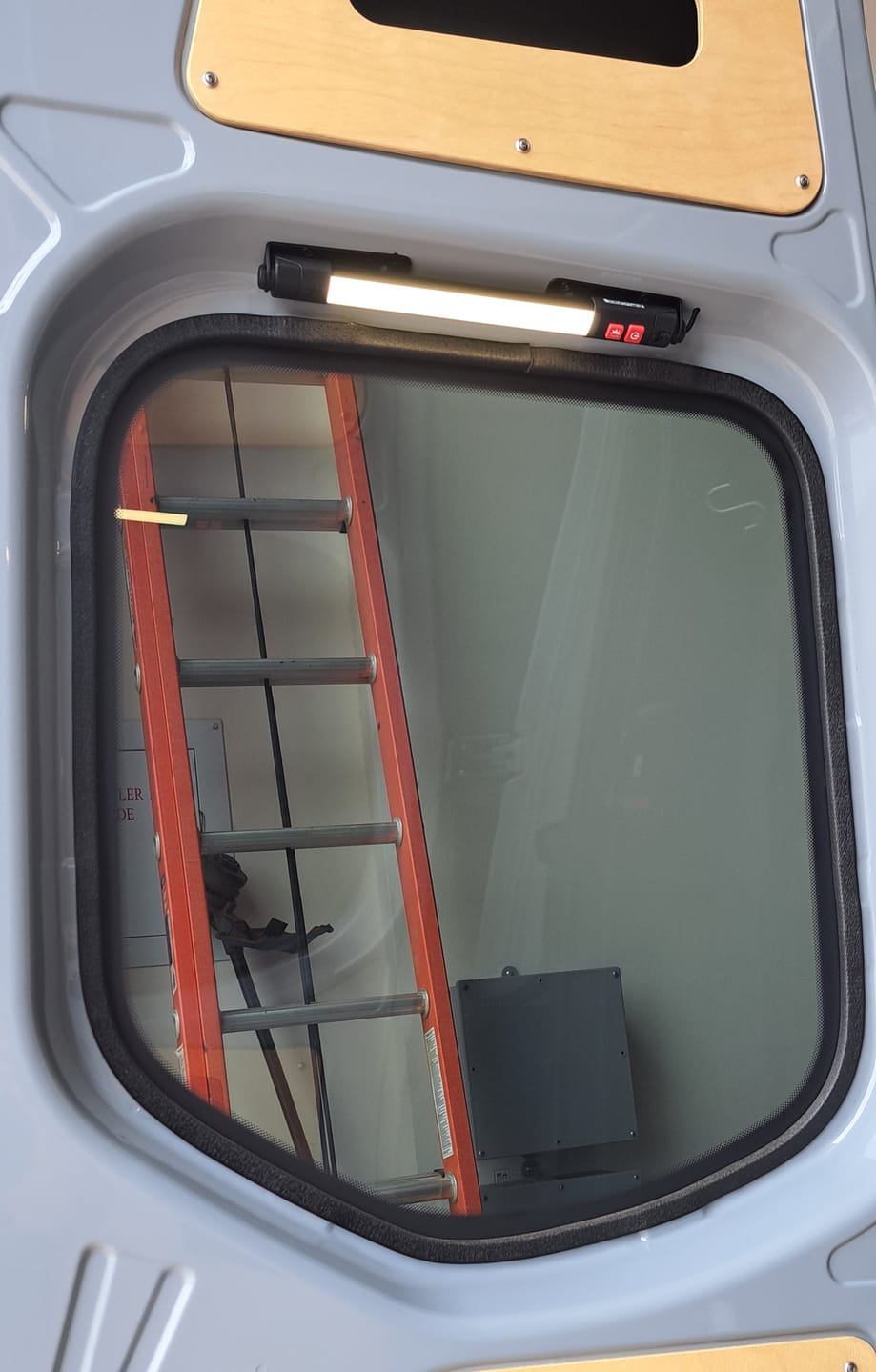

Mounted the 12in lights and mounting brackets on the rear doors of my van. Gives a lot of extra light inside and outside the van. Well made quality lights. Easy to mount, and work great.
Best light ever. Worth every penny. Well built and made in USA!

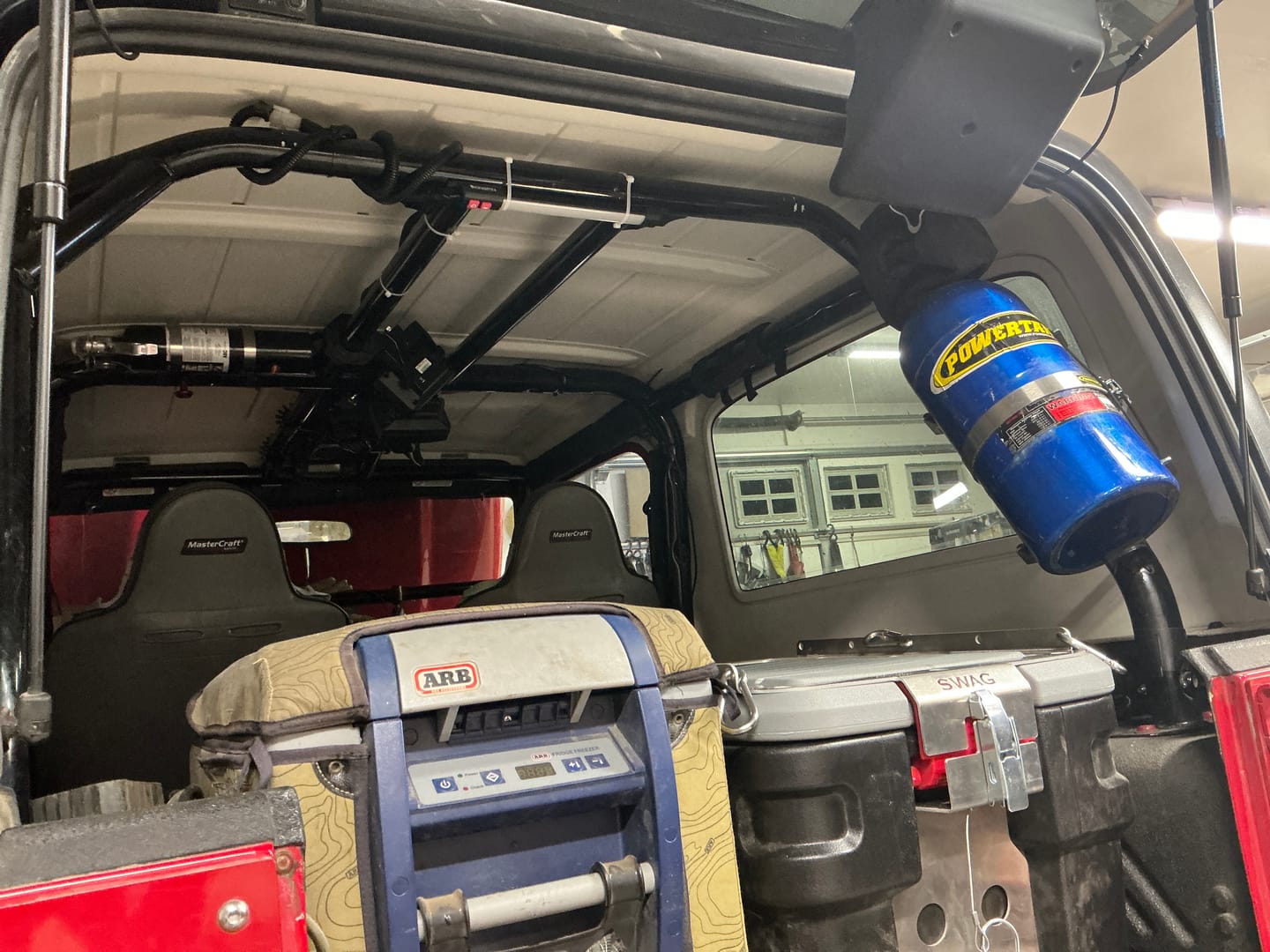

Just the right lighting for my Wrangler JL. Mounted on roll bar using rubber coated magnets.
Store owner replied: This is awesome! Thank you for sharing
I'm excited to use my new F Series 12" lightbars on my camping trip this weekend. They will add a certain amount of functionality I've been lacking as well as a bit of luxury. They're going to be even more functional with the Search mounts installed. Very impressive build quality and easy to install.
Store owner replied: Thank you, Pat!
easy to install, pulls barely any power.
Store owner replied: Thank you, Matthew. We love this application!

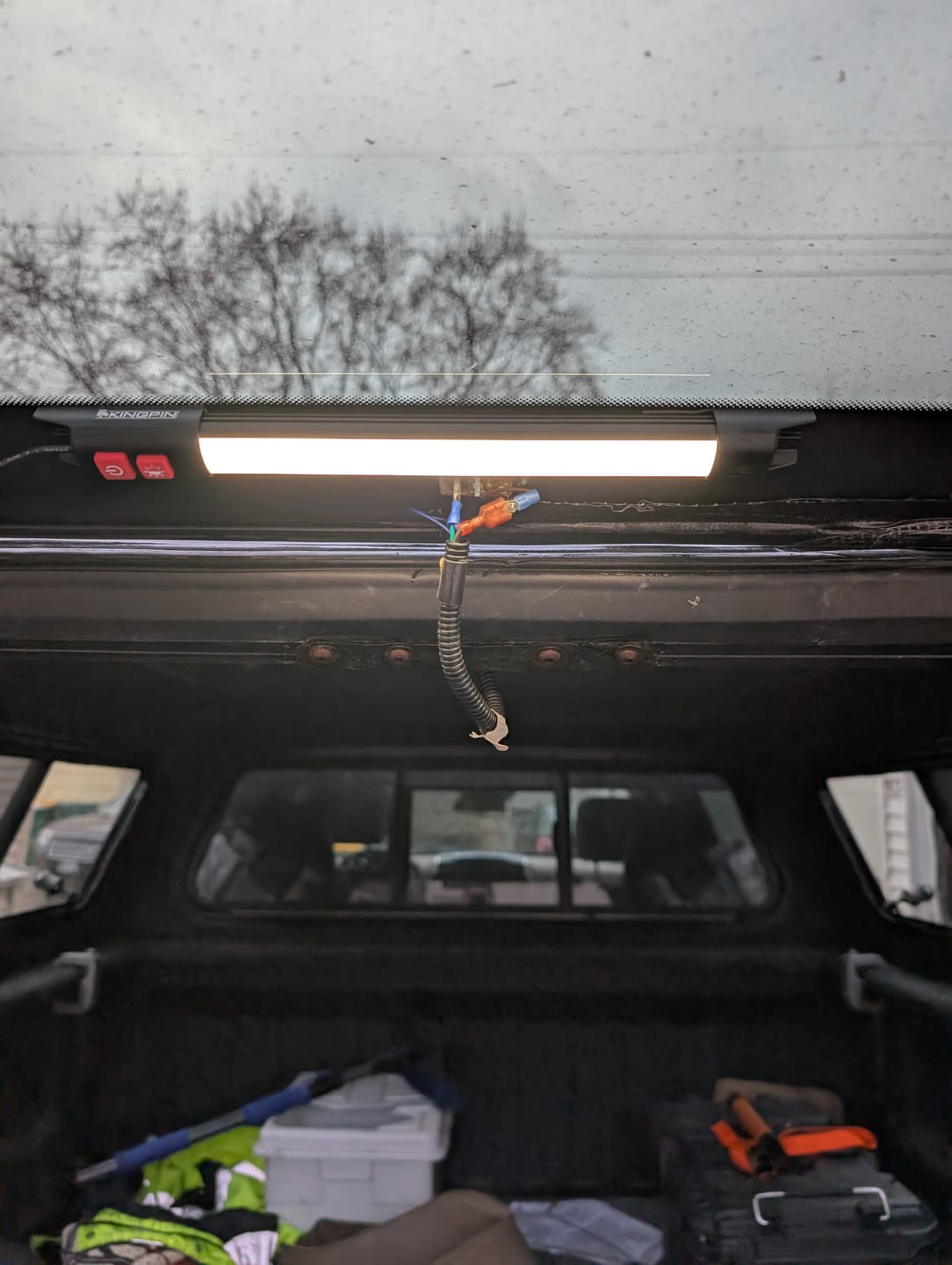

This is a great light I was able to hardwire into the topper lights highly recommend using solder seal connector's.
Store owner replied: Nice placement choice, Thank you!
Bright light and great customer service
Store owner replied: Thank you, Mike! Glad we could get you squared away.
I ordered and received 2-12" F-Series lights. I've had time to install and I am impressed! Installation only took a few minutes and this thing works perfectly! The white light is extremely and red puts off just the right amount of light without compromising night vision. Great job guys!
Store owner replied: Thank you, Kyle! Great setup!
Well built and easy install. If mounting to a non flat surface like a roll bar, gotta get creative. We will buy more if offered in a mid length size. 12” too short and the large too big. Paging R&D. So far so good.
Store owner replied: Thanks so much for the feedback, Mark! We hear ya!

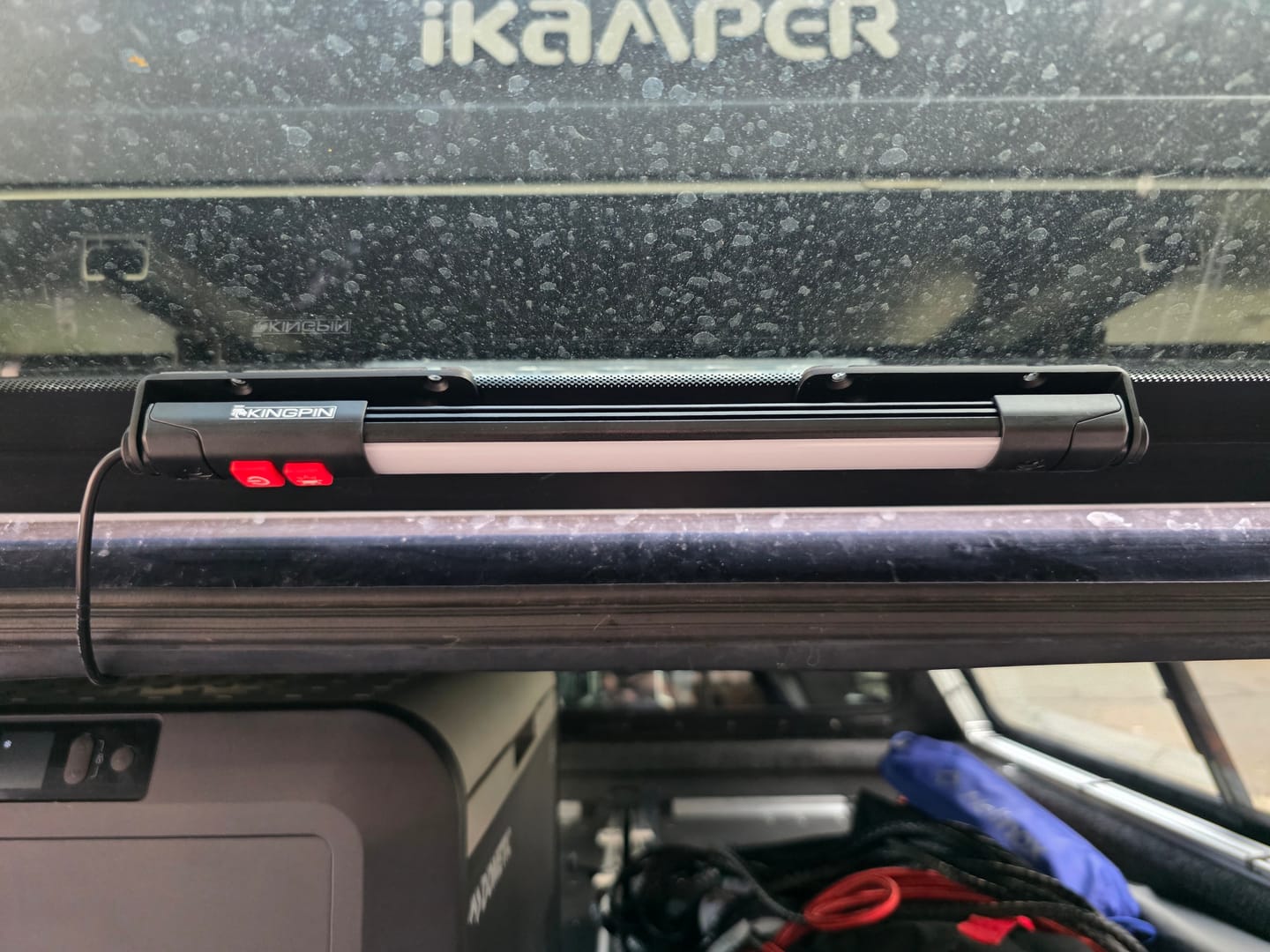

I put 2 of the 12inch lights under my rtt to light up the truck bed area. Super bright lights. Love these things. Easy install, if you can run wire, you can install these.
Great product and even better service from the boss...Chance Thanks. Sully
Easy installation
These lights are absolutely the best. They’re a bit pricey but worth the extra bucks. Great customer service as well. I had an issue with my order and they were quick to resolve it to my satisfaction.
Good
Great product and design. We will be installing these in all of our projects
Nice and bright……easy installation
The installation for this light was extremely easy. I have a WildTop soft topper which has an 80/20 frame, this allowed for the use of t-nuts, making the installation seamless in almost any location I wanted. I am also using a motorcycle battery that is mounted in a Decked system for power. I have run this light for hours with no issues or worries about draining the battery. I would recommend this product to anyone looking for a great lighting solution almost anywhere!
An amazing product
Great lights! I have two 12" lights for the back of the van area. Nice amount of light, can switch to red, dimmer works great as well. Easy set up.
Great quality easy installation and very bright just wish I got the bigger light but love the 12” I got
Started off with one light, mounting brackets and a switch and have added another light/bracket. Quality feel and works very well for my needs.
Great light! I have one in my Jeep and Sprinter Van, but best of all they have outstanding customer service!
Work as it should. But customer service exceeded my expectations when my package showed up torn open and empty. No questions ask, a new one was in the mail. Thank you!!
Great light with fast shipping!
Live the quality of the light. Have not had a chance to install yet. Hope to add some pics when I do.
The 12” light is pretty nice, for the price I would expect the swivel mounts to come with it. The cable is shorter than expected also and with no ends on it, a 12v plug would be nice. The white light is nice, not as bright as expected compared to other lights I have, the red is more of a pink than red. I don’t know that I would buy again.
Store owner replied: Thank you for the feedback, Neil. Let us know if you ever need anything
