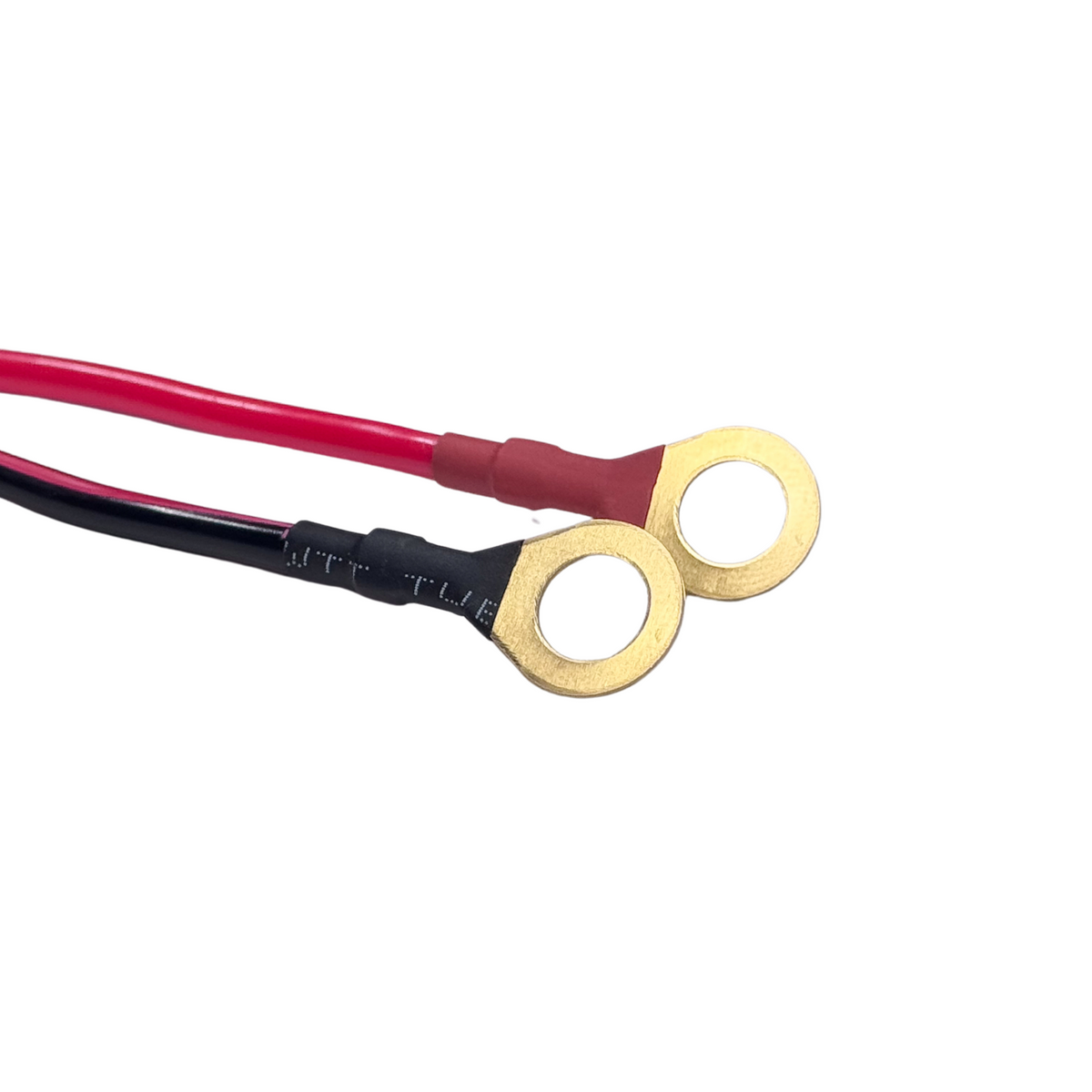

Ring terminals bolt to the battery. The 5A fuse is already in the holder, good for up to 5 amps of lights.

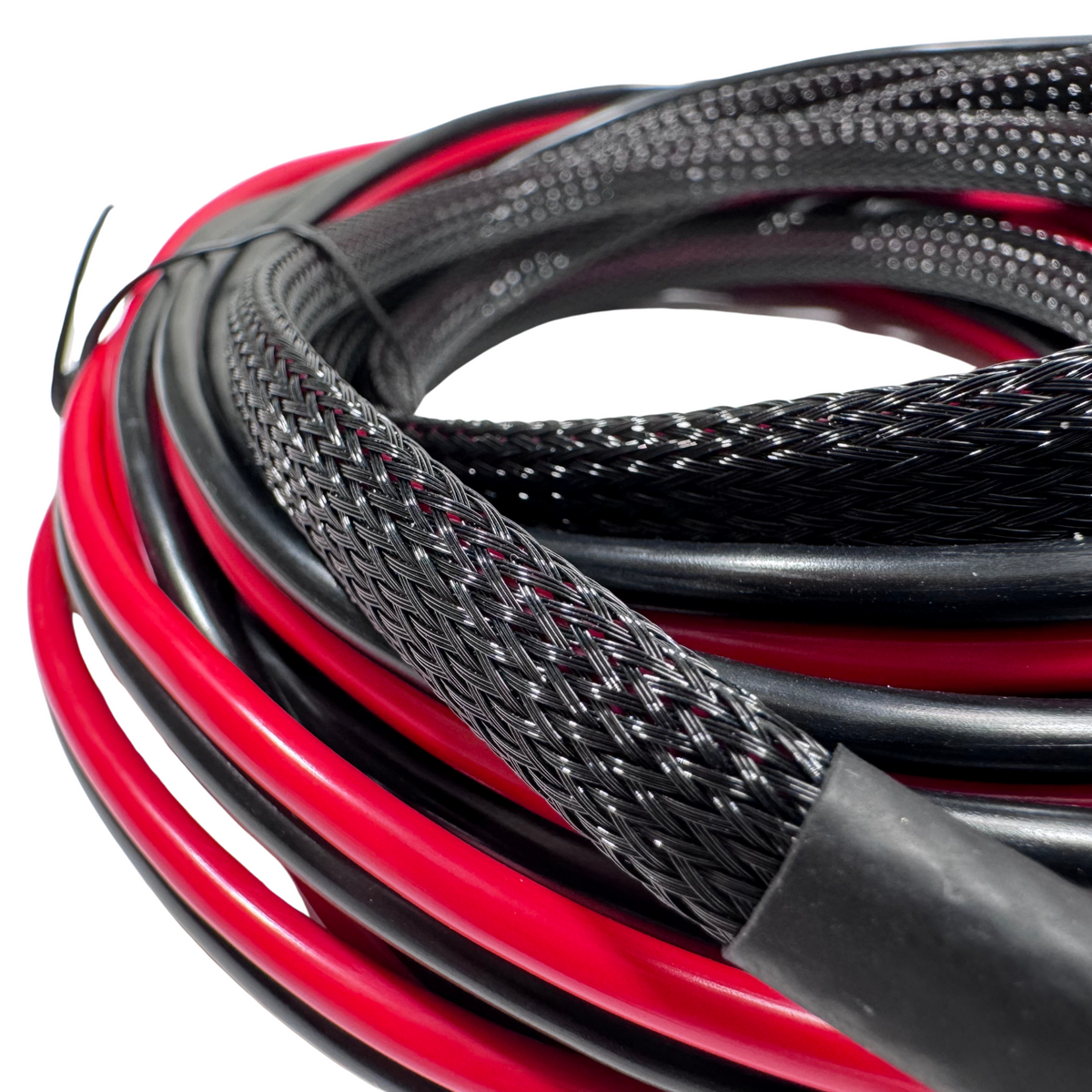

A tough sleeve covers about the first 5 ft, where it runs through the engine bay. Zip ties hold it along the frame.

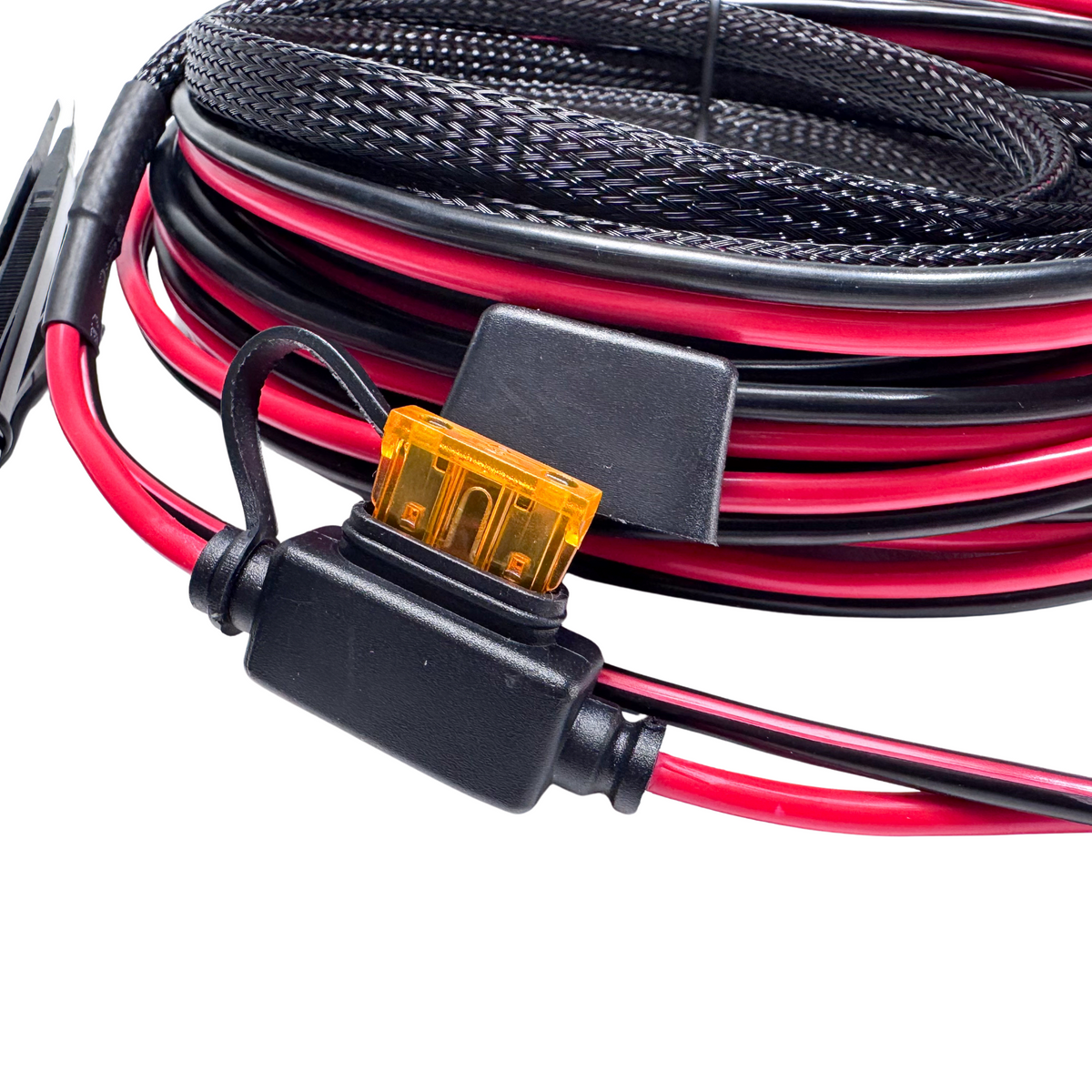

Protected end to end:a fuse at the battery and a tough sleeve through the engine bay.
25 ft reaches from the battery to the bed on most trucks and SUVs. Measure your route first.
“Nice and simple and just long enough for my 99 F250”
“Perfect length and easy install.”
“Nice Clean look...”
Rig gear, cook, or pack up in the dark.
Mount it where you load and unload.
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
| Length | 25 ft |
| Wire | 14 AWG, 2-conductor |
| Fuse | 5A standard automotive, pre-loaded (swappable) |
| Battery end | Weather-tight ring terminals |
| Far end | Bare wire |
| Sleeve | Tough protective sleeve on about the first 5 ft, for the engine bay |
| Includes | Zip ties |
| Warranty | 2 years from ship date |
Plan the route from the battery to the switch. Zip-tie it along the frame.
Join the bare end to the switch's power end: red to red, black to black.
Last, bolt the ring terminals to the battery: red (fused) to +, black to −.
5A fuse included. Add up the amps: F-40 1.1 · F-28 0.7 · F-12 0.3 · V-40 1.4 · V-12 0.5

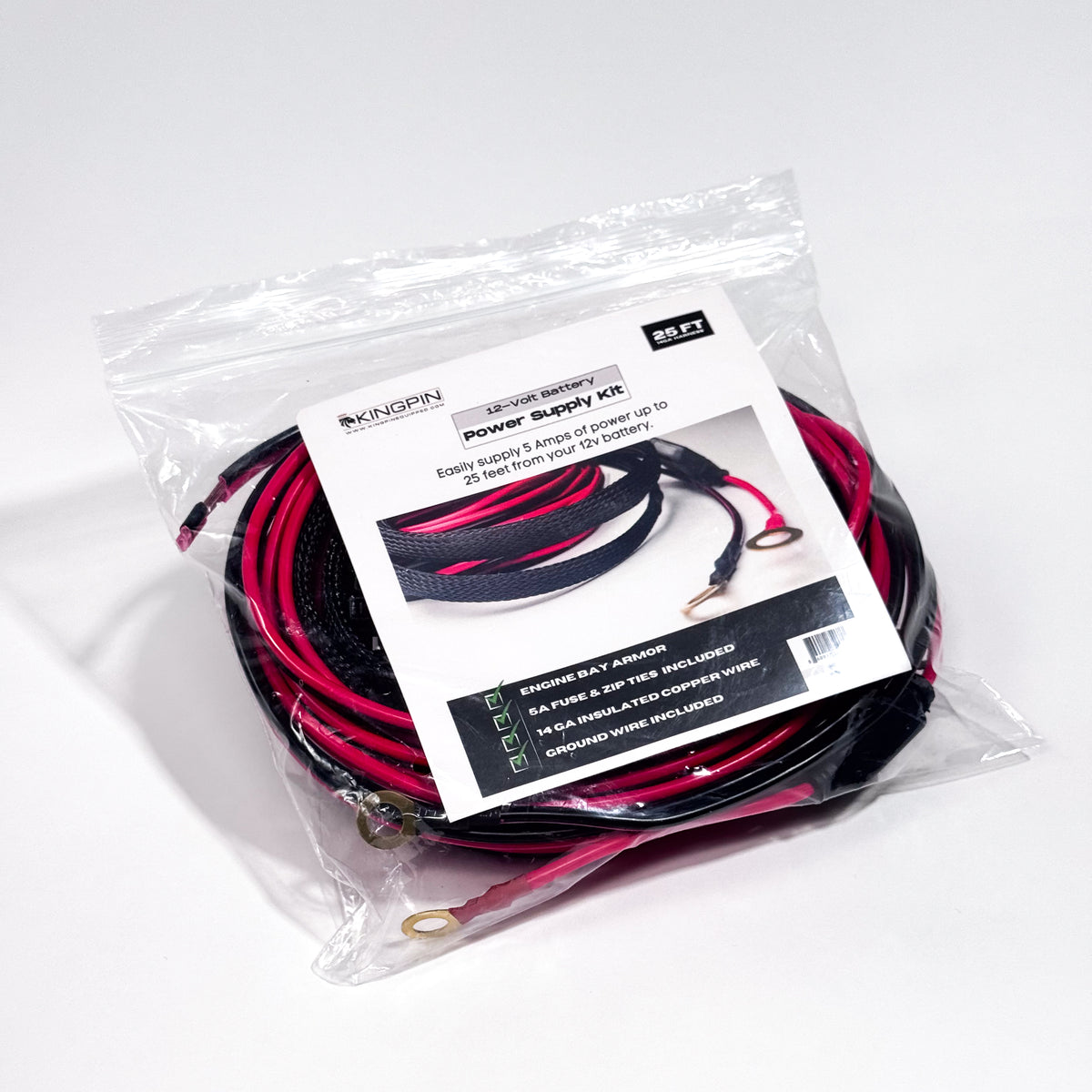

Easily add 5 Amps of 12-volt power up to 25 Feet from your automotive battery with the Kingpin Power Supply Kit.
This universal kit will get power to back of any size truck or SUV and works great in vans, trailers, and boats.

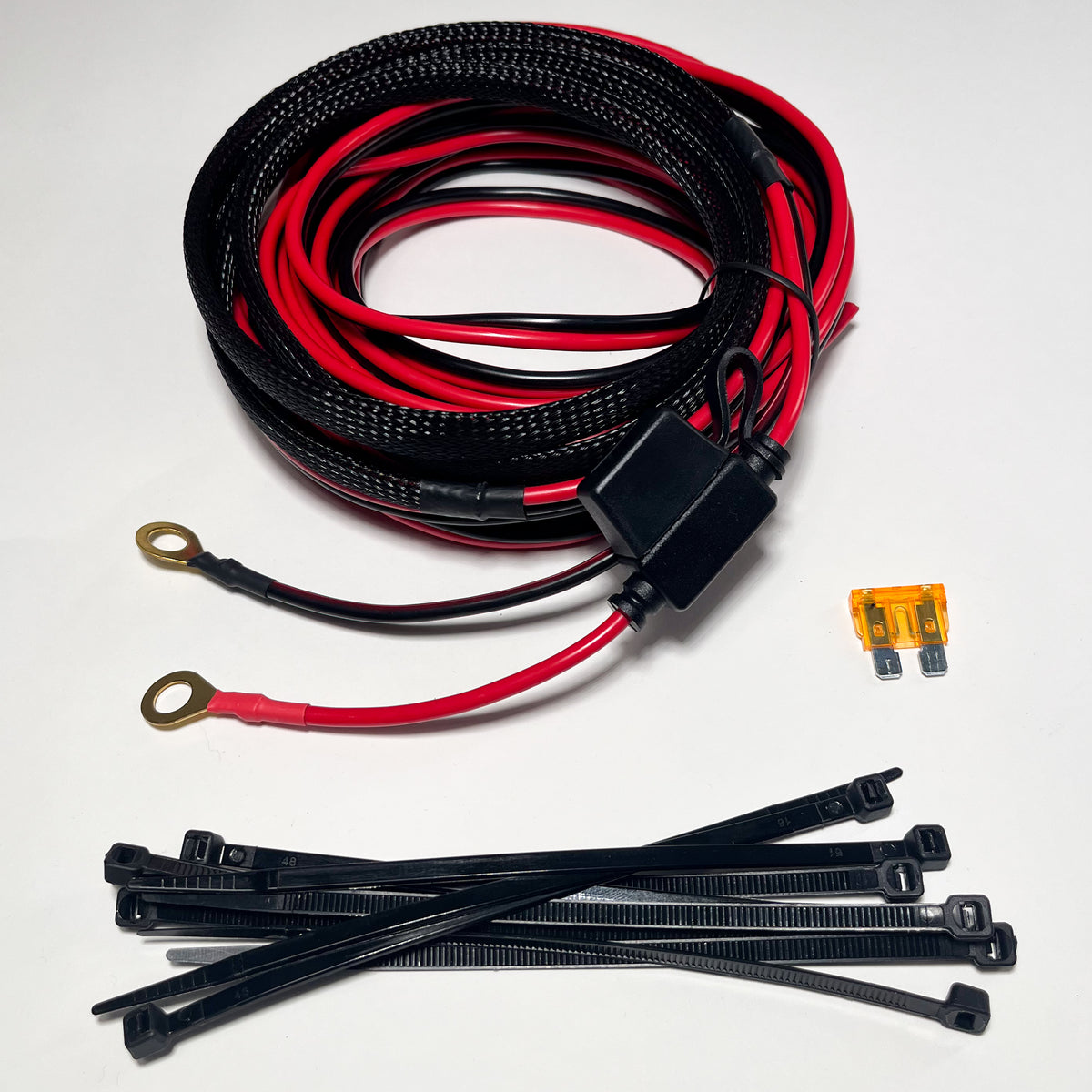

Includes high quality cable and components and weather-tight ring terminals for easy connection to most standard automotive batteries.
A standard 5 Amp automotive fuse comes pre-loaded in the fuse holder. It can be removed and resized as needed.
The high-quality 14AWG 2-conductor wire harness is protected with a durable outer covering for the first 6FT providing ultimate protection and a clean appearance.
The included zip ties allow you to securely fasten the wires neatly along your frame or whatever.
Since the included fuse in this harness is rated to 5A, consider your peak continuous power draw (how many lights will be on at once). Example: (1x) F-Series 40" draws 1.1Amps
It reaches from the battery to the bed on most trucks and SUVs. Measure your route first, along the path you'll zip-tie to.
A standard automotive fuse. It comes with a 5A fuse in the holder, enough for 1 switch fully loaded (3 A). Running more lights? Size the fuse to your total amps.
Ring terminals bolt to the battery. The other end is bare wire: join it to the switch's power end, red to red, black to black.
Up to 3 amps of lights: 2× 40", 4× F-28, 8× F-12 or 6× V-12. You can mix F- and V-Series, just add up the amps: F-40 1.1, F-28 0.7, F-12 0.3, V-40 1.4, V-12 0.5.
Any 12V DC source works, like a power station's 12V outlet. Most USB ports are 5V, so they won't run the light. Some higher-power USB ports may work, but we don't recommend it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
| Which wire do I need? | Power Supply Kit | Power Cable |
| Job | Battery to switch | Switch to lights, light to light |
| Wire | 14 AWG | 20 AWG, tinned copper |
| Length | 25 ft | 30 ft |
| Fuse | 5A, loaded | None |
| Ends | Ring terminals + bare | Bare |
| Price | $58.99 | $26.99 |
