Kingpin™ Dual-Color Truck Bed Light Kit
- Two zones, tailgate and inside, each with its own dimmer
- 3 F-Series 40" lights, white and red
- Power Supply Kit, wire and 2 Rotary Dimmers included
- Weatherproof (IP54) lights and switches
2 dimmers
in every light
IP54
warranty

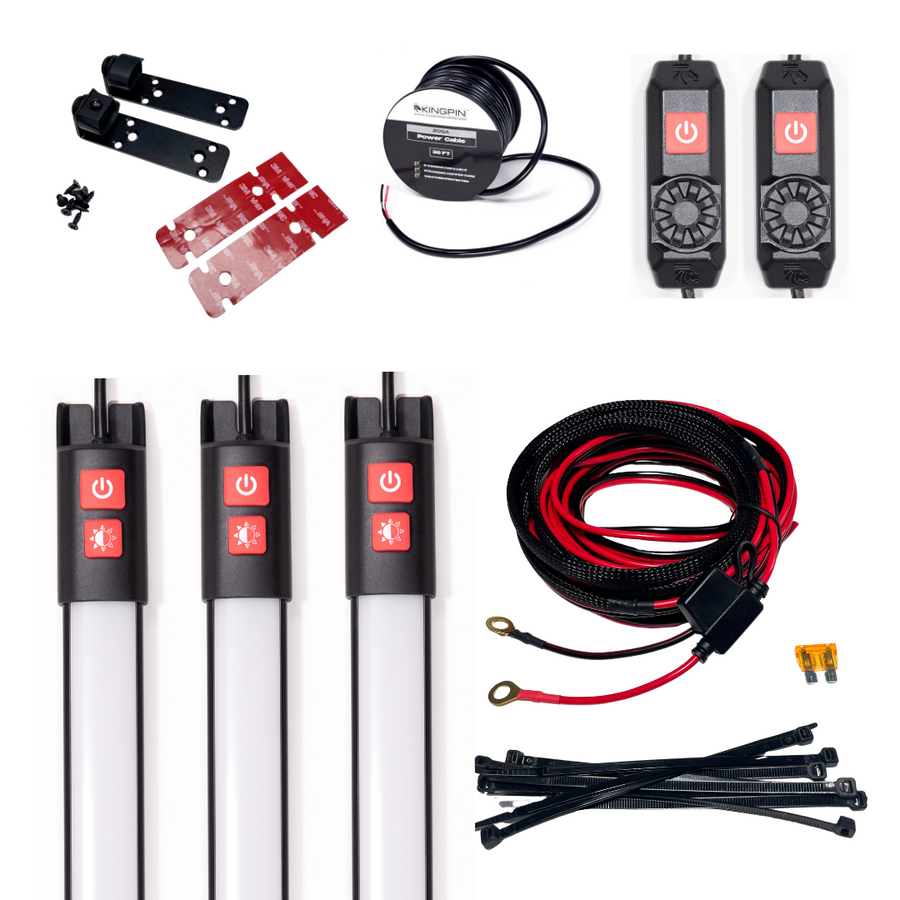

What's in the kit, and what you'll need
Ready to wire

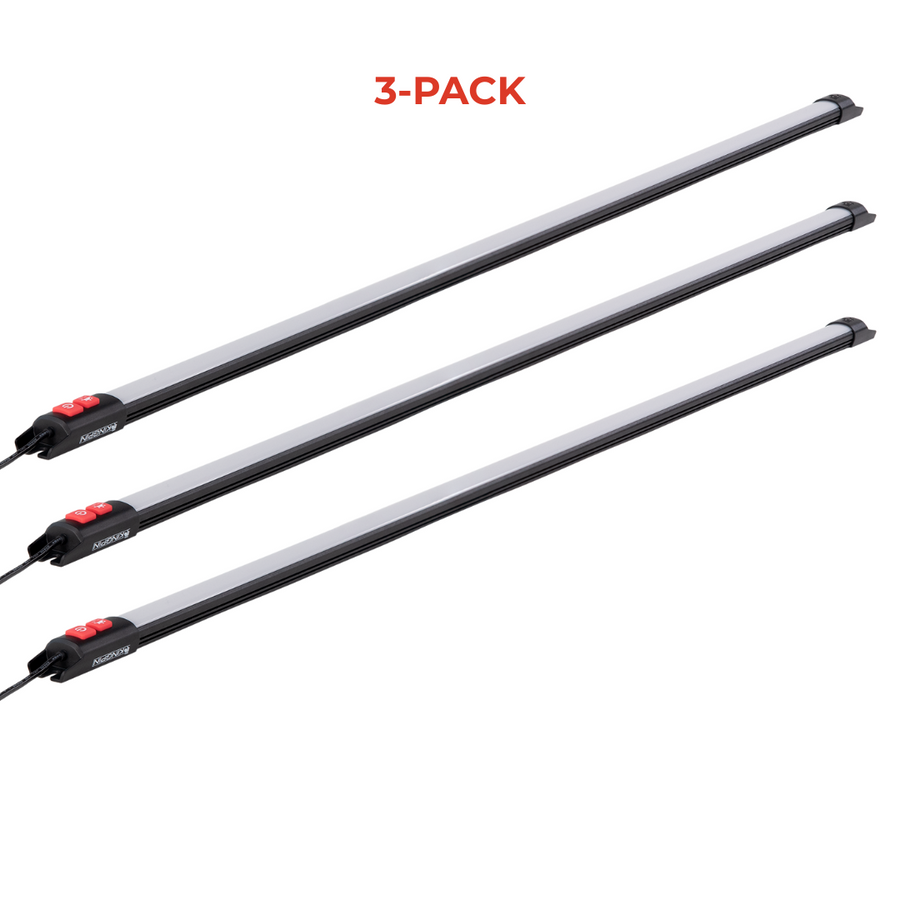

- 3× F-Series 40" Light
- 1 set of Search Mounts, for the tailgate light
- 2× Rotary Dimmer Switch
- 12-Volt Power Supply Kit: 25 ft, 5A fuse
- 30 ft Power Cable, 20 AWG
Two zones
- Zone 1: 1 light on the tailgate or rear, on the Search Mounts, with its own dimmer
- Zone 2: 2 lights on the ceiling or sides, with the other dimmer
- Both dimmers wire to the Power Supply Kit
A few basics
- Wire strippers and connectors for 20 AWG wire
- Wire routing supplies
- More Search Mounts, so the other 2 lights turn too. Add 2 with this kit and save $10.

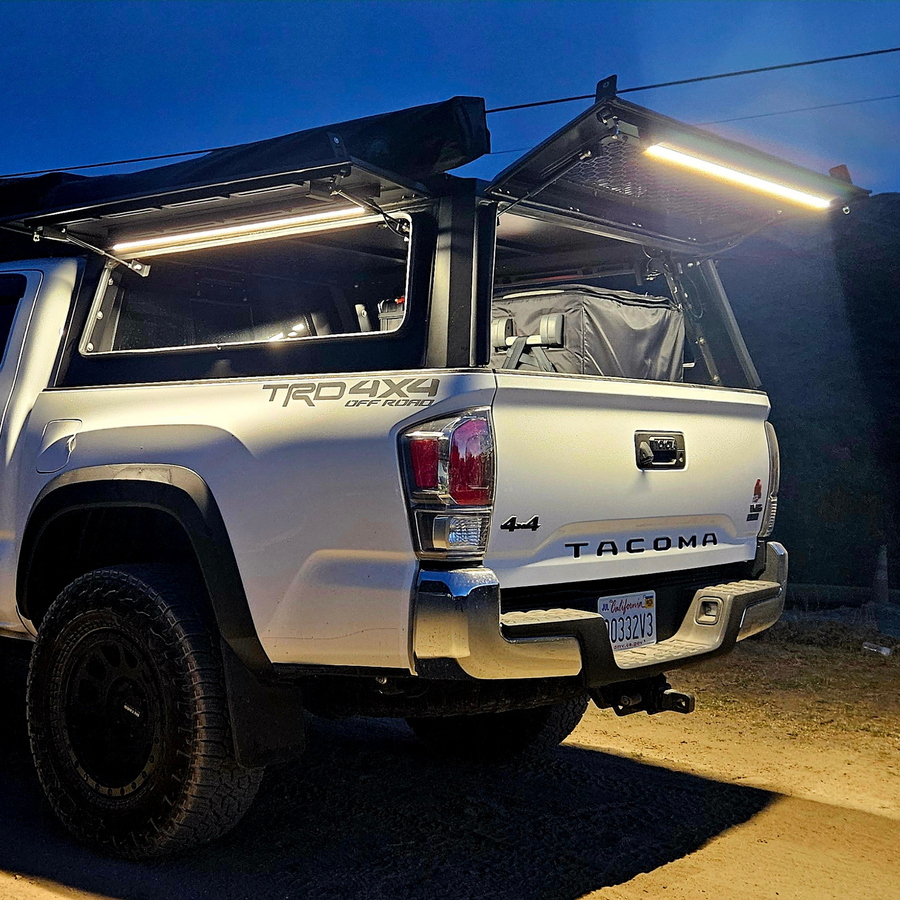

Tailgate
One light over the tailgate, on its own dimmer. Cook, rig gear or pack up.

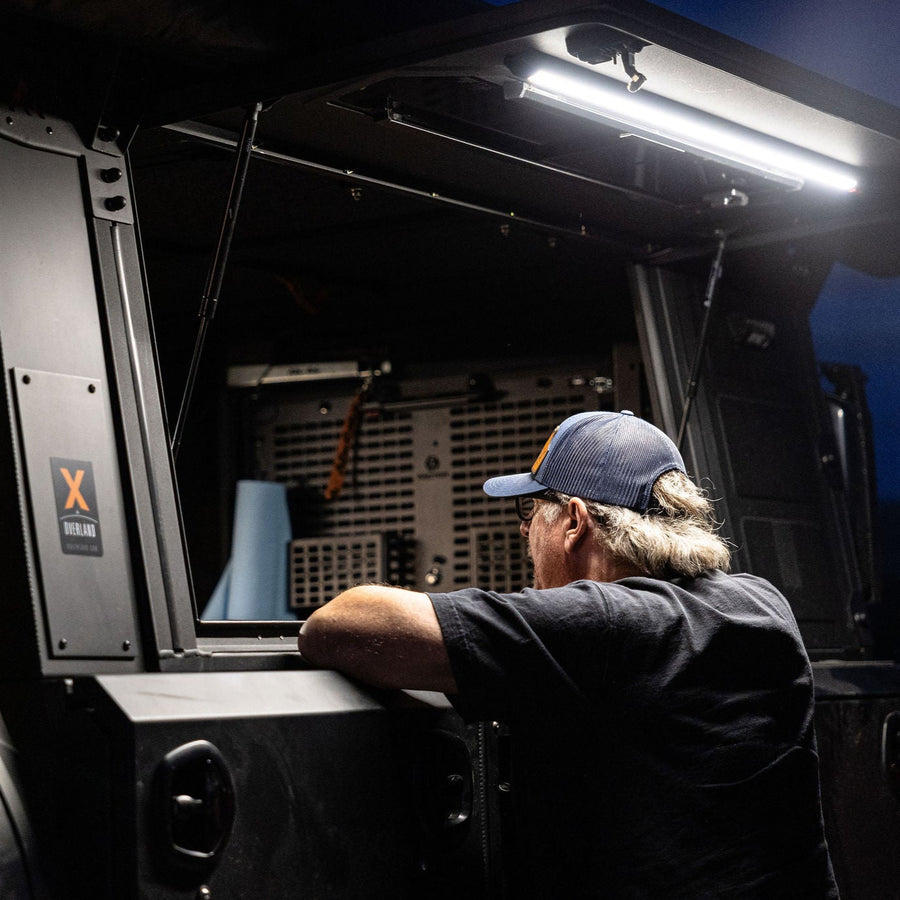

Inside
Two lights on the ceiling or sides, on the other dimmer. See everything in the bed.
Each zone, its own dimmer:Light the tailgate without lighting up the whole bed.
Bright, not blinding
Every Kingpin light has a thick, diffused lens. It spreads the light out into one smooth, even glow, and protects the light from hard knocks.
- No bright hot spots. The whole bar glows evenly.
- No harsh glare, so it's comfortable to look at, even up close.
- Soft, even light on your gear, with fewer hard shadows.
“I hunt at night a lot and the red light is bright enough to get everything I need without blowing my night vision.”
“Love the lights. Went with 3 F-series 40” lights, rear hatch light on F-series search mounts, all on dimmer switches. Lights up the shell, & beyond when needed. Very happy.”
“Good quality, good light, dimmable-worth the money. Easy to install.”

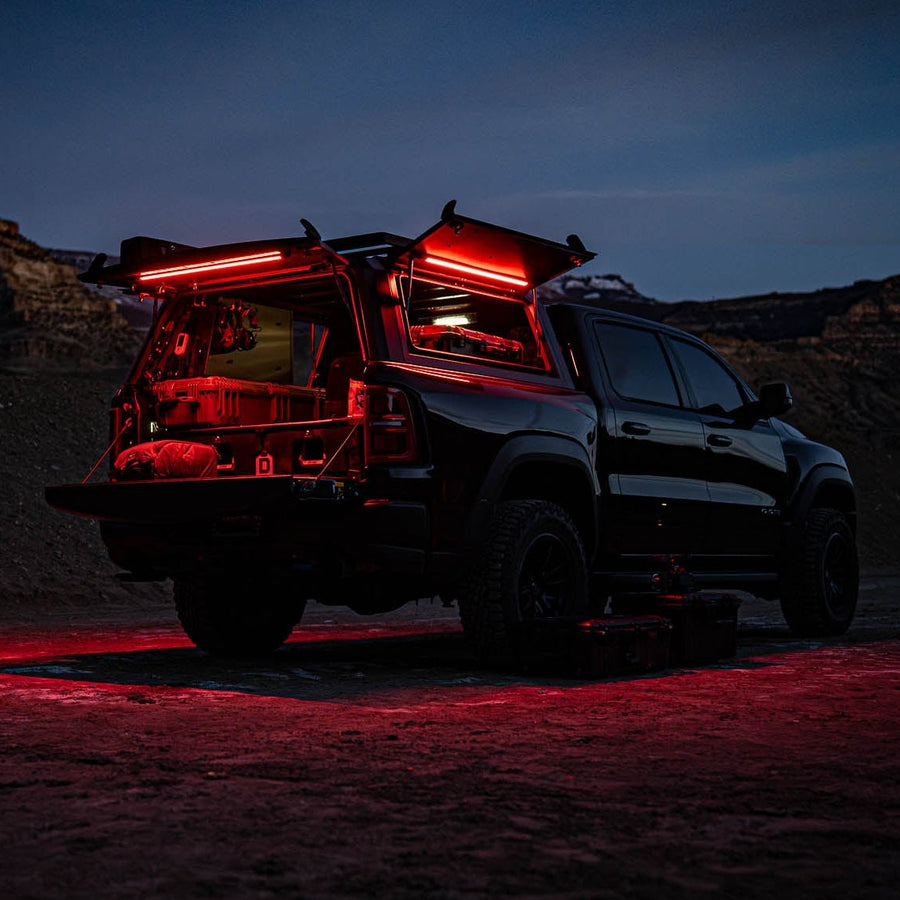

Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.
Trailers & toy haulers
Mount it where you load and unload.
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| Lights | 3× F-Series 40", white + red 1.1 amps each at full brightness |
| Zones | 2, each with its own dimmer |
| Switches | 2× Rotary Dimmer · weatherproof · 3 amps max each |
| Mounts | 1 set of Search Mounts (tailgate light) The other 2 lights mount flat with the included tape or screws |
| Power | 12-Volt Power Supply Kit · 25 ft · 5A fuse |
| Wire | 30 ft Power Cable · 20 AWG |
| Draw | 3.3 amps total at full brightness |
| Rating | Weatherproof (IP54) |
| Warranty | 2 years from ship date |
How to install
- This shows one zone. Each zone wires the same way, to its own dimmer.
- Red to red, black to black. Where the lights meet, the 3 reds join and the 3 blacks join.
- The yellow block is the 5A fuse on the red wire.
- 1
Mount the lights: the tailgate light on the Search Mounts, the other 2 on the ceiling or sides.
- 2
Wire each zone to its own dimmer. The lights go on the crown end.
- 3
Join the dimmers' power ends to the Power Supply Kit. Last, bolt it to the battery.
You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.
Full product description
Transform your truck bed with this dual zone, dual color lighting package.
There is no better lighting solution for your truck canopy, cap, camper shell, topper, or bed rack system! This kit uses Kingpin's latest F-Series dual color lights.
Swap between bright white and red night vision in one low-profile setup.
Control the tailgate area separately from the sides or interior with this kit.
Power the system off of your 12-volt starting battery or auxiliary battery with the included Power Supply Kit.
Mount your lights and switches. Route, cut, and connect your wires. Thats it!
Package includes: (3x) F-Series 40" Lights, (1x) Search Mount Kit, (2x) Rotary Dimmer Switches, (1x) Power Supply Kit, and (1x) Power Cable Spool
Good questions, short answers
Each zone has its own dimmer. Light just the tailgate, just the inside, or both, each at its own brightness.
Yes. Each dimmer runs up to 3 amps: 2× 40", 4× 28", 8× F-12 or 6× V-12. Add up the amps in each zone.
Wire strippers, connectors for 20 AWG wire, and wire routing supplies. They aren't in the kit.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
The whole kit draws 3.3 amps at full brightness.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| Which truck bed kit? | Dual-color | Original |
| Lights | 3× F-40, white + red | 3× V-40, white |
| Zones | 2 | 2 |
| Switches | 2 Rotary, weatherproof | 2 Touch, inside |
| Rotation | Search Mounts on 1 light | Built into all 3 |
| Power + wire | Included | Included |
| Price | $539.99 | $439.99 |
