Power Cable, 20GA
- 30 ft of red and black wire
- Switch to lights, or light to light
- The same 20 AWG wire as our switches and F-Series leads
- Tinned copper, for inside or outside
on the roll
red + black
or out
warranty
What's on the roll, and what you'll need
Ready to cut
- 30 ft of 20 AWG 2-wire cable
- Red and black conductors, tinned copper
Kingpin lights + switches
- Kingpin switches and F-Series leads (20 AWG)
- V-Series leads (18 AWG) join to it fine
A few basics
- Wire strippers and connectors for 20 AWG wire
- Wire routing supplies
Same wire as our switches and F-Series
The same 20 AWG wire as the leads on our switches and F-Series lights, so every joint is a clean match.
Made for 12V lighting
Tinned copper, red and black, for inside or outside. V-Series leads (18 AWG) join to it fine too.
Two jobs:switch to lights, and light to light. Red to red, black to black.
Clean runs

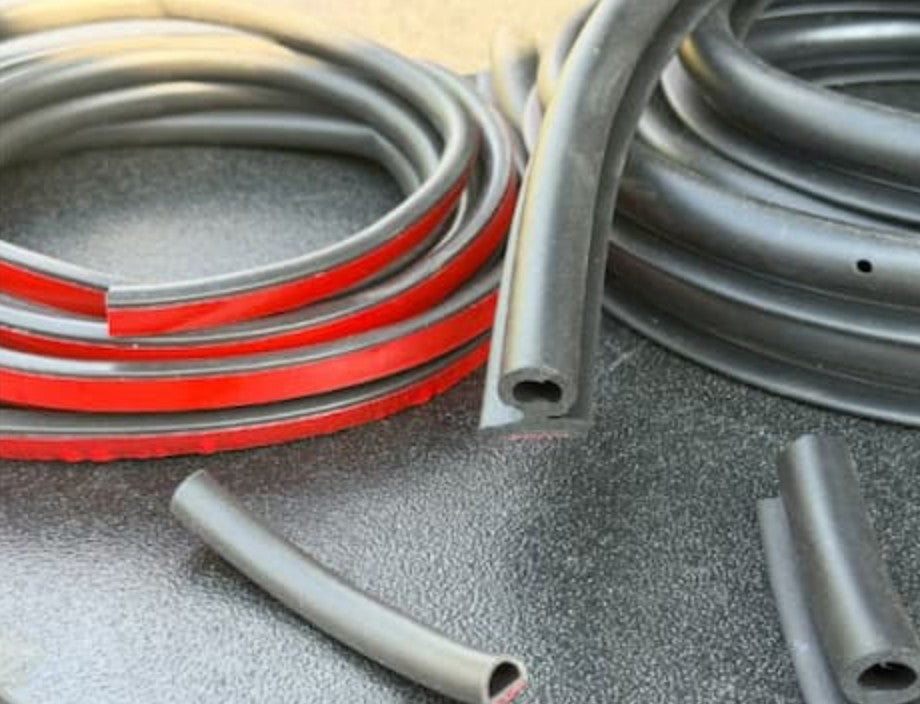

Pro tip: route it in bulb seal. It's rubber trim with 3M backing and a hollow channel. Tuck the wire inside and stick it to the bed rail or frame.
- Use it inside or outside.
- Tinned copper, red and black, ready to cut to length.
- Enough for a few runs from one 30 ft spool.
“Great 2 wire. Had enough to get to the back of my roughly 20ft truck.”
“Very easy to work with and install and connect to the lights”
“Amazing product, used this wire to finish my gfc setup for now and have enough extra for more projects in the near future!”
Turn on your tailgate
Rig gear, cook, or pack up in the dark.
Trailers & toy haulers
Mount it where you load and unload.
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| Length | 30 ft |
| Wire | 20 AWG, 2-conductor, red and black |
| Strands | Tinned copper |
| Ends | Bare |
| Use | Inside or outside |
| Works with | Kingpin switches, F-Series (20 AWG) and V-Series (18 AWG) leads |
| Warranty | 2 years from ship date |
How to install
- 1
Cut to length with a few extra inches of slack. Strip about 3/4" from each end.
- 2
Join the ends, red to red, black to black: twist and tape, butt connectors, or solder.
- 3
Seal each joint with heat shrink tubing, then route the wire.
You'll need wire strippers, connectors or solder, and heat shrink tubing or electrical tape.
Full product description
We like our installs to look good and perform at their peak.
This high-quality power cable is the same used in all Kingpin switches and F-Series lights.
Note: V-Series cable is one size larger at 18GA but still work perfectly with this cable.
Run this cable with confidence interior or exterior, between lights, switches, and power sources.
Number of Conductors: 2 (Red and Black)
Conductor Size: 20GA
Strand Material: Tinned Copper
Length: 30FT
Kingpin Pro Tip
You can find cheap black foam-rubber weather stripping materials online that make for great wire routing! Many include adhesive backing. Cut them to length, stick them in place. Route the wire through. Thank us later!
Good questions, short answers
Runs from a switch to the lights, or from one light to the next. The Power Supply Kit brings power to the switch.
Yes. V-Series leads are 18 AWG, one size thicker, and join to it fine.
Up to 3 amps of lights: 2× 40", 4× F-28, 8× F-12 or 6× V-12. You can mix F- and V-Series, just add up the amps: F-40 1.1, F-28 0.7, F-12 0.3, V-40 1.4, V-12 0.5.
Any 12V DC source works, like a power station's 12V outlet. Most USB ports are 5V, so they won't run the light. Some higher-power USB ports may work, but we don't recommend it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| Which wire do I need? | Power Supply Kit | Power Cable |
| Job | Battery to switch | Switch to lights, light to light |
| Wire | 14 AWG | 20 AWG, tinned copper |
| Length | 25 ft | 30 ft |
| Fuse | 5A, loaded | None |
| Ends | Ring terminals + bare | Bare |
| Price | $58.99 | $26.99 |
