Kingpin™ Dual-Color Trailer Light Kit
- Three zones, each with its own dimmer
- 6 F-Series 40" lights, white and red
- Power Supply Kit, wire and 3 Rotary Dimmers included
- Weatherproof (IP54) lights and switches
3 dimmers
in every light
IP54
warranty

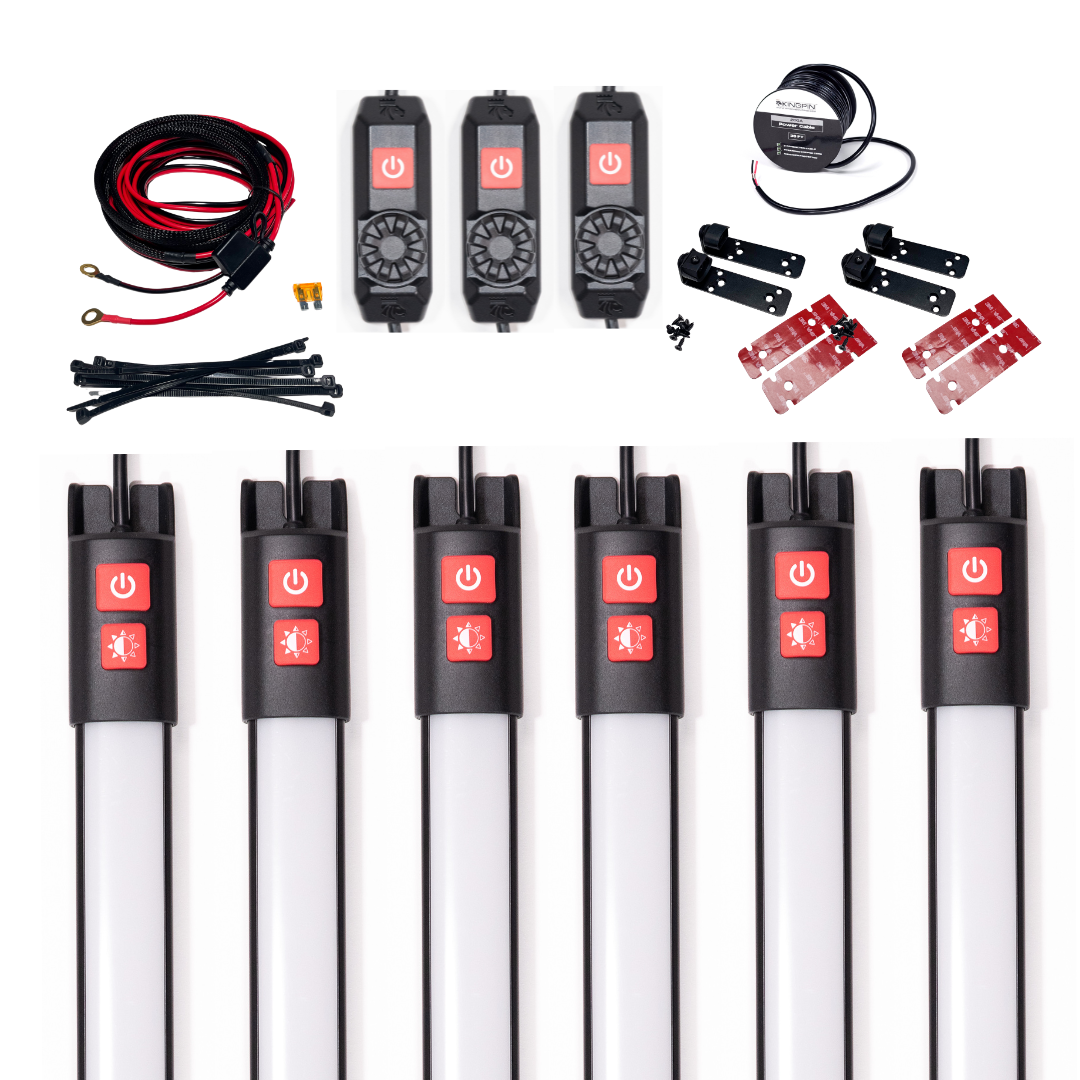

What's in the kit, and what you'll need
Ready to wire
- 6× F-Series 40" Light
- 2 sets of Search Mounts
- 3× Rotary Dimmer Switch
- 12-Volt Power Supply Kit, 25 ft
- 30 ft Power Cable, 20 AWG
Three zones
- Zone 1: 2 lights inside, with a dimmer
- Zone 2: 2 more lights inside, with a dimmer
- Zone 3: 2 lights outside or at the ramp, on the Search Mounts, with a dimmer
A few basics
- Wire strippers and connectors for 20 AWG wire
- Wire routing supplies

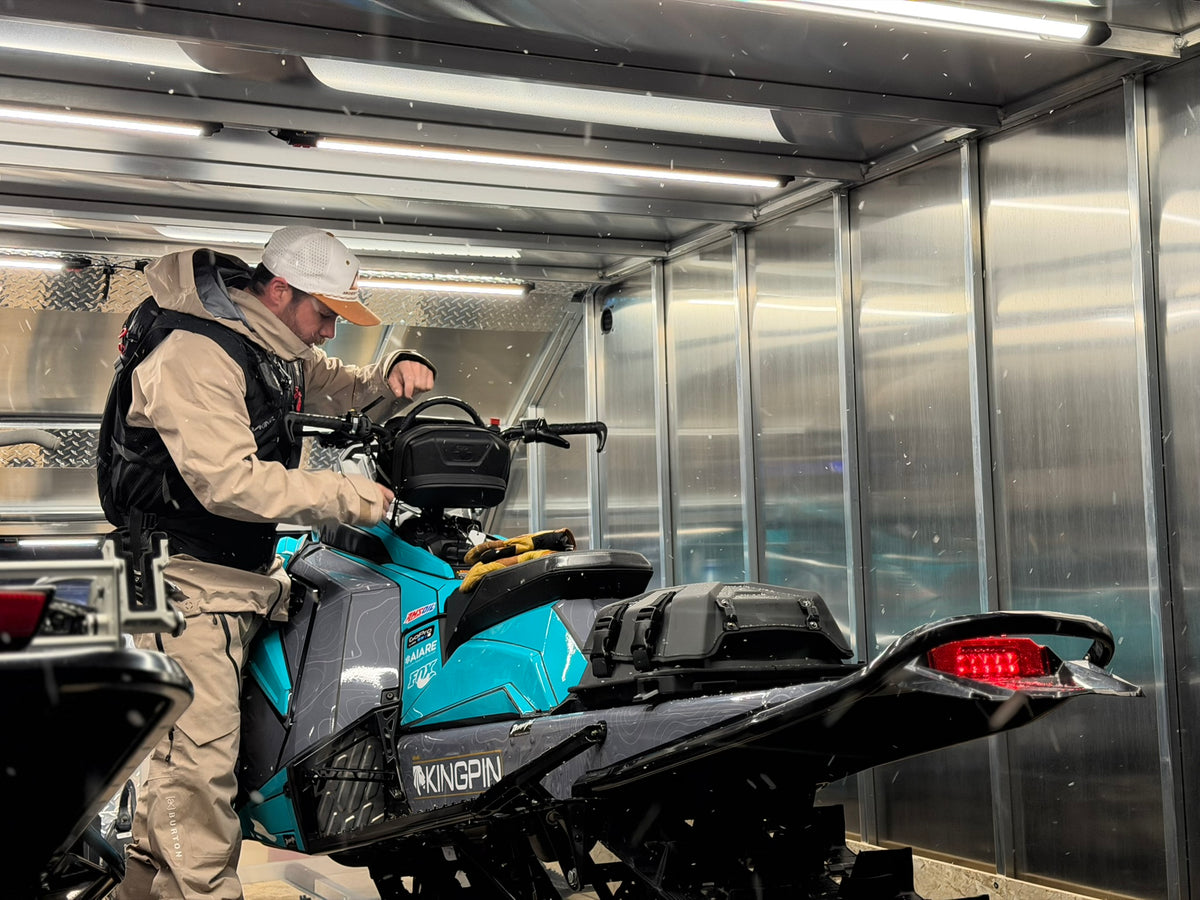

Inside
Four lights inside, split into two zones. Load, strap down and work late.

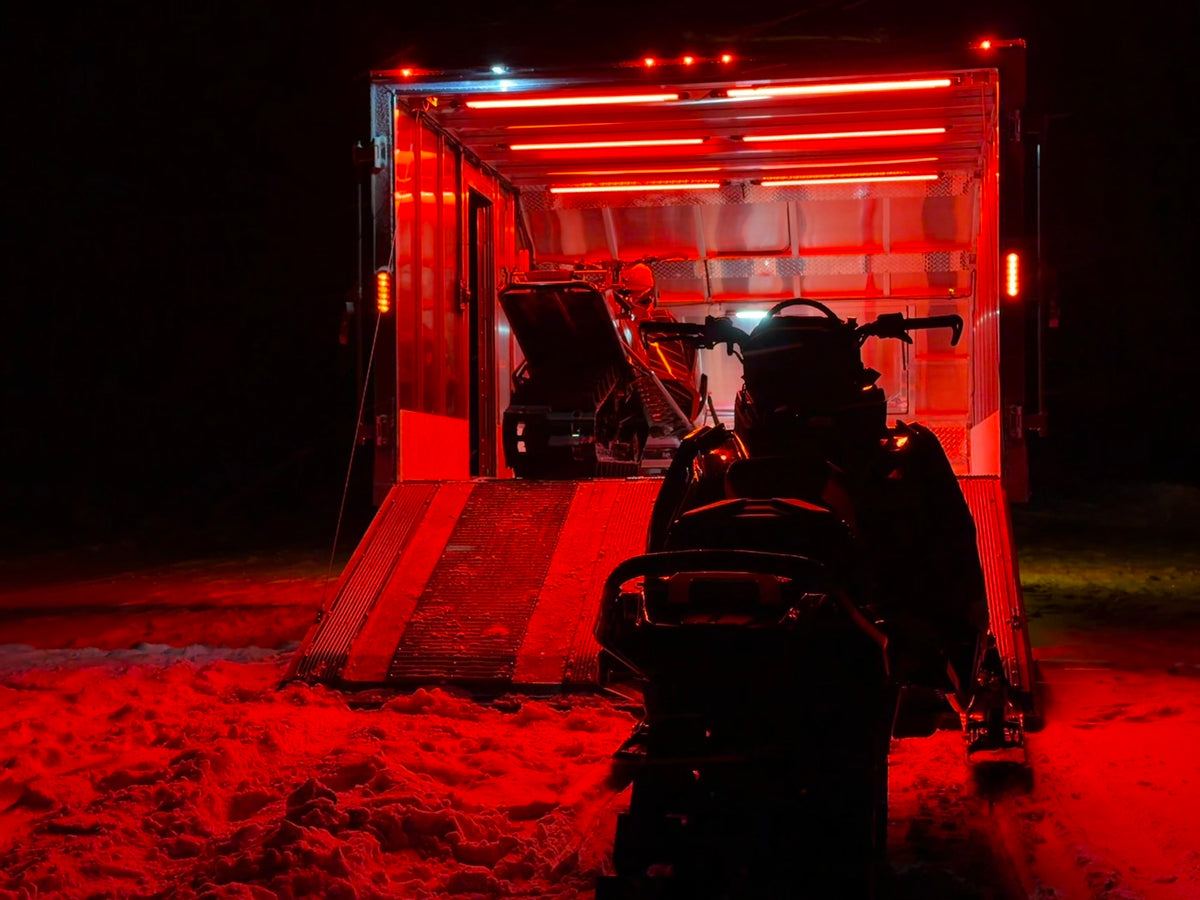

Outside
Two lights at the ramp or outside, on the Search Mounts. Switch to red for night vision.
Each zone, its own dimmer:Light one area without lighting them all.
Bright, not blinding
Every Kingpin light has a thick, diffused lens. It spreads the light out into one smooth, even glow, and protects the light from hard knocks.
- No bright hot spots. The whole bar glows evenly.
- No harsh glare, so it's comfortable to look at, even up close.
- Soft, even light on your gear, with fewer hard shadows.
“I hunt at night a lot and the red light is bright enough to get everything I need without blowing my night vision.”
“Love the lights. Went with 3 F-series 40” lights, rear hatch light on F-series search mounts, all on dimmer switches. Lights up the shell, & beyond when needed. Very happy.”
“Good quality, good light, dimmable-worth the money. Easy to install.”
Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.

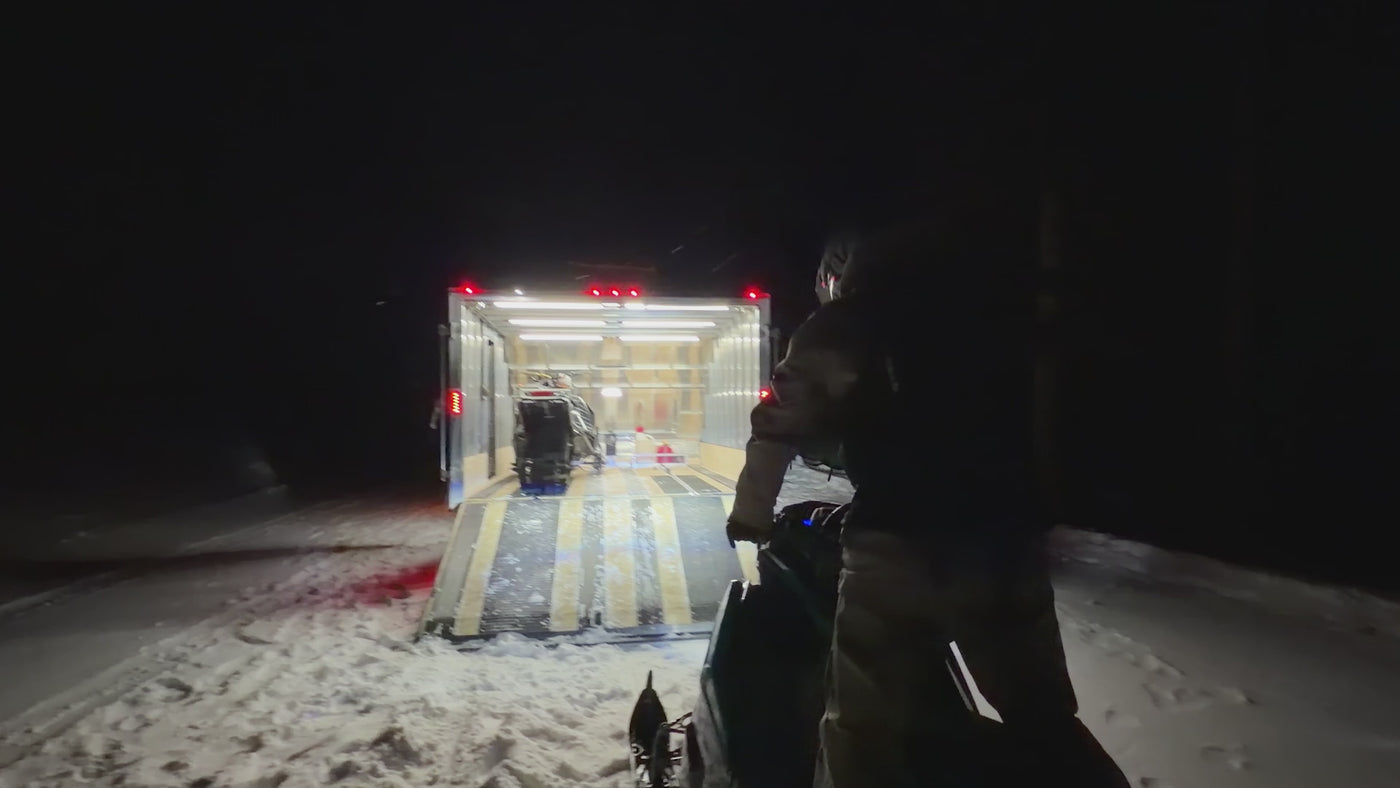

Trailers & toy haulers
Mount it where you load and unload.
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| Lights | 6× F-Series 40", white + red 1.1 amps each at full brightness |
| Zones | 3, each with its own dimmer |
| Switches | 3× Rotary Dimmer · weatherproof · 3 amps max each |
| Mounts | 2 sets of Search Mounts The other 4 lights mount flat with the included tape or screws |
| Power | 12-Volt Power Supply Kit · 25 ft · 5A fuse Depending on how you use your lights, you may need to swap the included fuse for a larger fuse. |
| Wire | 30 ft Power Cable · 20 AWG |
| Draw | 6.6 amps total at full brightness |
| Rating | Weatherproof (IP54) |
| Warranty | 2 years from ship date |
How to install
- This shows one zone. Each zone wires the same way, to its own dimmer.
- Red to red, black to black. Where the lights meet, the 3 reds join and the 3 blacks join.
- The yellow block is the 5A fuse on the red wire.
- 1
Mount the lights, 2 per zone. The outside or ramp lights go on the Search Mounts.
- 2
Wire each zone to its own dimmer. The lights go on the crown end.
- 3
Join the dimmers' power ends to the Power Supply Kit. Last, bolt it to the battery.
You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.
Full product description
Dual-color lighting for your enclosed trailer. Six F-Series 40" lights switch between bright white and red with a button press.
Set up three zones, each with its own dimmer, inside or outside the trailer. Power it from a 12V battery up to 25 feet away with the included Power Supply Kit.
In the kit: (6x) F-Series 40" Lights, (2x) sets of Search Mounts, (3x) Rotary Dimmer Switches, (1x) 20 AWG Wire Spool, (1x) Power Supply Kit.
You'll need tools to cut and connect 12V wires and some routing supplies. Mounting hardware is included for all lights and switches.
Good questions, short answers
Each of the 3 zones has its own dimmer. Light one area without lighting them all, each at its own brightness.
Yes. Each dimmer runs up to 3 amps: 2× 40", 4× 28", 8× F-12 or 6× V-12. Add up the amps in each zone.
Wire strippers, connectors for 20 AWG wire, and wire routing supplies. They aren't in the kit.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
The whole kit draws 6.6 amps at full brightness.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| Which kit? | Dual-color | Original | Trailer |
| Lights | 3× F-40, white + red | 3× V-40, white | 6× F-40, white + red |
| Zones | 2 | 2 | 3 |
| Switches | 2 Rotary, weatherproof | 2 Touch, inside | 3 Rotary, weatherproof |
| Rotation | Search Mounts on 1 light | Built into all 3 | Search Mounts on 2 lights |
| Power + wire | Included | Included | Included |
| Price | $539.99 | $439.99 | $939.99 |
