Kingpin™ Original Truck Bed Light Kit
- Two zones, tailgate and inside, each with its own dimmer
- 3 V-Series 40" lights with 180° rotation built in
- Power Supply Kit, wire and 2 Touch Dimmers included
- Weatherproof (IP54) lights; the switches mount inside
2 dimmers
built in
lights IP54
warranty

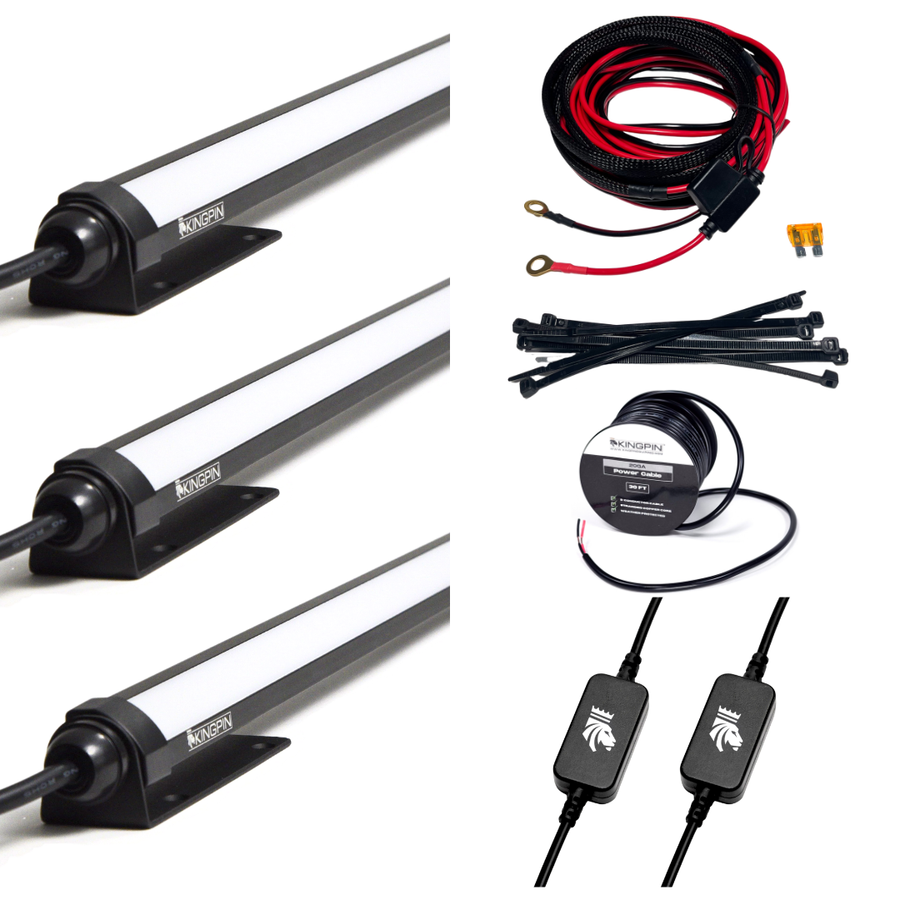

What's in the kit, and what you'll need
Ready to wire
- 3× V-Series 40" Light, rotation built in
- 2× Touch Dimmer Switch
- 12-Volt Power Supply Kit: 25 ft, 5A fuse
- 30 ft Power Cable, 20 AWG

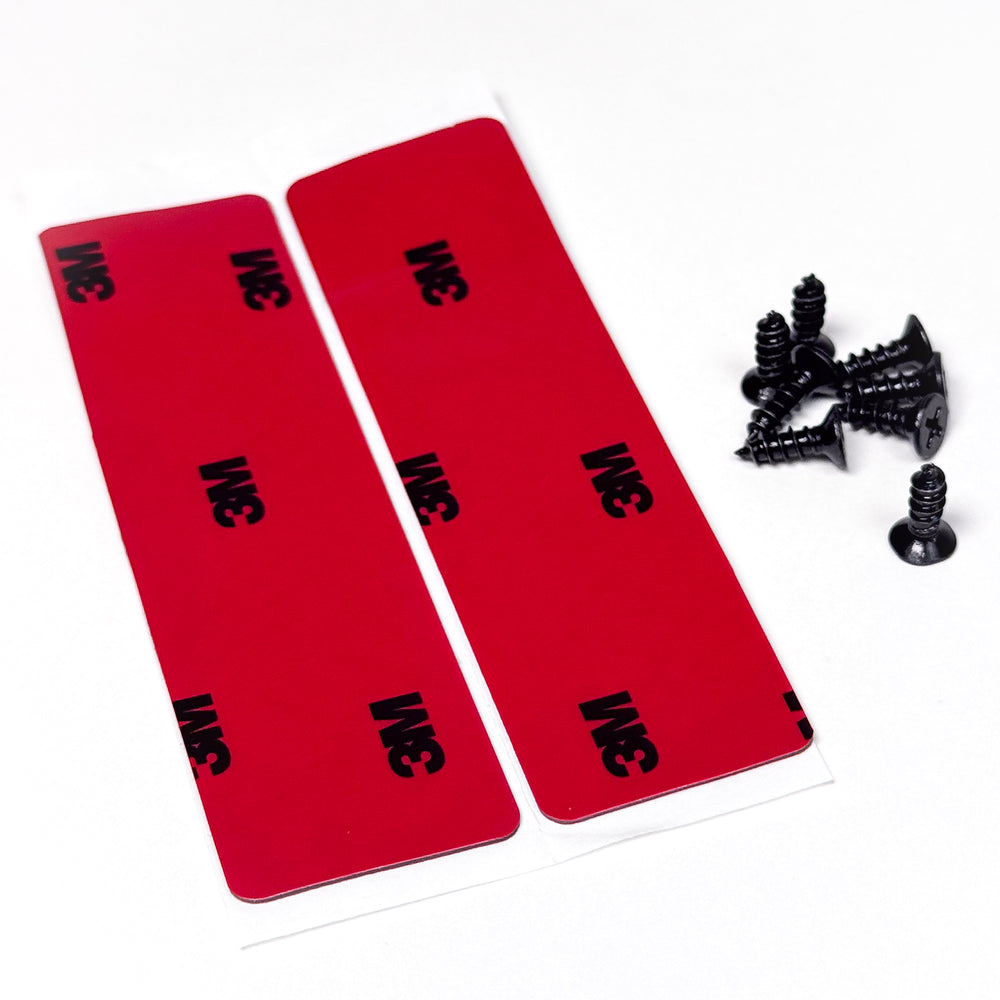

- 3M VHB tape and screws for each light
Two zones
- Zone 1: 1 light on the tailgate or rear window, with its own dimmer
- Zone 2: 2 lights on the ceiling or sides, with the other dimmer
- Both Touch Dimmers mount inside the cap or cab
A few basics
- Wire strippers and connectors for 20 AWG wire
- Wire routing supplies

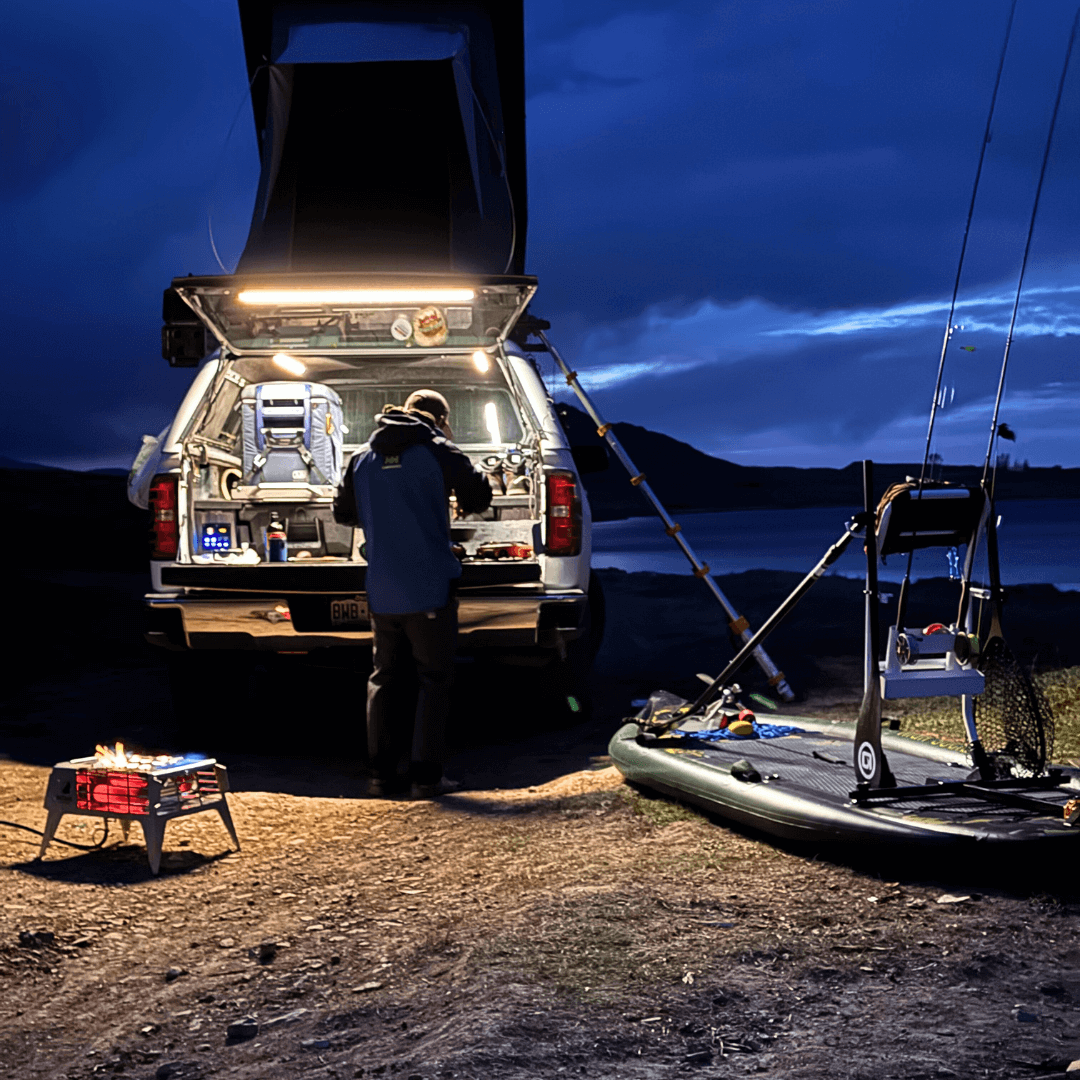

Tailgate
One light over the tailgate, on its own dimmer. Cook, rig gear or pack up.

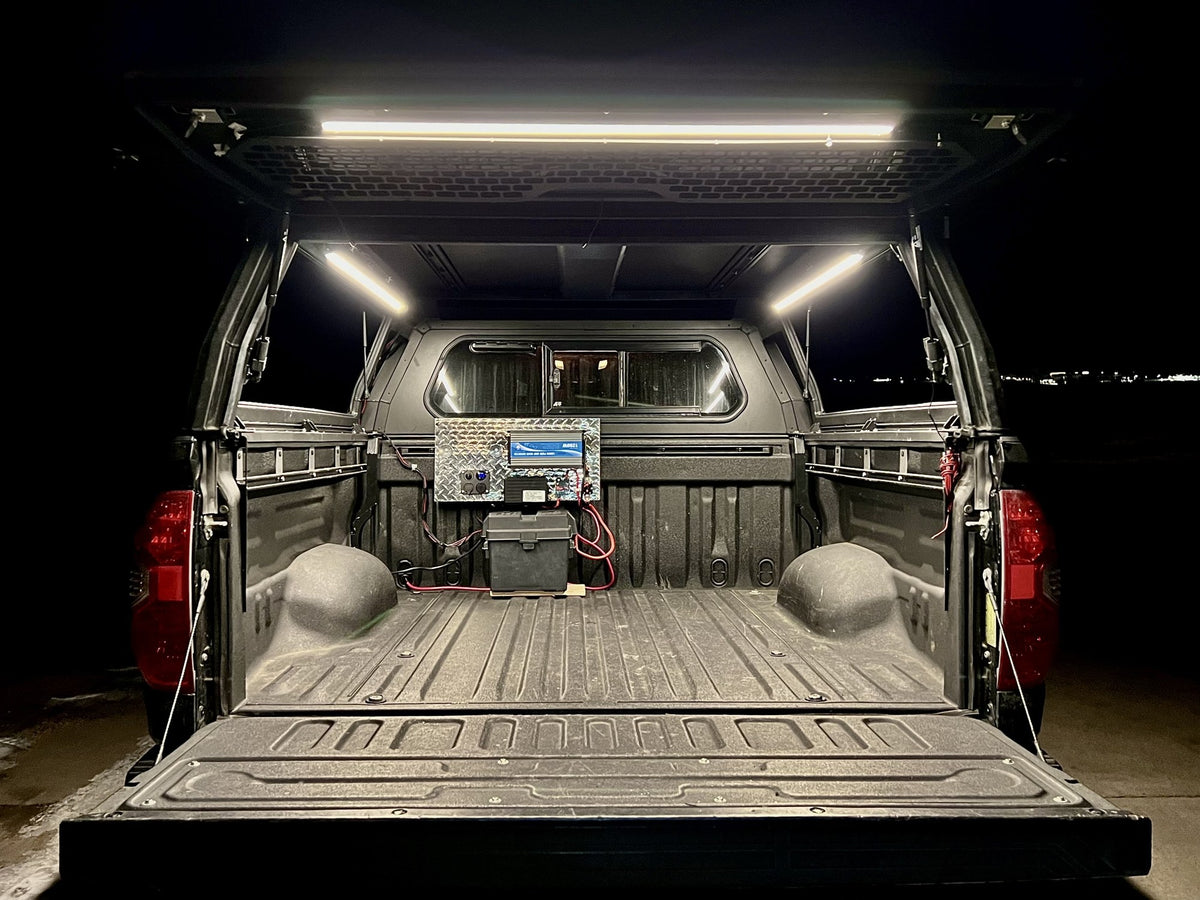

Inside

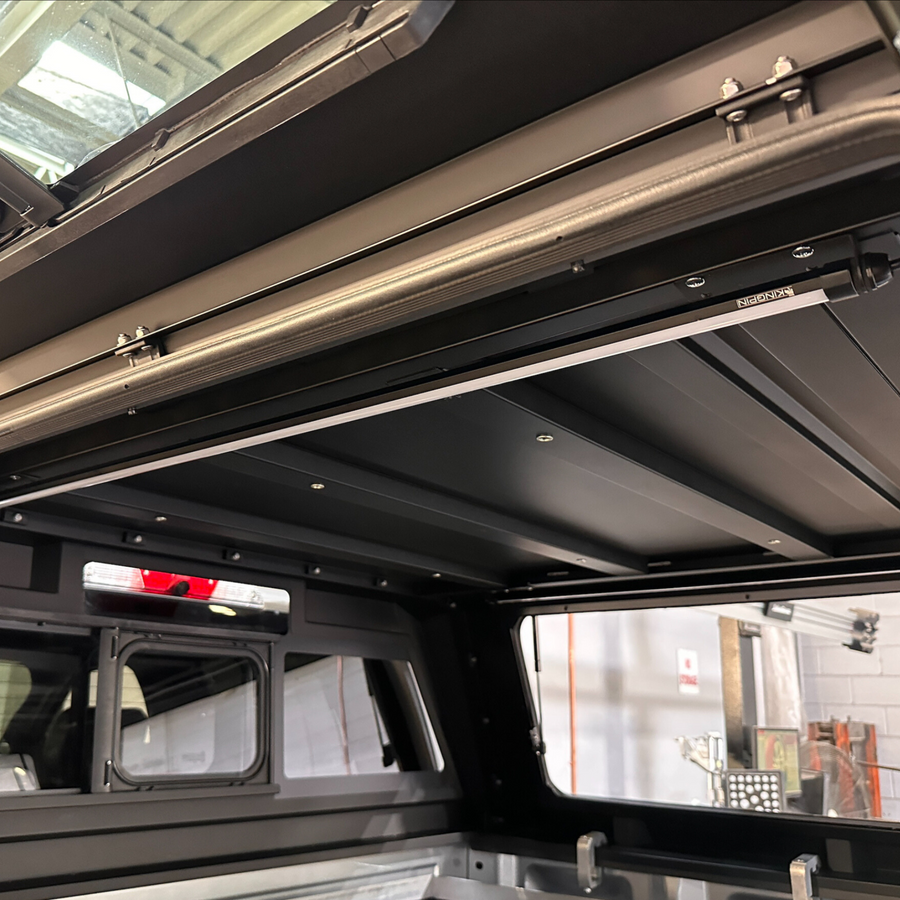

Two lights on the ceiling or sides, on the other dimmer. See everything in the bed.
Each zone, its own dimmer:Light the tailgate without lighting up the whole bed.

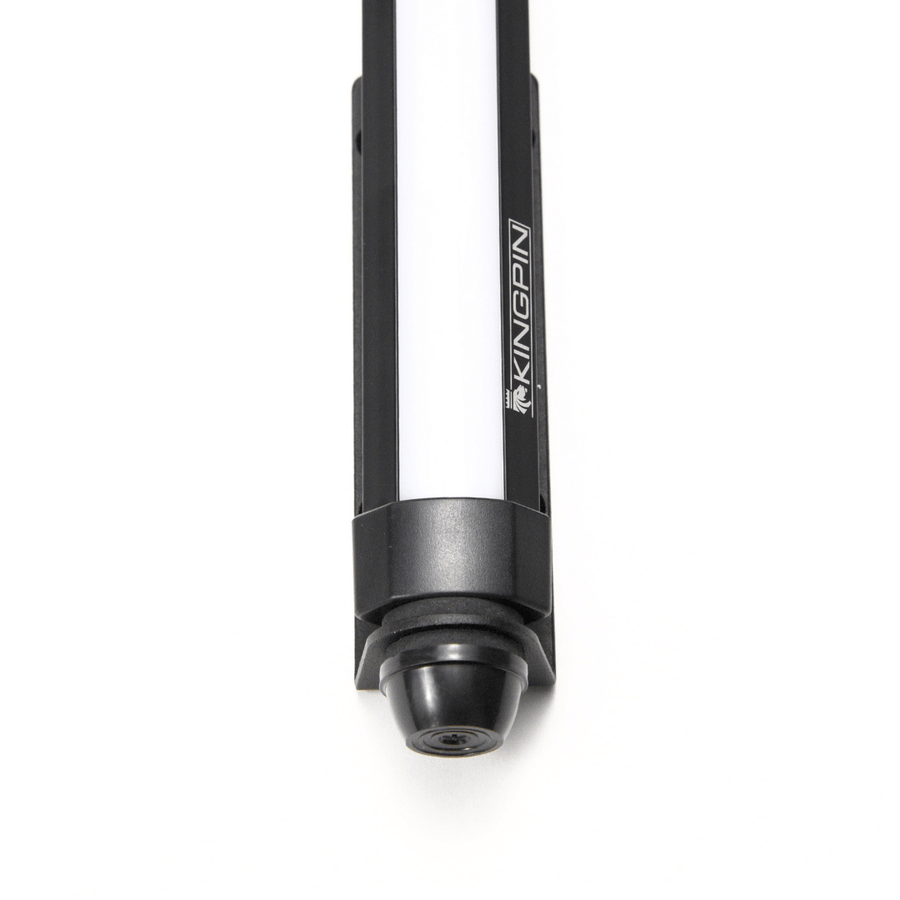

Slim, simple, tough
The first light we ever made, and still the workhorse. The rotation is built into the light, so there's nothing extra to buy or bolt on.
- Turns 180° by hand and stays where you aim it.
- Slim, low profile that stays out of the way.
- A slightly narrower beam than the F-Series, so less light spills where you don't want it.
“I work out of the back of my truck on a daily. The swivel for this light is exactly what I needed. It looks good and does exactly what you needed to.”
“I have 2 of the 40” light bars and they’re perfect paired with the dimmer switches. Super bright, durable, and a breeze to install.”
“Super easy install and straight forward. I really like the color temperature of these lights, not too cool or warm. The dimmer switch will be great for camping! Another upgrade to my First Gen Tundra. Customer service was top notch too!”
Turn on your tailgate
Rig gear, cook, or pack up in the dark.
Trailers & toy haulers
Mount it where you load and unload.
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| Lights | 3× V-Series 40", white 1.4 amps each at full brightness |
| Zones | 2, each with its own dimmer |
| Switches | 2× Touch Dimmer · 3 amps max each · inside only |
| Rotation | 180°, built into each light |
| Power | 12-Volt Power Supply Kit · 25 ft · 5A fuse |
| Wire | 30 ft Power Cable · 20 AWG |
| Draw | 4.2 amps total at full brightness |
| Rating | Lights weatherproof (IP54) · switches inside only |
| Warranty | 2 years from ship date |
How to install
- This shows one zone. Each zone wires the same way, to its own dimmer.
- Red to red, black to black. Where the lights meet, the 3 reds join and the 3 blacks join.
- The yellow block is the 5A fuse on the red wire.
- 1
Mount the lights: 1 on the tailgate or rear window, 2 on the ceiling or sides. Turn each to aim it.
- 2
Wire each zone to its own Touch Dimmer (lights on the crown end), and mount both dimmers inside.
- 3
Join the dimmers' power ends to the Power Supply Kit. Last, bolt it to the battery.
You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.
Full product description
This is the original Kingpin truck topper, canopy, camper shell, cap lighting kit. This kit uses Kingpin V-Series Single Color lights with built-in rotation.
Transform your truck with two zones of control, and single color, fully diffused, rotating lights. Control one rotating light on the tailgate or rear window and control two more lights separately on the ceiling or side doors!
Includes: (3x) V-Series 40" Lights, (2x) Touch Dimmer Switches, (1x) 20Ga Power Cable Spool and (1x) Power Supply Kit
Note: You will need to cut and connect a few wires to complete installation.
Good questions, short answers
Each zone has its own dimmer. Light just the tailgate, just the inside, or both, each at its own brightness.
Yes. Each dimmer runs up to 3 amps: 2× 40", 4× 28", 8× F-12 or 6× V-12. Add up the amps in each zone.
Wire strippers, connectors for 20 AWG wire, and wire routing supplies. They aren't in the kit.
The rotation is built in. Turn it by hand up to 180° and it stays where you aim it. No Search Mounts needed.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
The whole kit draws 4.2 amps at full brightness.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| Which truck bed kit? | Dual-color | Original |
| Lights | 3× F-40, white + red | 3× V-40, white |
| Zones | 2 | 2 |
| Switches | 2 Rotary, weatherproof | 2 Touch, inside |
| Rotation | Search Mounts on 1 light | Built into all 3 |
| Power + wire | Included | Included |
| Price | $539.99 | $439.99 |
