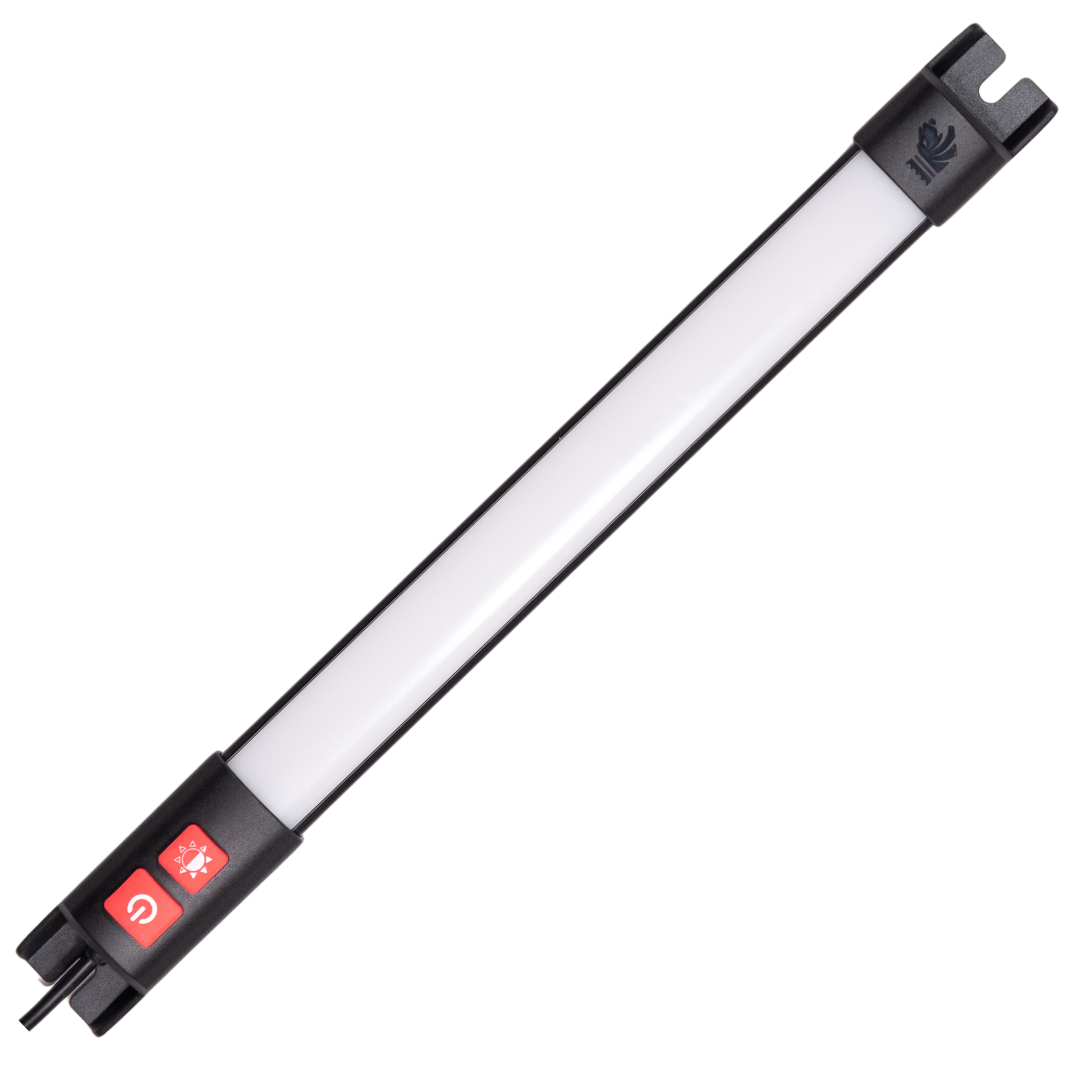

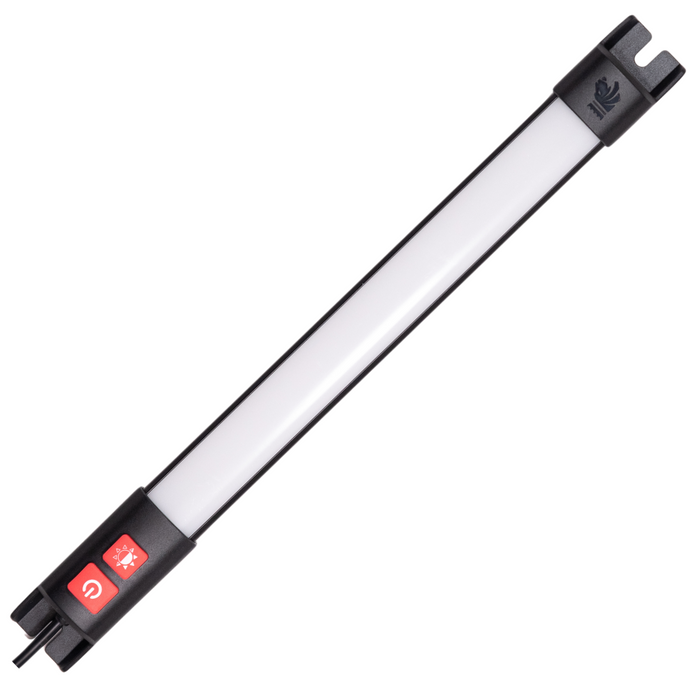

F-Series 12" Light, 10-Pack
- Bright white + red in one light
- Built-in buttons, no switch needed
- Weatherproof (IP54)
- Sips power: 0.3 amps at full brightness
in one light
+ color buttons
all conditions
warranty
What's in the box, and what you'll need
Ready to mount
- 10 F-Series 12" lights in a sub-pack of 10
- Each light in its own retail box, ready to sell
- Each with a 12" power lead (20 AWG), 3M VHB tape and screws

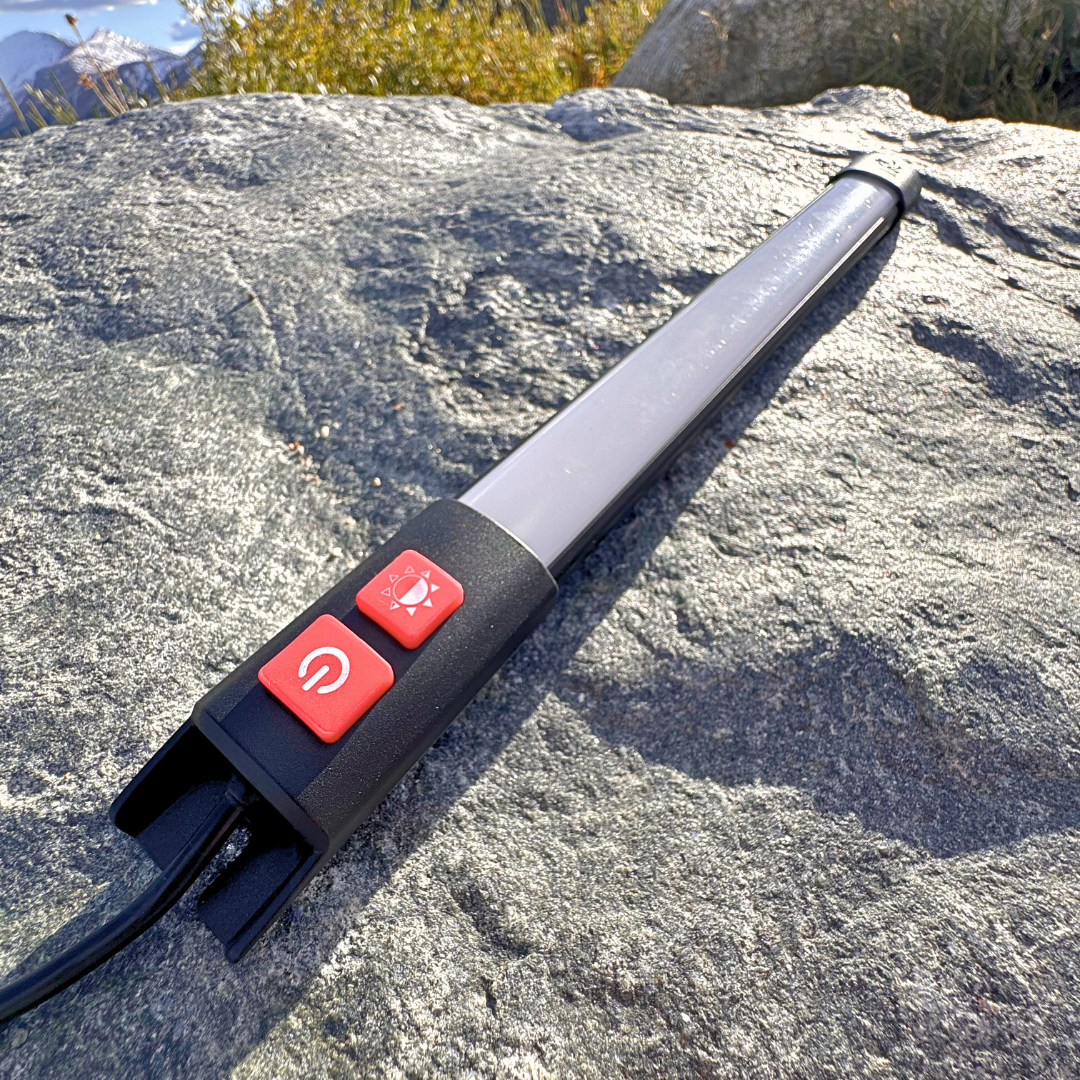

- On/off + color buttons built in, so no switch needed
Aim it & dim it
- Search Mounts, sold separately. Turn the light 360°.
- Rotary Dimmer, weatherproof. Up to 8× 12" per switch.
- Or get the F-12 Light Kit with it all.
12V DC
- Truck battery, camper battery, or a power station's 12V outlet
- 0.3 amps at full brightness. Run it for hours and still start up and leave.
- No wiring kit? Add the 12-Volt Power Supply Kit (25 ft, fused).
- You'll need wire strippers, connectors for 20 AWG wire, and wire routing supplies.
White
4000K neutral white. See your gear, load up, work late.
Red
Easy on your night vision. Camp, hunt, and late nights.
Your pick:Set white or red as the start-up color. Press power and it comes on in that color every time.
Bright, not blinding
Every Kingpin light has a thick, diffused lens. It spreads the light out into one smooth, even glow, and protects the light from hard knocks.
- No bright hot spots. The whole bar glows evenly.
- No harsh glare, so it's comfortable to look at, even up close.
- Soft, even light on your gear, with fewer hard shadows.
“I put 2 of the 12inch lights under my rtt to light up the truck bed area. Super bright lights. Love these things. Easy install, if you can run wire, you can install these.”
“Mounted the 12in lights and mounting brackets on the rear doors of my van. Gives a lot of extra light inside and outside the van. Well made quality lights. Easy to mount, and work great.”
“The installation for this light was extremely easy. I have a WildTop soft topper which has an 80/20 frame, this allowed for the use of t-nuts, making the installation seamless in almost any location I wanted. I am also using a motorcycle battery that is mounted in a Decked system for power. I have run this light for hours with no issues or worries about draining the battery. I would recommend this product to anyone looking for a great lighting solution almost anywhere!”
Turn on your tailgate
Rig gear, cook, or pack up in the dark. Switch to red when it's time to sit back.
Trailers & toy haulers
Mount it where you load and unload.
Work zone
Relied on by forest service pros, search and rescue teams, and vehicle outfitters.
The details
| In the box | 10 lights, each in its own retail box Packed together in a sub-pack of 10 |
| Size | 12" L × 1.13" W × 0.85" H On Search Mounts: about 1" longer and 1.375" tall |
| Power | 12V DC · 0.3 amps / 4 W at full brightness |
| Color | 4000K neutral white + red |
| Controls | Built-in on/off + color buttons · dims with any Kingpin dimmer |
| Lead | 12" · 20 AWG |
| Rating | Weatherproof (IP54) |
| Build | Extruded aluminum body · polycarbonate lens · UV-stable end caps |
| Mounting | 3M VHB tape and screws included (use either) · Search Mounts sold separately |
| Warranty | 2 years from ship date |
How to wire it
- Every cable has 2 wires. Connect red to red and black to black.
- Where the lights meet, the 3 reds join and the 3 blacks join.
- The yellow block is the 5A fuse on the red wire.
Full product description
The Kingpin F-Series light is the most versatile truck, trailer, and camper LED light on the market. The bright and efficient dual color electronics are protected by an extra thick industry leading chassis and lens design.
Mount them anywhere you can supply them with 12-volt DC power.
(This is the 10-Pack SKU)
Good questions, short answers
Up to 2× 40", 4× 28" or 8× 12" lights per switch. Each switch handles 3 amps, so add up the amps: F-40 is 1.1, F-28 is 0.7, F-12 is 0.3.
Yes. Kingpin lights are a universal fit, and they mount inside or outside (weatherproof, IP54). Each one comes with 3M VHB tape and screws. Measure the spot first. F-Series lights are true to length: the 12" light is 12" from end to end. The screw holes sit about ¼" to ⅜" in from each end. On Search Mounts, each bracket is 4" long, and the light is about 1" longer and 1.375" tall.
No. A thick, diffused lens spreads the light evenly, so there are no bright hot spots and no harsh glare. It's easy to work under and easy to be around at camp.
It's very efficient: 0.3 amps at full brightness. Run it for hours off your starting battery and still start up and leave.
Yes. It's weatherproof (IP54): dust-protected and splash-proof from any direction. Don't submerge it.
The light comes with 3M VHB tape and screws, so you can use either one. Search Mounts (360° rotation) are sold separately. Add them above, or get the F-Series 12" Light Kit.
No. Tape and screws come in the box. The 3M VHB tape holds on glass, topper doors and smooth panels if you prep the spot: clean it, scuff it lightly, wipe it with rubbing alcohol, then wipe on 3M Primer 94. Most toppers also have a reinforced ceiling for mounting lights. Carpet-lined caps have plywood under the carpet, so use the screws there.
No. On F-Series lights, color is set on the light. Turn the light on and pick white or red with its buttons. The dimmer then turns it on, off and dims it in that color. To switch colors, press the button on the light.
Any 12V DC source works, like a power station's 12V outlet. Most USB ports are 5V, so they won't run the light. Some higher-power USB ports may work, but we don't recommend it.
2 years from the ship date. Send a photo or video of the install and the issue, and we'll replace it or credit you.
More wiring questions? See the full wiring guide
Finish the setup
| Compare lengths | 12" | 28" | 40" |
| Size (L × W × H) | 12" × 1.13" × 0.85" | 28" × 1.13" × 0.85" | 40" × 1.13" × 0.85" |
| Best for | Cabs, doors, small boxes | Mid beds, shells | Full beds, hatches, trailers |
| Power | 0.3 amps | 0.7 amps | 1.1 amps |
| Per switch | up to 8 | up to 4 | up to 2 |
| Price | $74.99 | $99.99 | $129.99 |
